Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

21 part groups · 12 illustrations

Illustrations

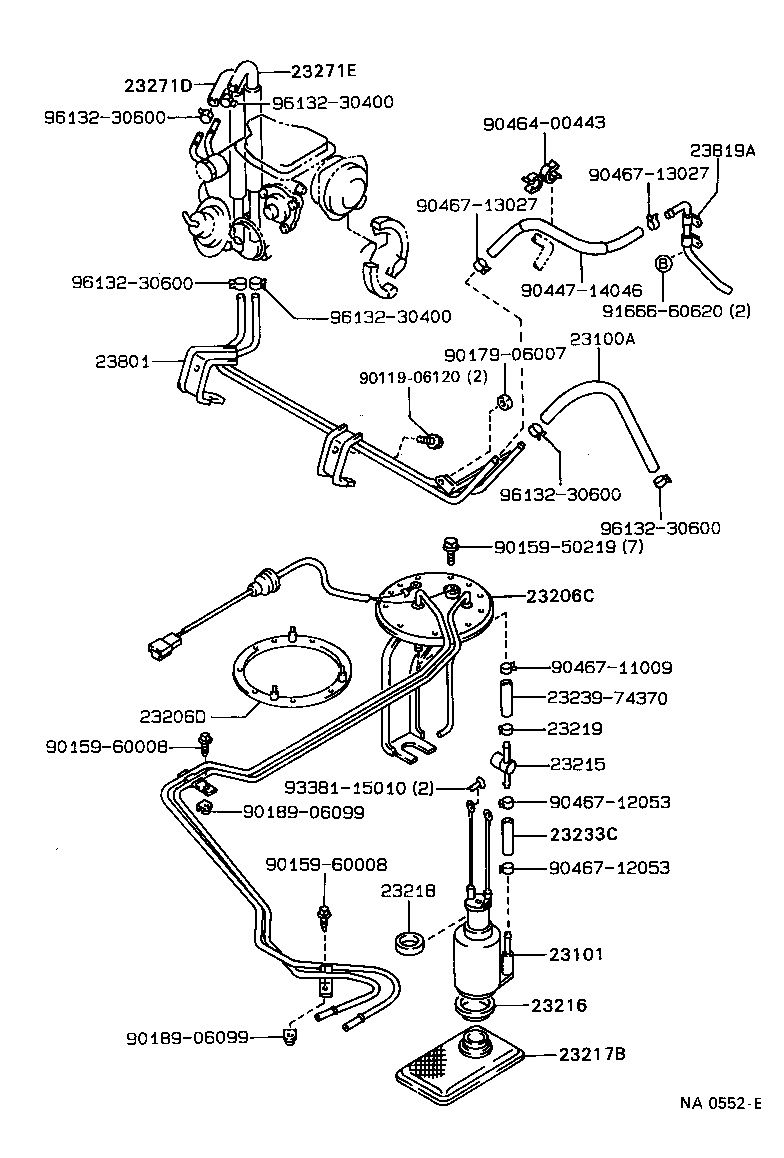

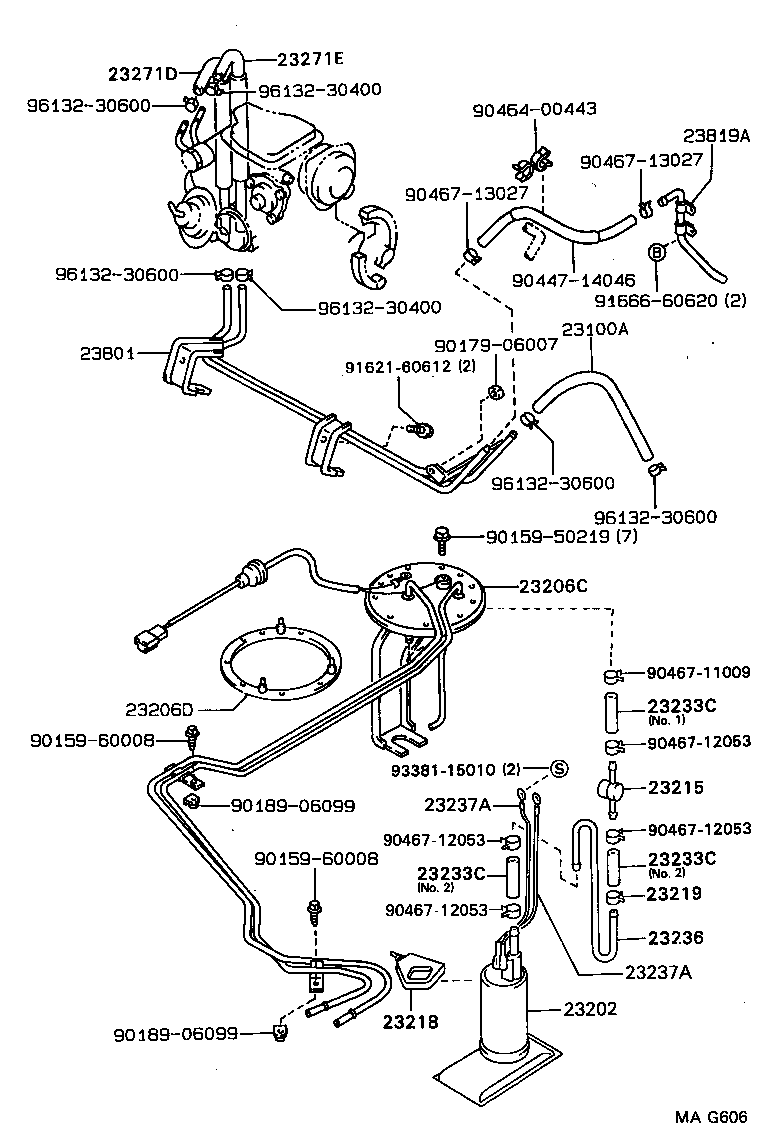

Figure NA0167 NA0167 1987-12 → — Figure NA0167 NA0167 1987-12 → — Figure NA0552E NA0552E 1987-12 → 1989-12 Figure MAG606 MAG606 1989-12 → — Figure NA0167 NA0167 1987-12 → — Figure NA0552E NA0552E 1987-12 → 1989-12 Figure MAG606 MAG606 1989-12 → — Figure NA0167 NA0167 1987-12 → — Figure NA0552E NA0552E 1987-12 → 1989-12 Figure MAG606 MAG606 1989-12 → — Figure NA0552E NA0552E 1987-12 → 1989-12 Figure MAG606 MAG606 1989-12 → —

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100A Hose, Fuel
23100C Insulator, Fuel Pump
23100H Clip(FOR FUEL HOSE)
23101 Body Sub-assy, Fuel Pump
23202 Pump Kit, Fuel
23206C Bracket, Fuel Pump
23206D Gasket, Fuel Pump Bracket
23215 Valve, Relief
23216 Cover, Fuel Pump
23217B Filter Sub-assy, Fuel Pump
23218 Cushion, Rubber
23219 Clip, Hose
23233C Hose, Fuel Pump
23236 Tube, Fuel
23237A Wire Sub-assy, Lead
23271D Hose, Fuel, NO.1
23271E Hose, Fuel, NO.2
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801C Clip(FOR CARBURETOR FUEL HOSE)
23819A Pipe, Fuel Vapor Feed, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
