Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

7 part groups · 28 illustrations

Illustrations

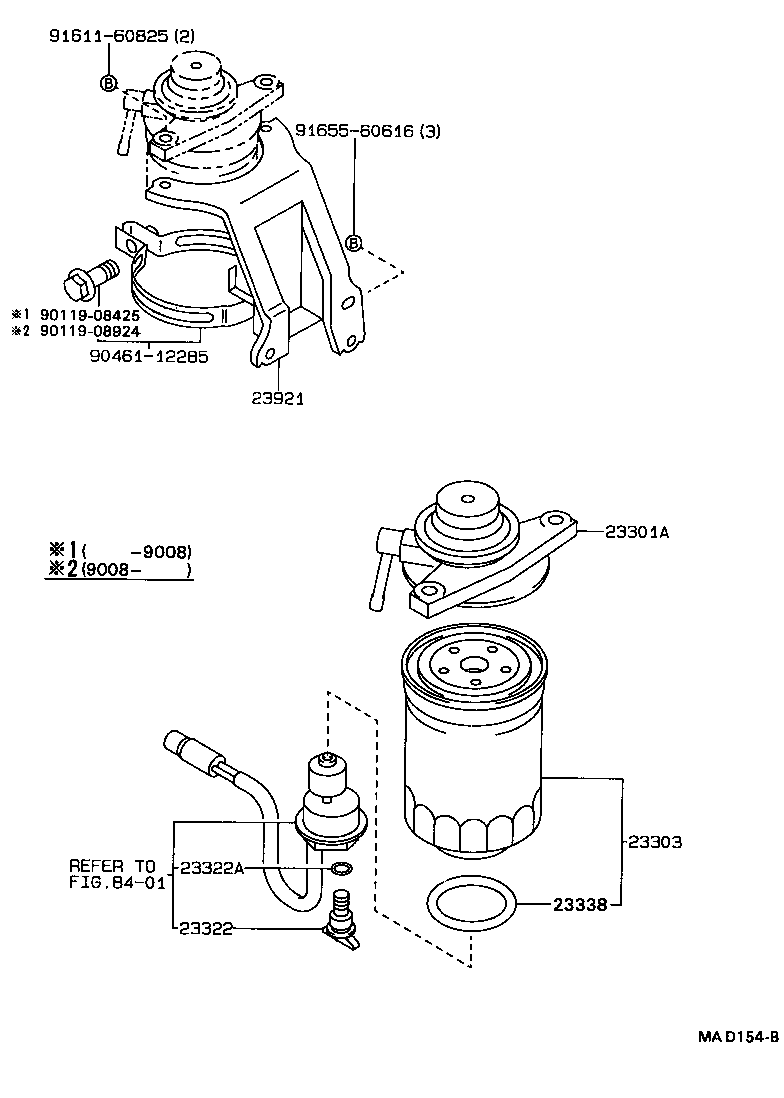

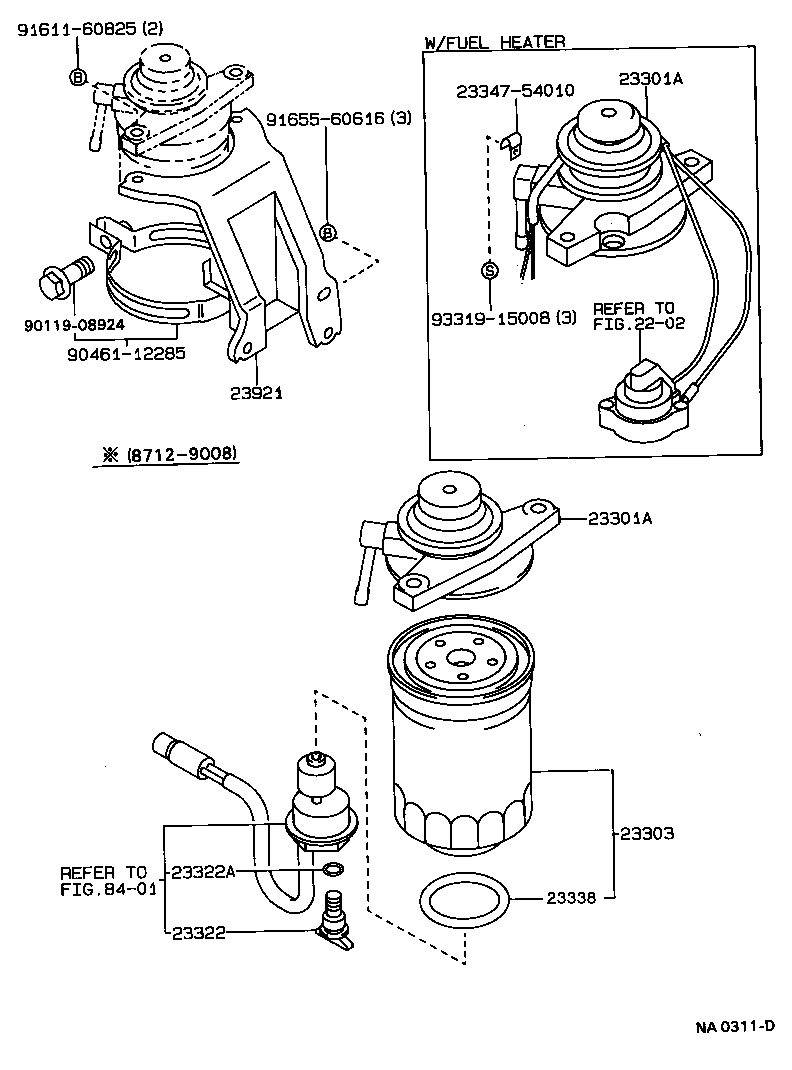

Figure NA0360 NA0360 1987-12 → — Figure NA0360 NA0360 1987-12 → — Figure NA0553B NA0553B 1987-12 → — Figure NA0311D NA0311D 1987-12 → 1989-11 Figure MAD154B MAD154B 1989-11 → — Figure NA0311D NA0311D 1987-12 → 1989-11 Figure MAD154B MAD154B 1989-11 → — Figure NA0360 NA0360 1987-12 → — Figure NA0553B NA0553B 1987-12 → — Figure NA0311D NA0311D 1987-12 → 1989-11 Figure MAD154B MAD154B 1989-11 → — Figure NA0360 NA0360 1987-12 → — Figure NA0553B NA0553B 1987-12 → — Figure NA0311D NA0311D 1987-12 → 1989-11 Figure MAD154B MAD154B 1989-11 → — Figure NA0360 NA0360 1987-12 → — Figure NA0553B NA0553B 1987-12 → — Figure NA0311D NA0311D 1987-12 → 1989-11 Figure MAD154B MAD154B 1989-11 → — Figure NA0360 NA0360 1987-12 → — Figure NA0553B NA0553B 1987-12 → — Figure NA0311D NA0311D 1987-12 → 1989-11 Figure MAD154B MAD154B 1989-11 → — Figure NA0360 NA0360 1987-12 → — Figure NA0553B NA0553B 1987-12 → — Figure NA0311D NA0311D 1987-12 → 1989-11 Figure MAD154B MAD154B 1989-11 → — Figure NA0553B NA0553B 1987-12 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23921 Support, Fuel Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
