Toyota Corona/Carina 2
1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General
Discontinued model
Data version 1993-07

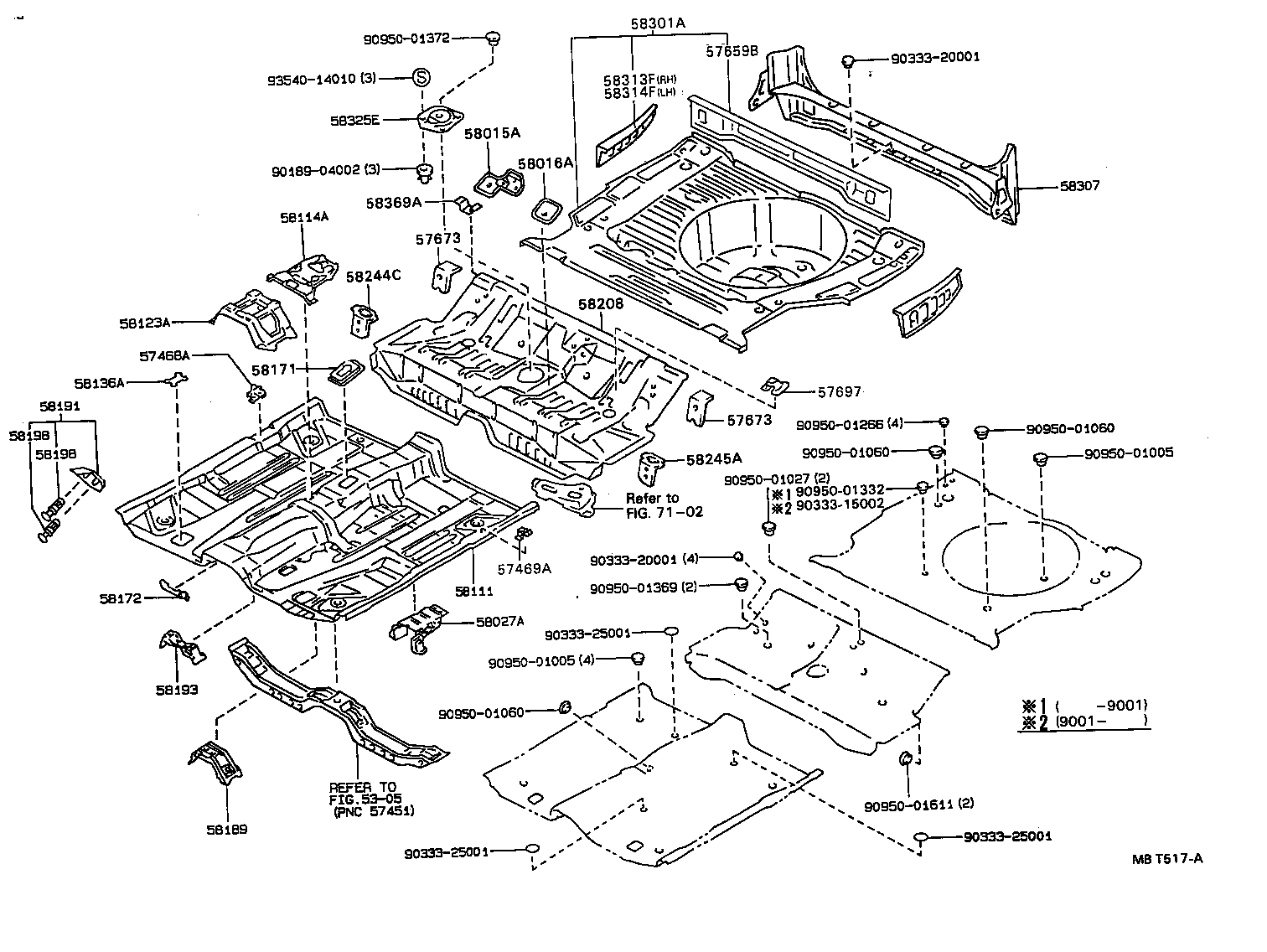

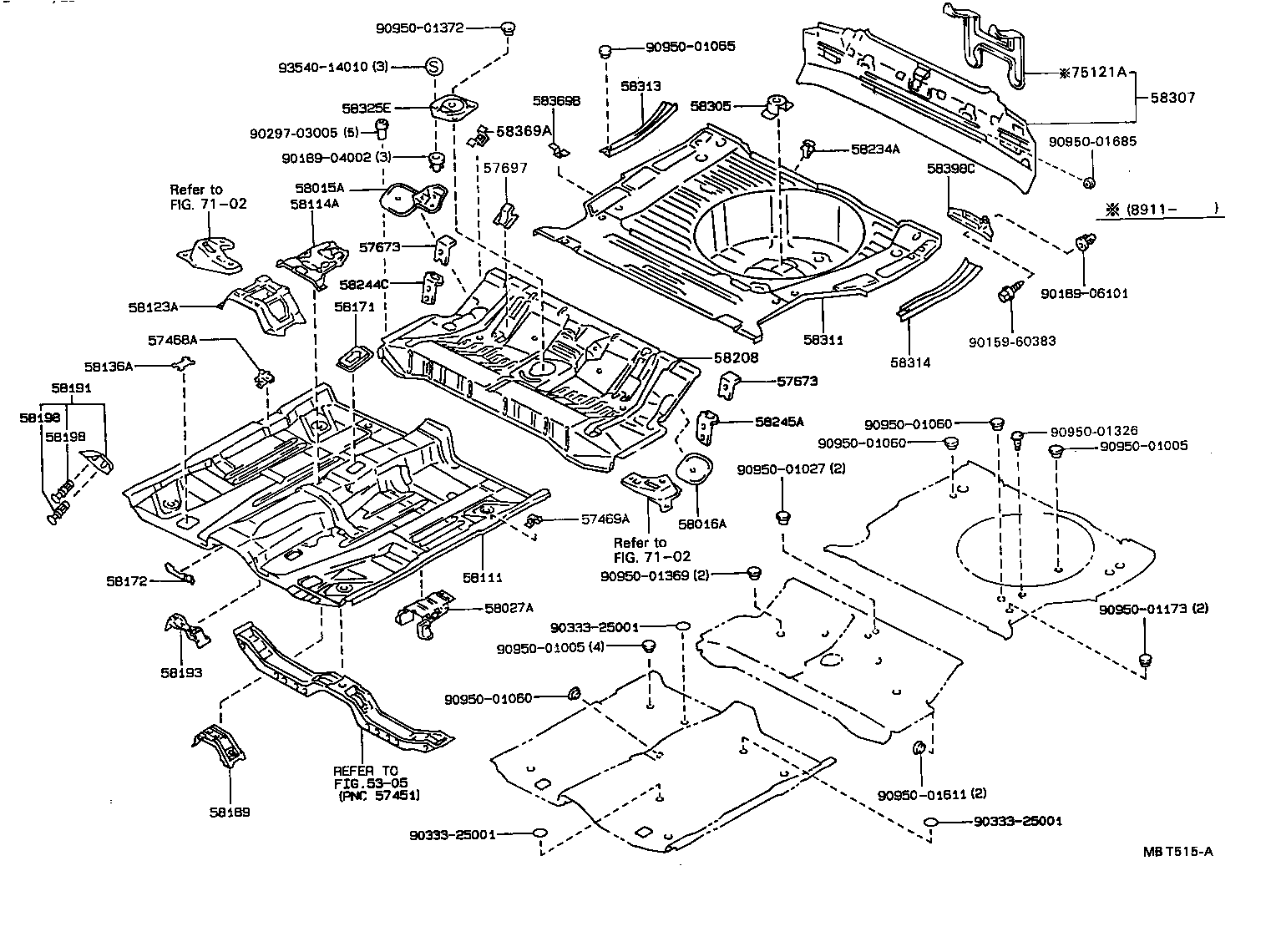

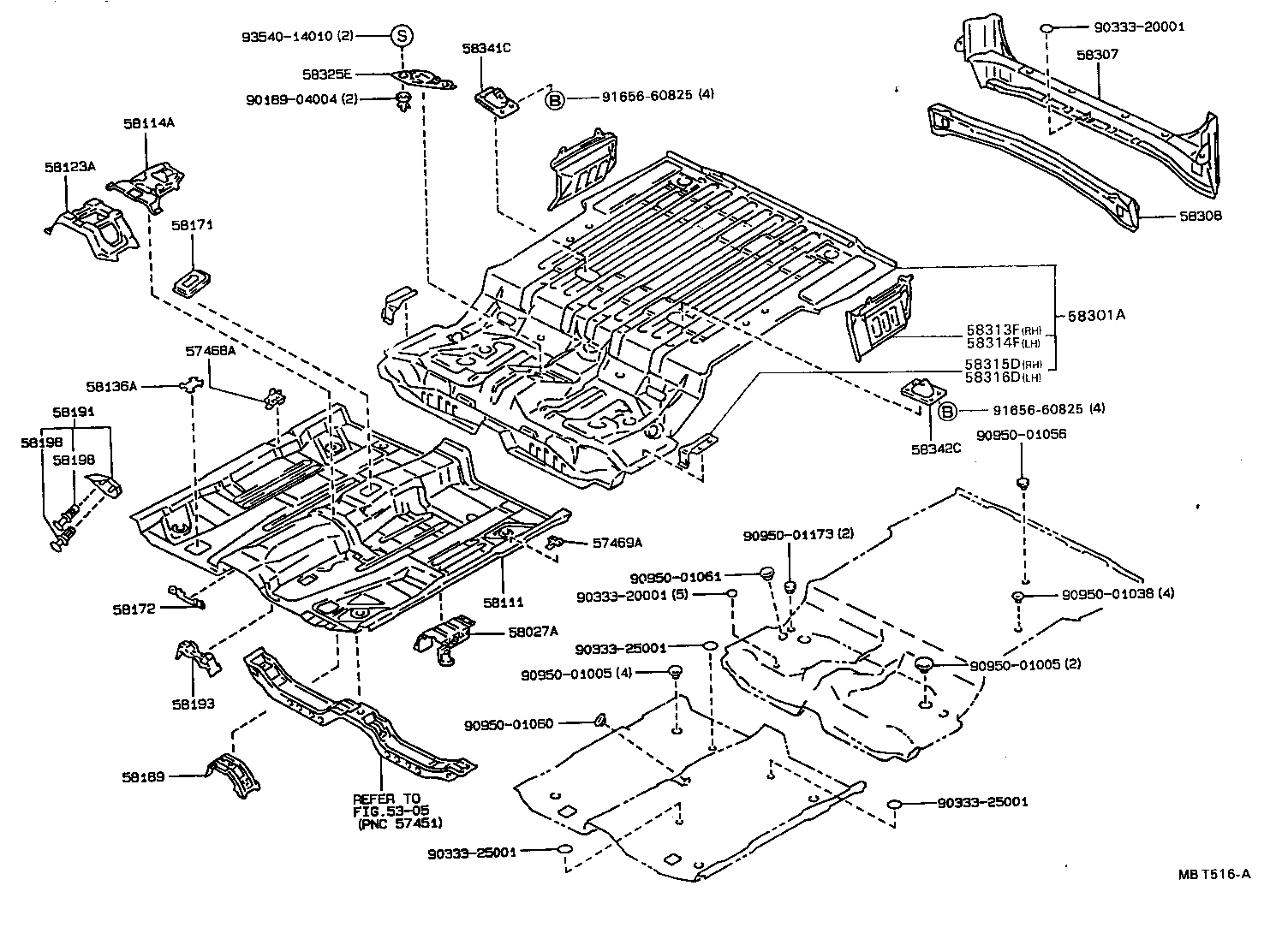

Floor Pan & Lower Back Panel
40 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 57468A | Bracket, Front Seat, Outside, Rear RH |
| 57469A | Bracket, Front Seat, Outside, Rear LH |
| 57659B | Member, Rear Floor Cross, Rear Inner |
| 57673 | Bracket, Rear Seatback Hinge Mounting |
| 57697 | Retainer, Rear Seat Cushion |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58016A | Reinforce Sub-assy, Belt Anchor, NO.3 LH |
| 58027A | Reinforce Sub-assy, Seat Belt Anchor |
| 58111 | Pan, Front Floor |
| 58114A | Reinforcement, Front Floor Panel |
| 58123A | Support, Shift & Select Lever |
| 58136A | Cover, Front Floor Service Hole |
| 58171 | Reinforcement, Parking Brake Base |
| 58172 | Bracket, Computer Mounting, NO.3 |
| 58189 | Reinforcement, Exhaust Pipe Clamp Bracket |
| 58191 | Footrest, Front Floor |
| 58193 | Bracket, Instrument Panel Brace Mounting |
| 58198 | Clip, Footrest |
| 58208 | Pan, Center Floor |
| 58234A | Bracket, Exhaust Pipe Mounting, Inner |
| 58244C | Bracket, Rear Seat Cushion Mounting, RH |
| 58245A | Bracket, Rear Seat Hinge, Center NO.1 |
| 58301A | Panel Sub-assy, Rear Floor |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58308 | Panel Sub-assy, Body Lower Back, Inner |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58315D | Extension, Rear Floor Pan, RH |
| 58316D | Extension, Rear Floor Pan, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58341C | Bracket, Rear Absorber Mounting, NO.1 RH |
| 58342C | Bracket, Rear Absorber Mounting, NO.1 LH |
| 58369A | Bracket, Fuel Tube, NO.3 |
| 58369B | Bracket, Fuel Tube, NO.3 |
| 58398C | Cover, Body Lower Back, LH |
| 75121A | Bracket, Rear License Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
