Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 2 illustrations

Illustrations

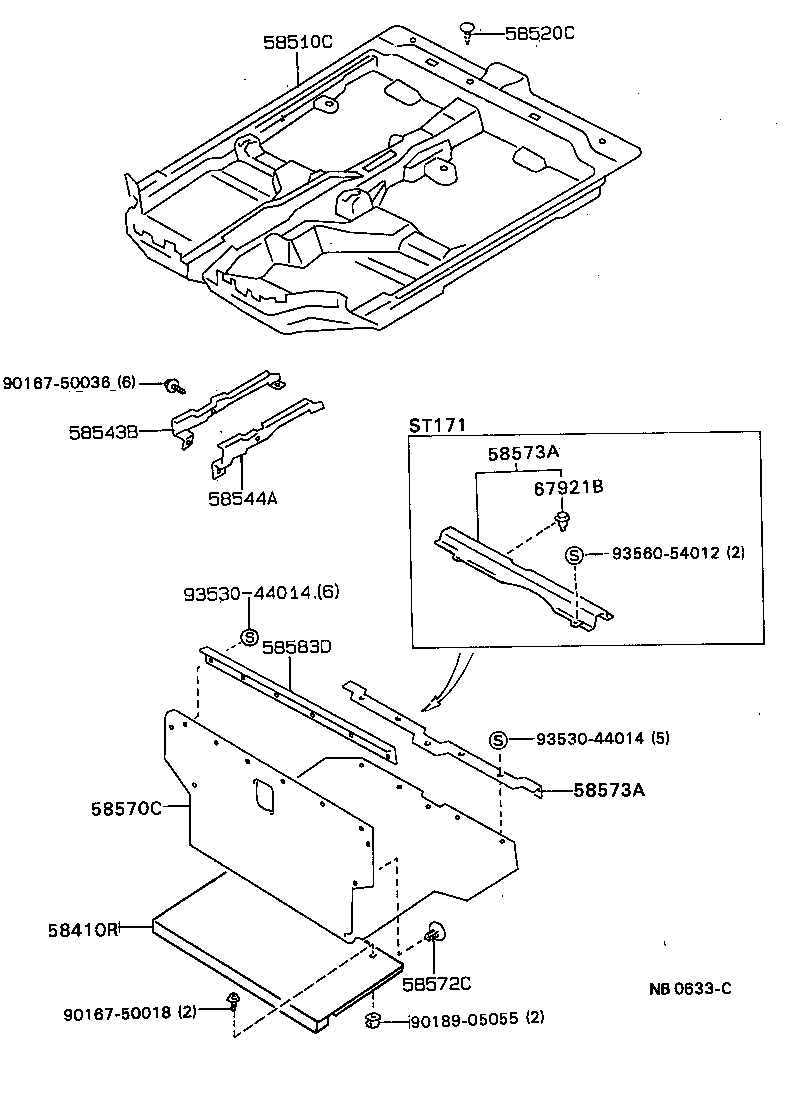

Figure MBS113A MBS113A 1987-12 → — Figure NB0633C NB0633C 1987-12 → —

Part groups

PNCDescription
58410R Board Assy, Deck
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58543B Bracket, Floor Carpet, RH
58544A Bracket, Floor Carpet, LH
58570C Carpet Assy, Rear Floor
58572C Clip, Rear Floor Mat Set
58573A Plate, Rear Floor Mat Support
58583D Plate, Rear Seatback Carpet Support
67921B Retainer, Rear Floor Mat Support
72681B Hook, Rear Seatback Lock, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
