Toyota Corona/Carina 2
1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General
Discontinued model
Data version 1993-07

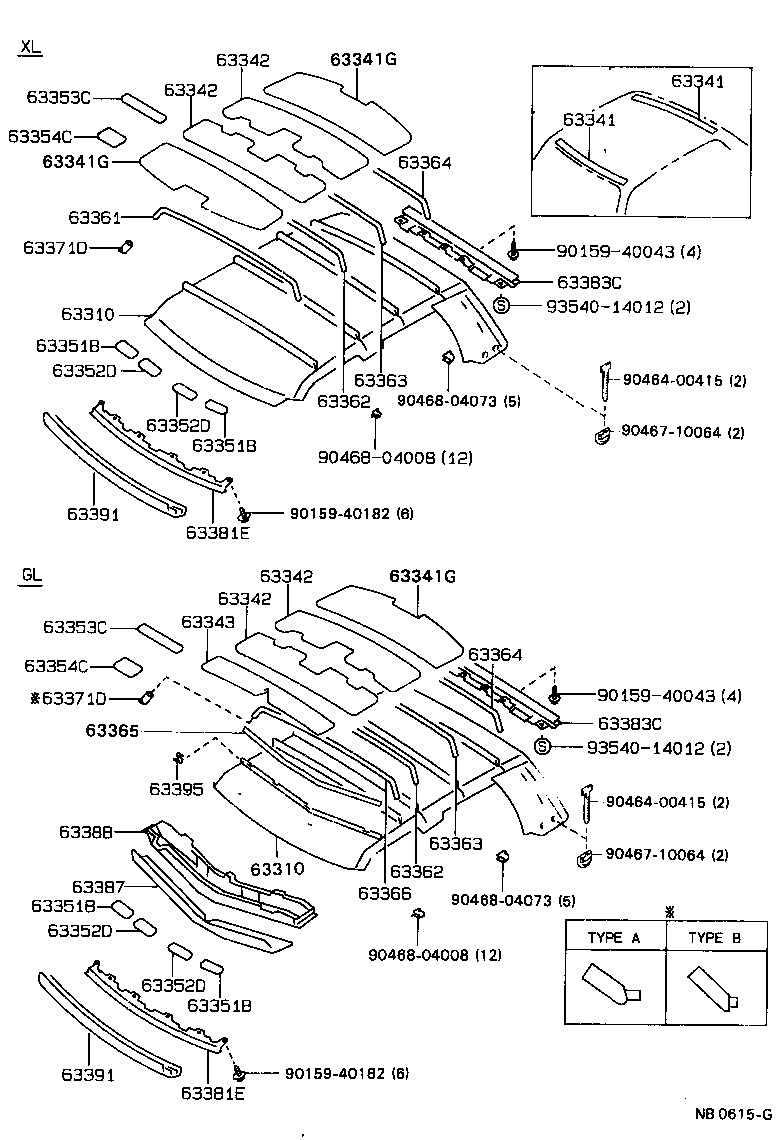

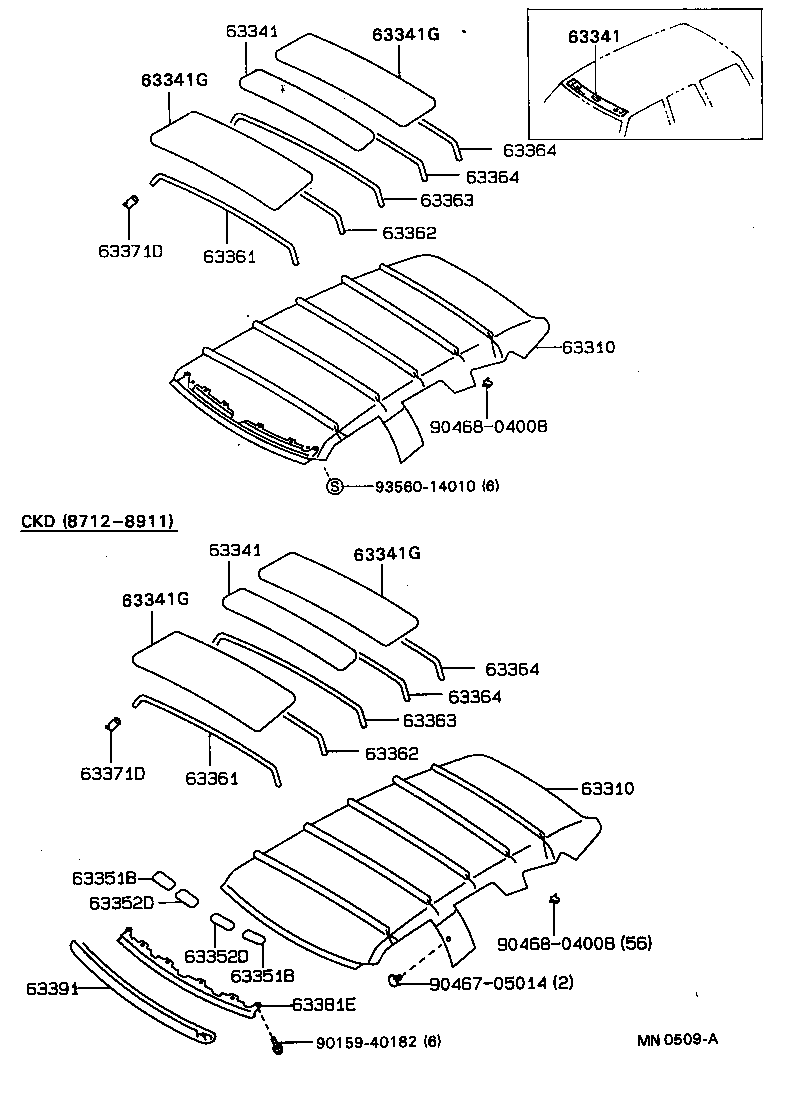

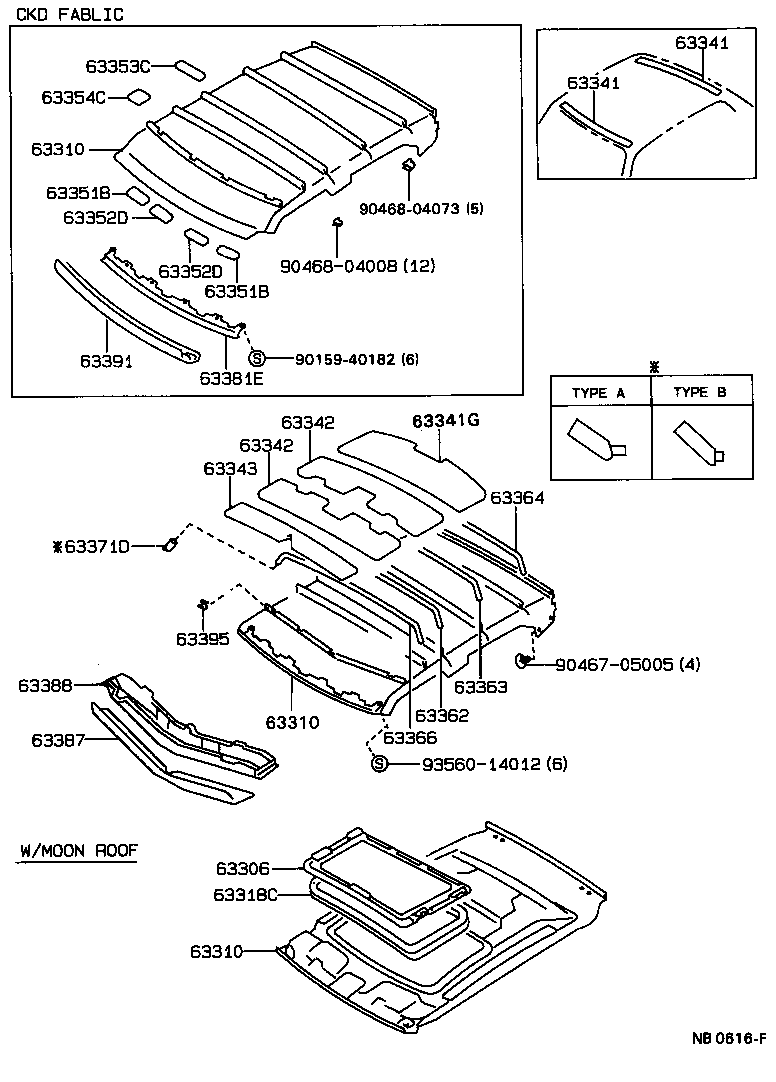

Roof Headlining & Silencer Pad
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63351B | Pad, Roof Headlining |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63353C | Pad, Roof Headlining, Center |
| 63354C | Pad, Roof Headlining Front Side |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63371D | Retainer, Roof Headlining Support |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63383C | Retainer, Roof Headlining Trim, Rear |
| 63387 | Pad, Roof Headlining Forming |
| 63388 | Frame, Roof Headlining Forming |
| 63391 | Trim, Roof Headlining, Front |
| 63395 | Clip, Roof Headlining Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
