Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 3 illustrations

Illustrations

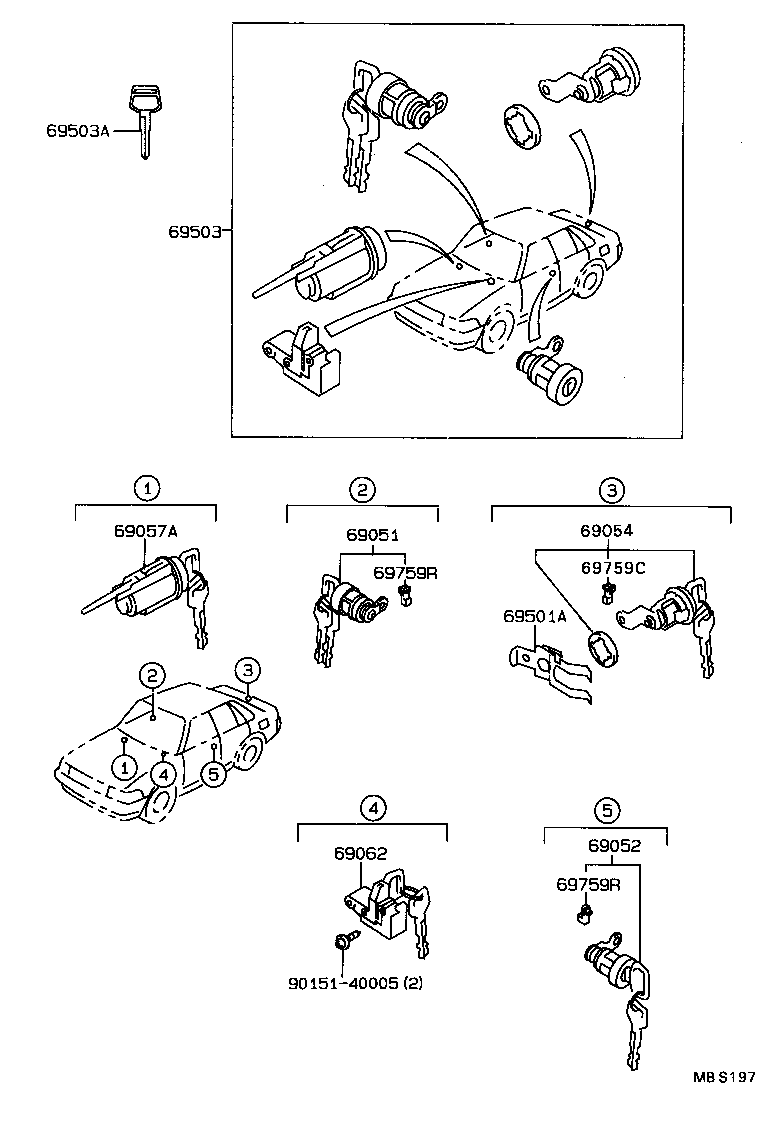

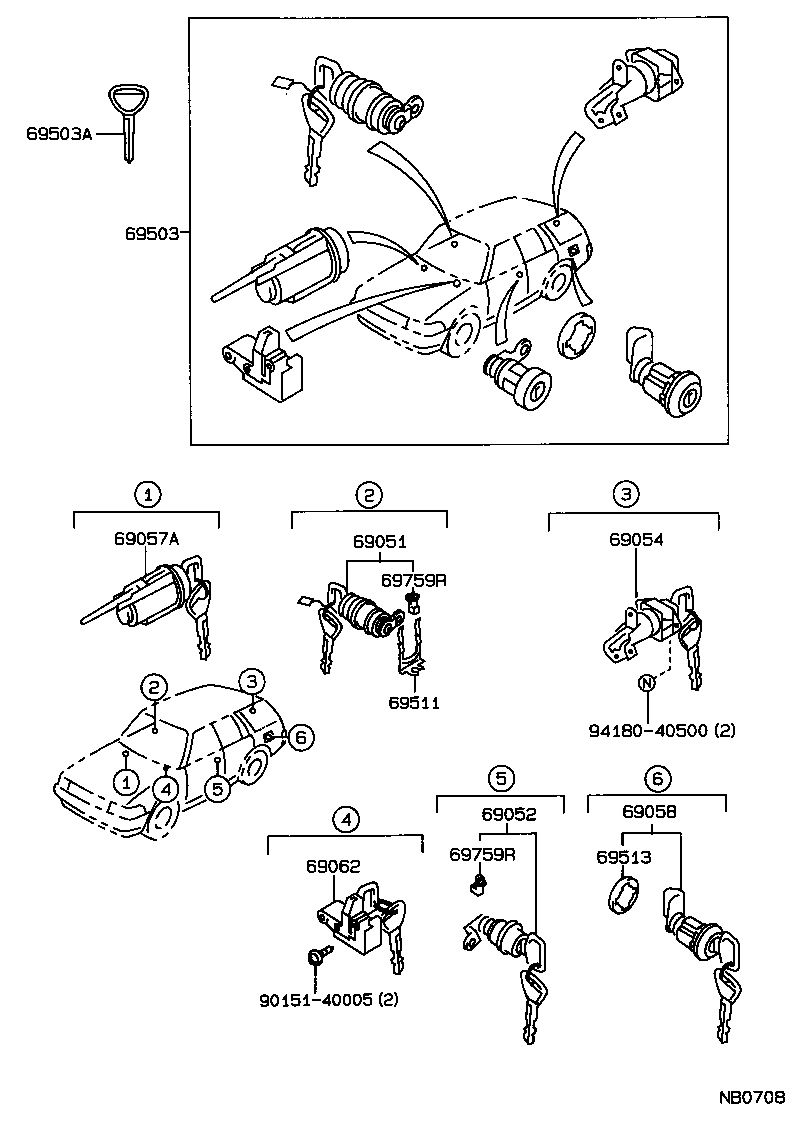

Figure MBT526 MBT526 1987-12 → — Figure MBS197 MBS197 1987-12 → — Figure NB0708 NB0708 1987-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69062 Cylinder & Key Set, Glove Compartment Lock
69501A Retainer Sub-assy, Back Door Cylinder
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69513 Pad, Fuel Filler Lid Lock Cylinder
69563A Pad, Luggage Compartment Door Lock Cylinder
69759C Snap, Back Door Lock Cylinder
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
