Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 4 illustrations

Illustrations

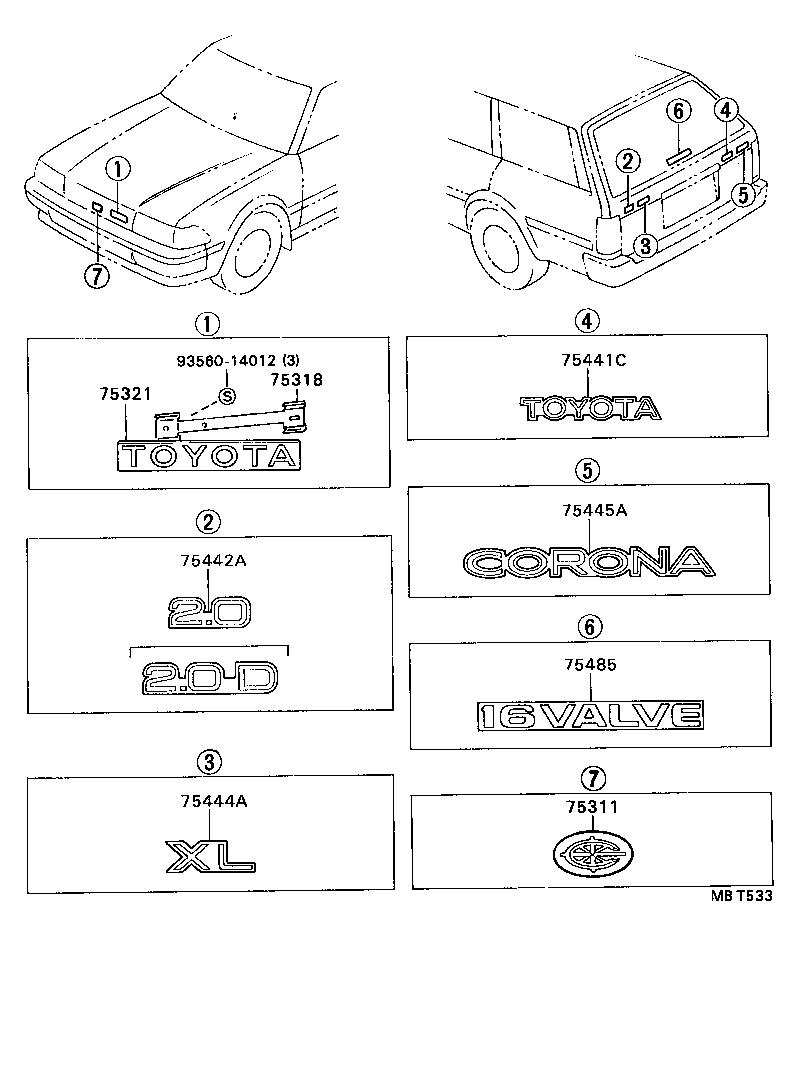

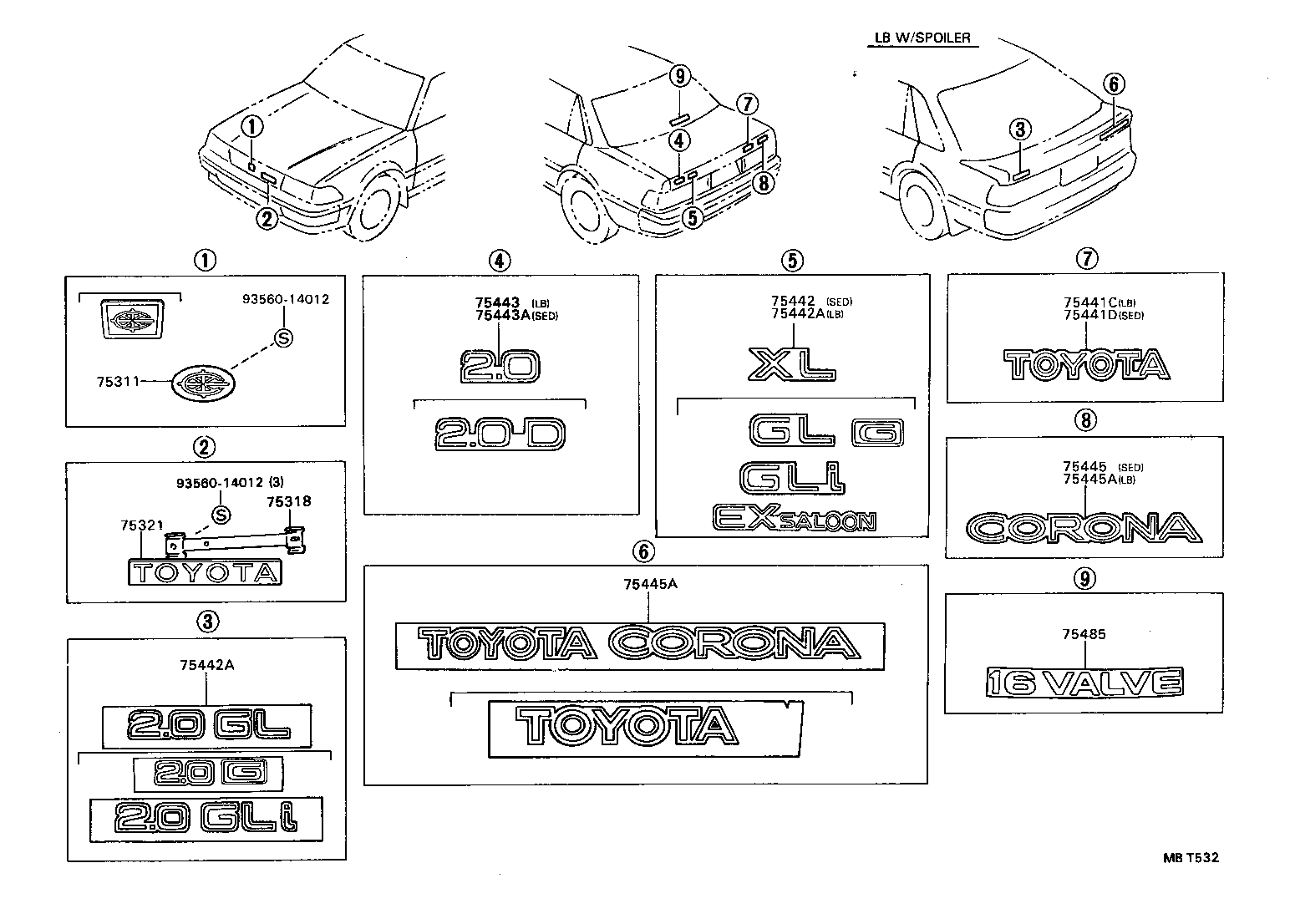

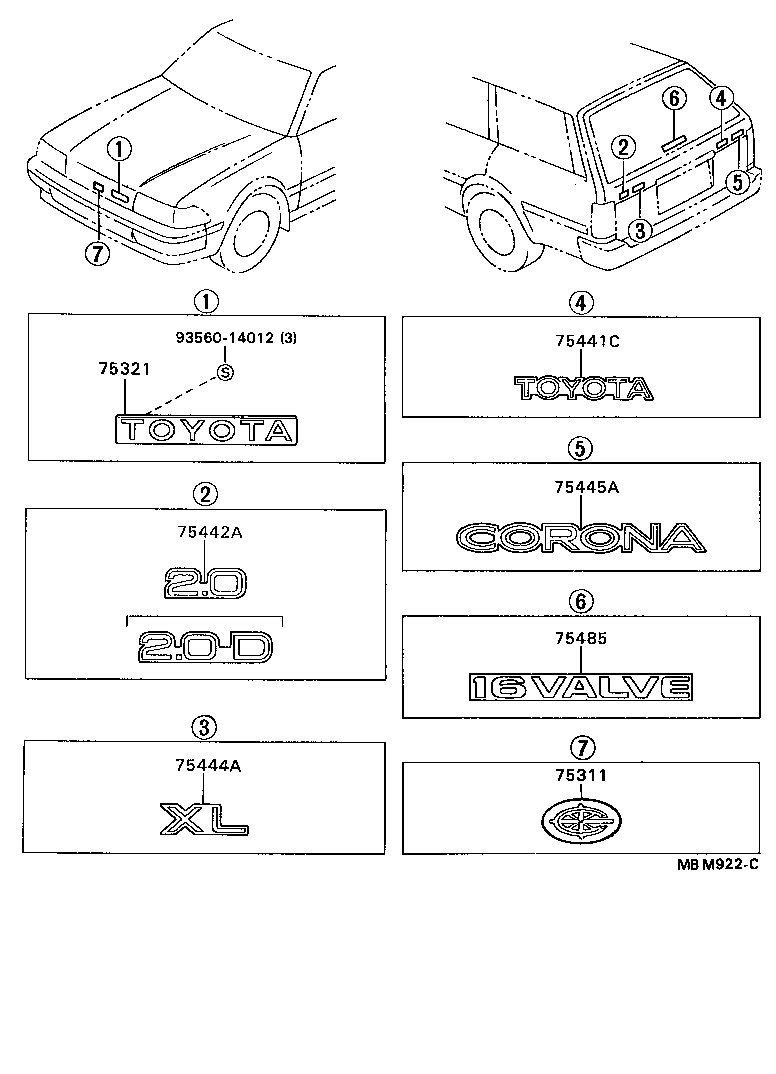

Figure MBM921A MBM921A 1987-12 → 1989-11 Figure MBT532 MBT532 1989-11 → — Figure MBM922C MBM922C 1987-12 → 1989-11 Figure MBT533 MBT533 1989-11 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75318 Retainer, Radiator Grille Emblem
75321 Plate, Radiator Grille OR Front Panel Name
75441C Plate, Back Door Name
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75443A Plate, Luggage Compartment Door, NO.3
75444A Plate, Back Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75445A Plate, Back Door Name, NO.5
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
