Back UP Lamp

9 part groups · 3 illustrations

Illustrations

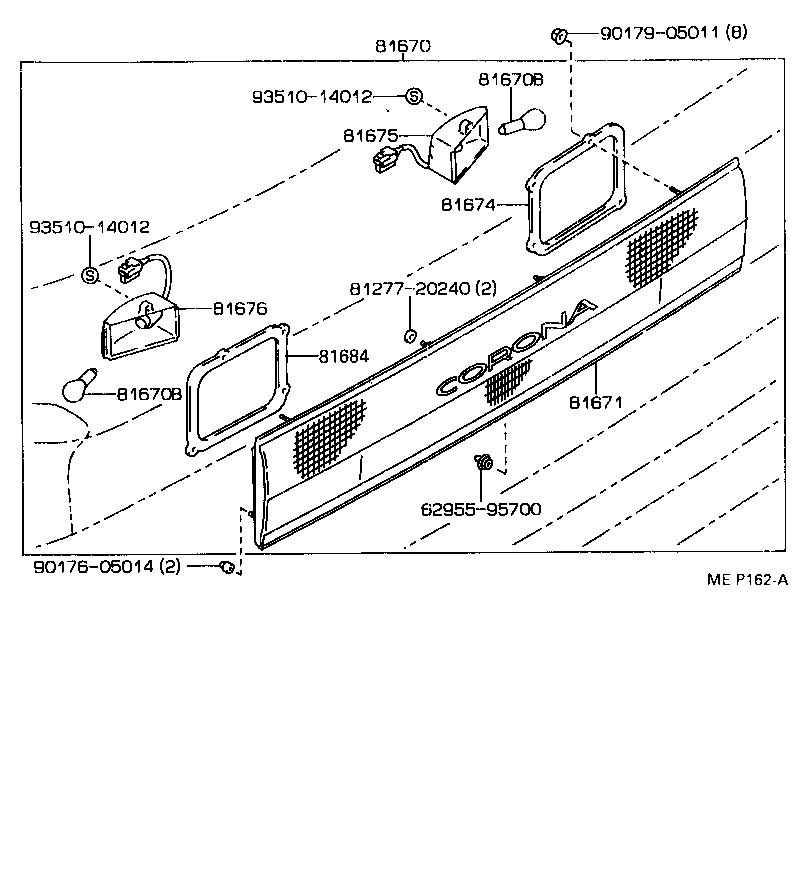

Figure NE5148B NE5148B 1987-12 → 1989-11 Figure NE5148B NE5148B 1989-11 → — Figure MEP162A MEP162A 1989-11 → —

Part groups

PNCDescription
81670 Lamp Assy, Back-up, RH
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81676 Rim, Back-up Lamp, RH
81680 Lamp Assy, Back UP, LH
81681 Lens, Back-up Lamp, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
