Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

41 part groups · 12 illustrations

Illustrations

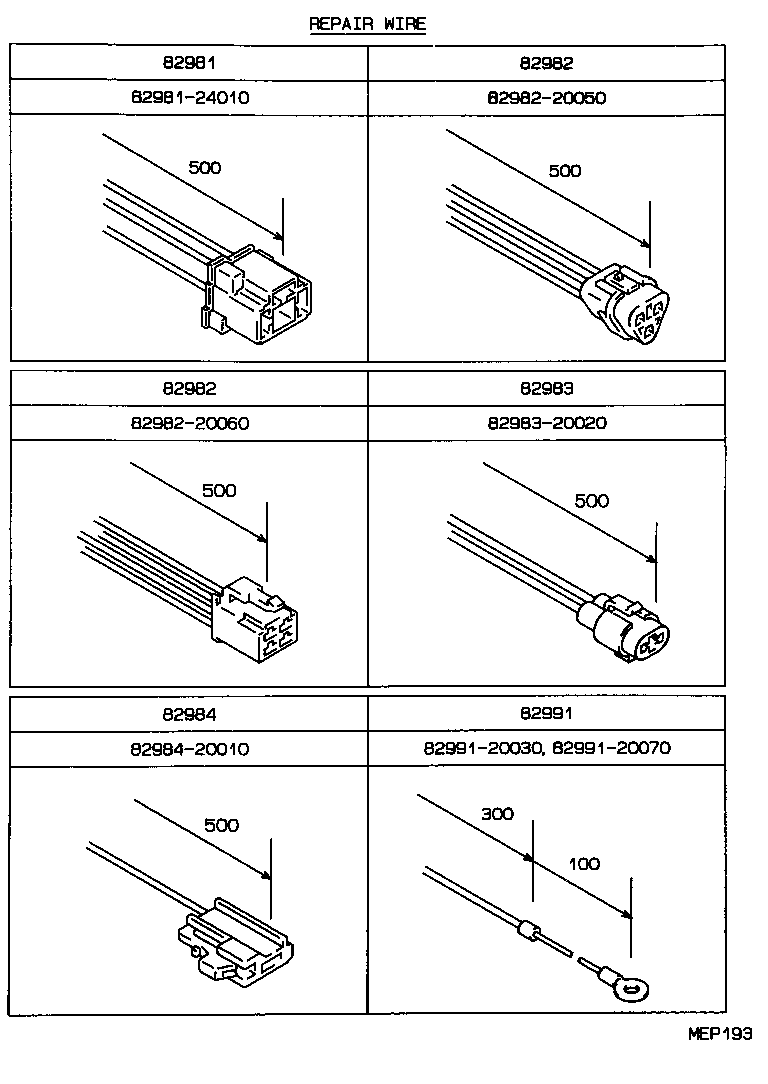

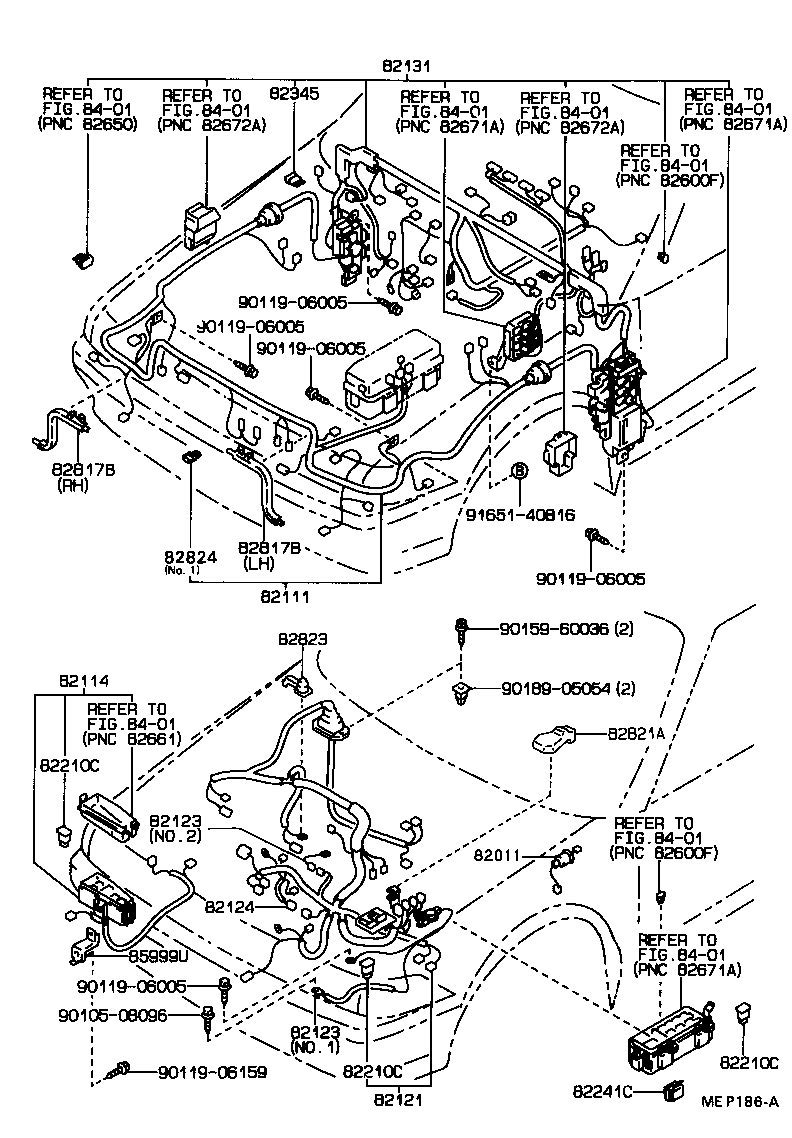

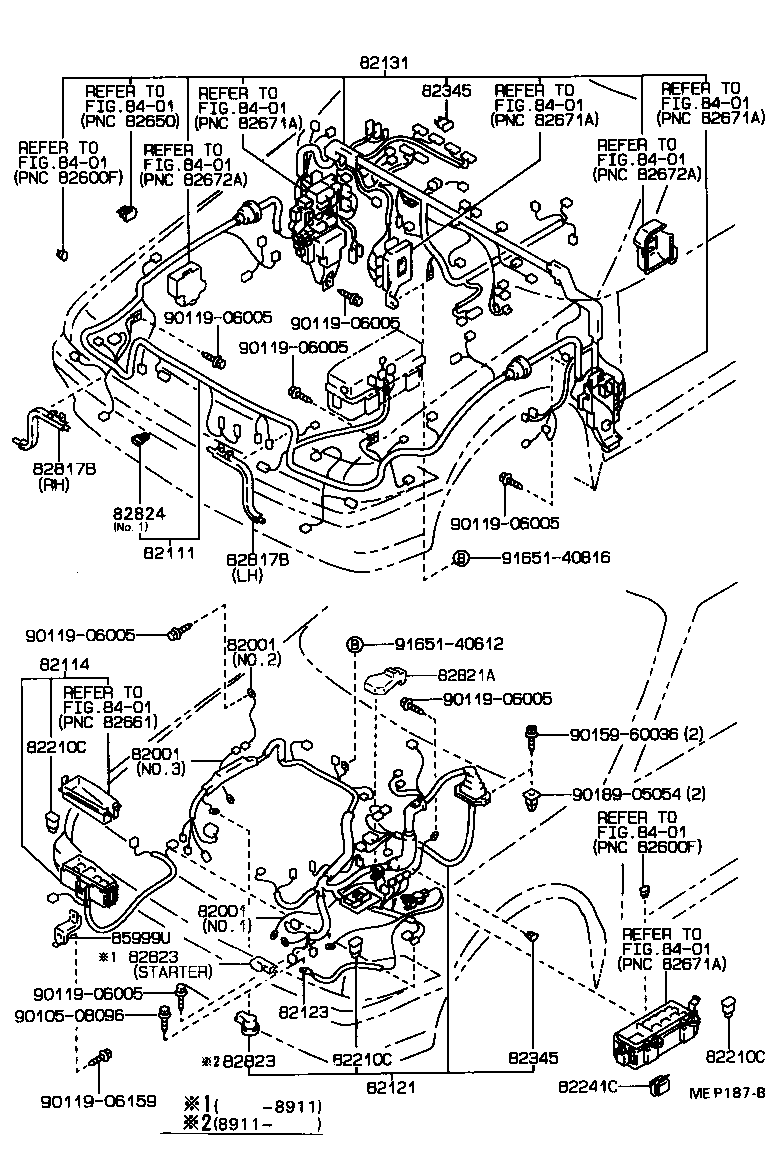

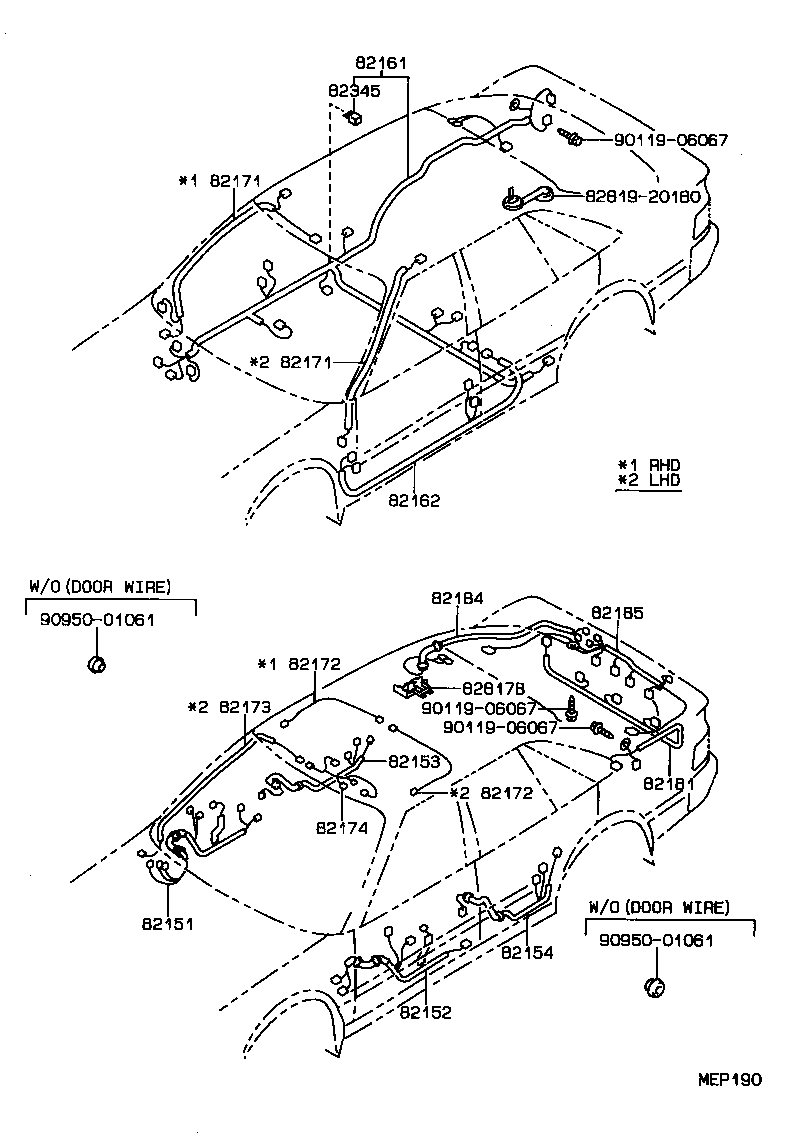

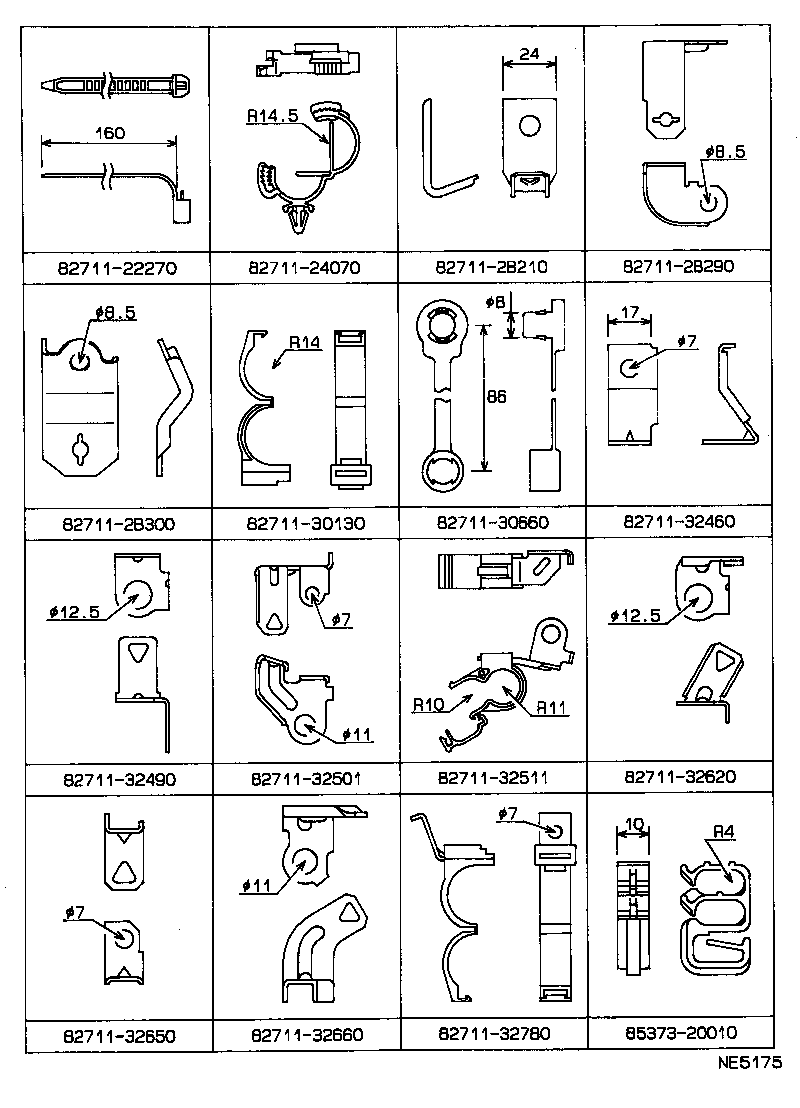

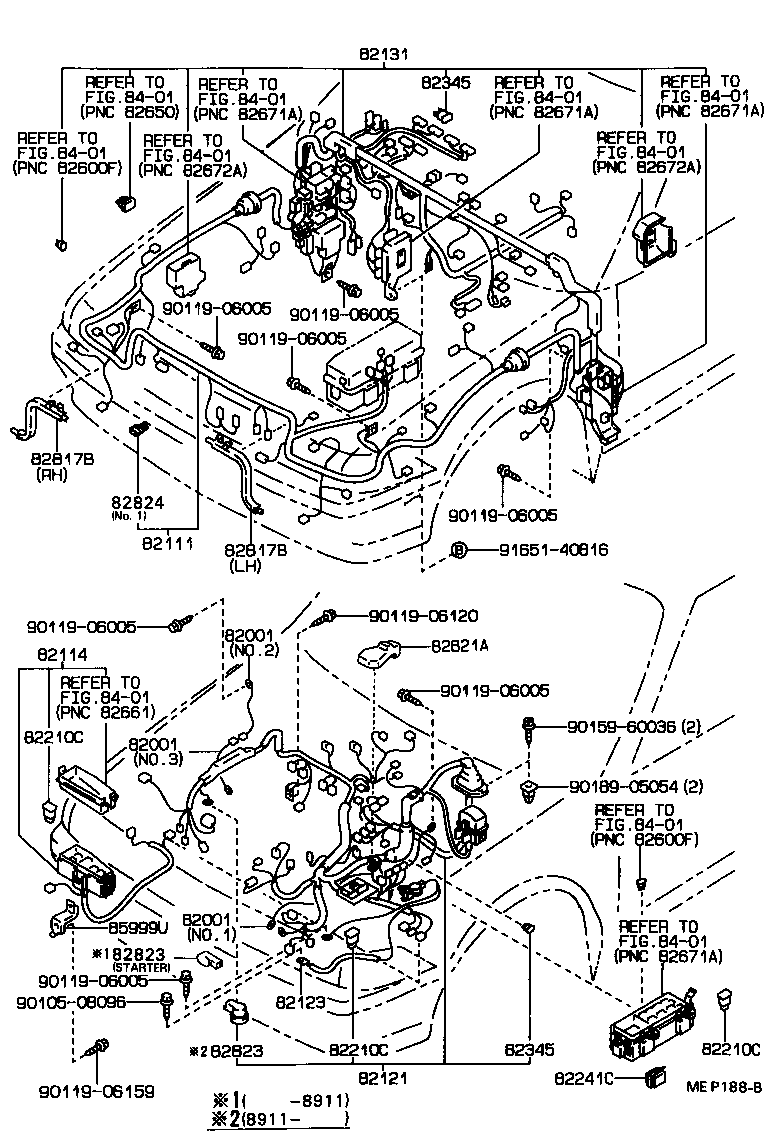

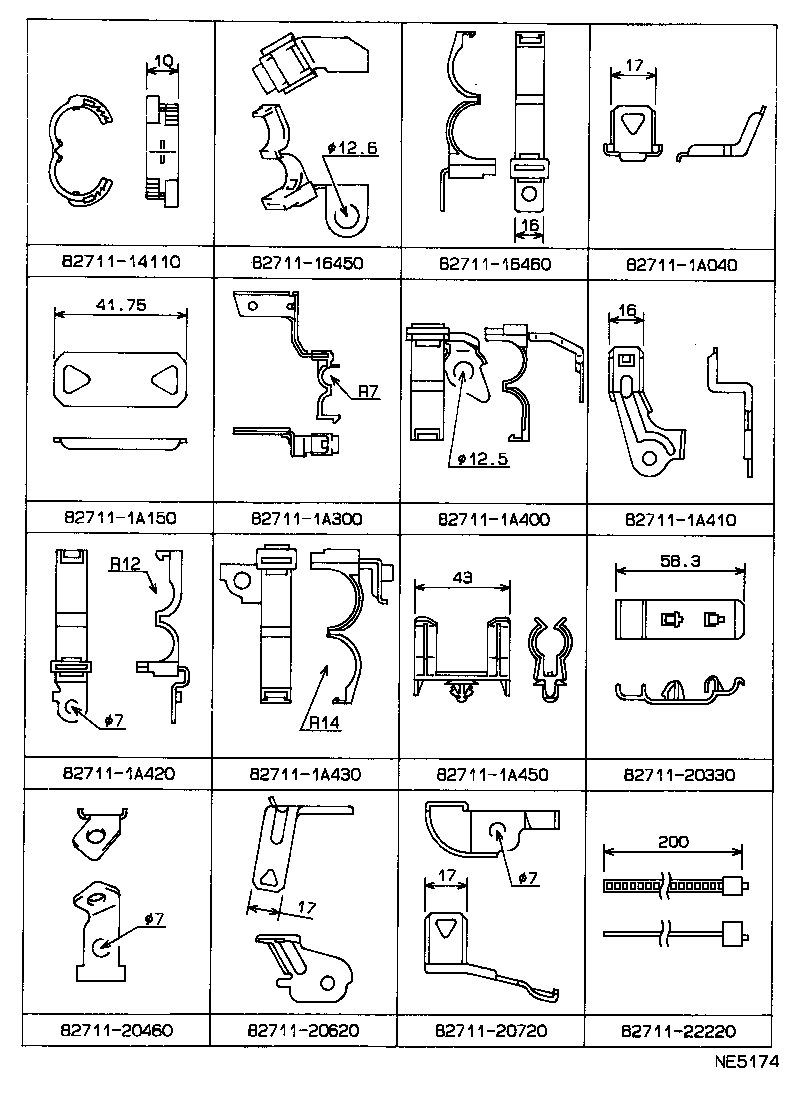

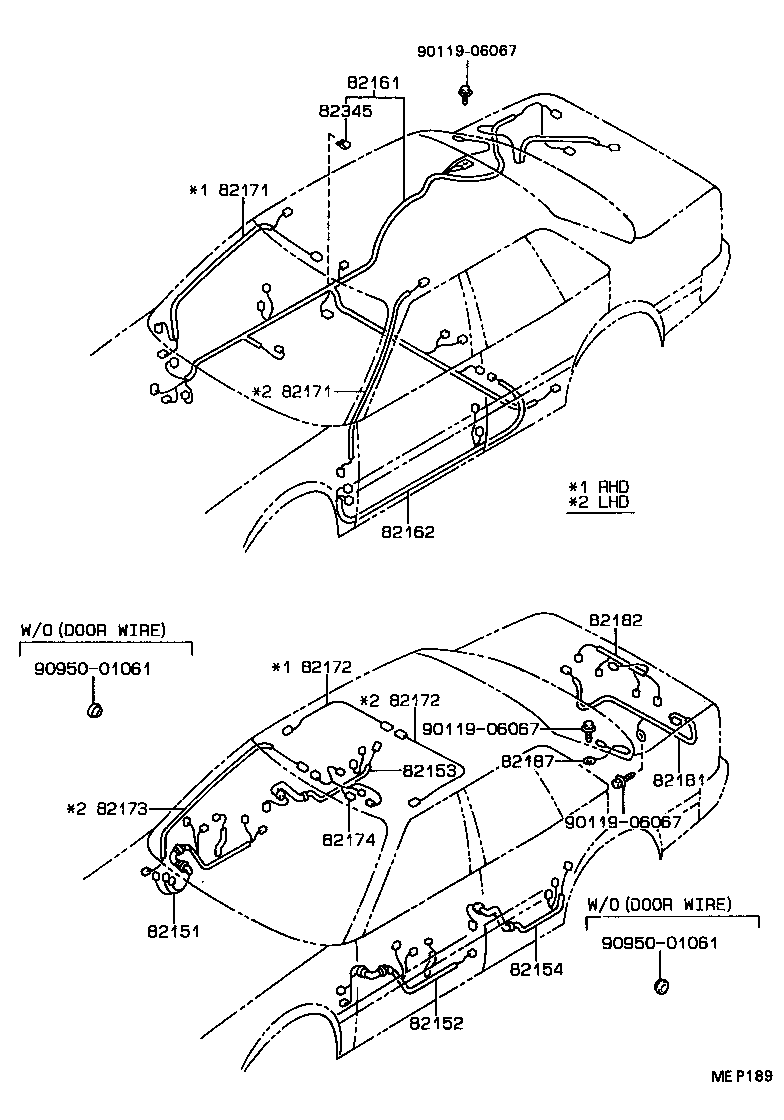

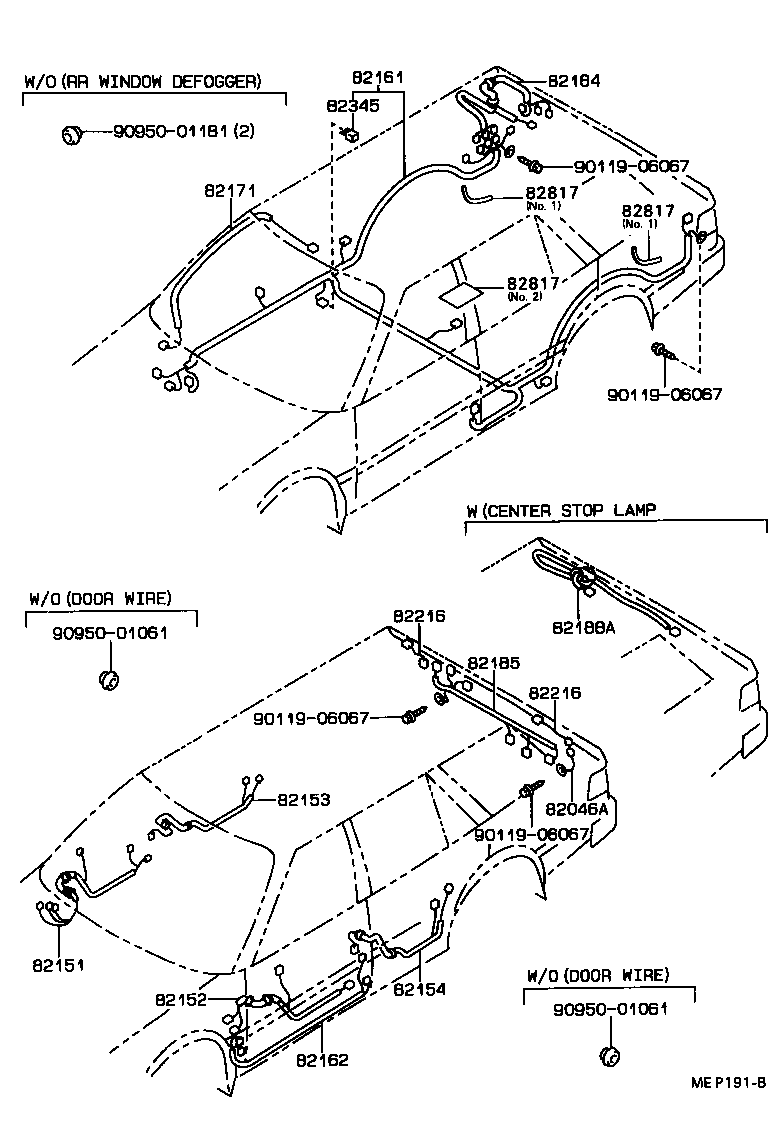

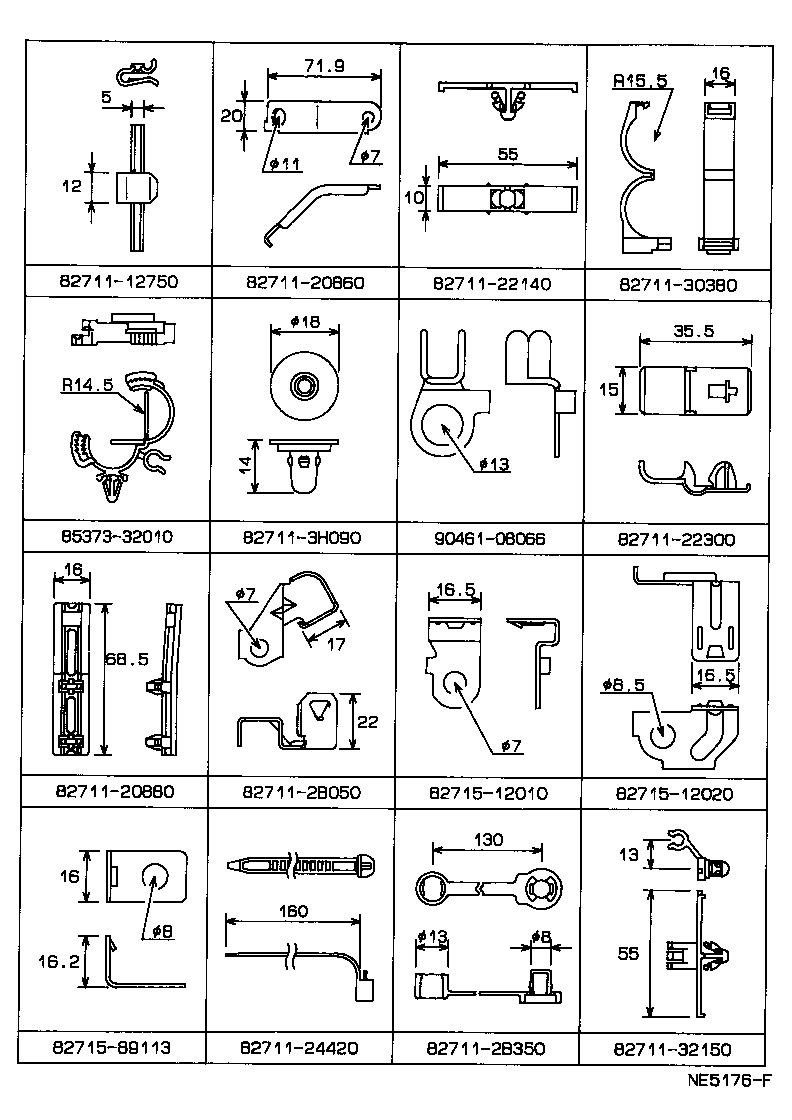

Figure MEP185C MEP185C 1987-12 → — Figure MEP186A MEP186A 1987-12 → — Figure MEP187B MEP187B 1987-12 → — Figure MEP188B MEP188B 1987-12 → — Figure MEP189 MEP189 1987-12 → — Figure MEP190 MEP190 1987-12 → — Figure MEP191B MEP191B 1987-12 → — Figure NE5172A NE5172A 1987-12 → — Figure MEP193 MEP193 1987-12 → — Figure NE5174 NE5174 1987-12 → — Figure NE5175 NE5175 1987-12 → — Figure NE5176F NE5176F 1987-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82210C Fusible Link
82216 Wire, Rear Window Defogger
82241C Wire, Relay
82345 Diode
82817 Protector, Wiring Harness, NO.1
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
85999U Bracket, Relay Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
