Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

24 part groups · 7 illustrations

Illustrations

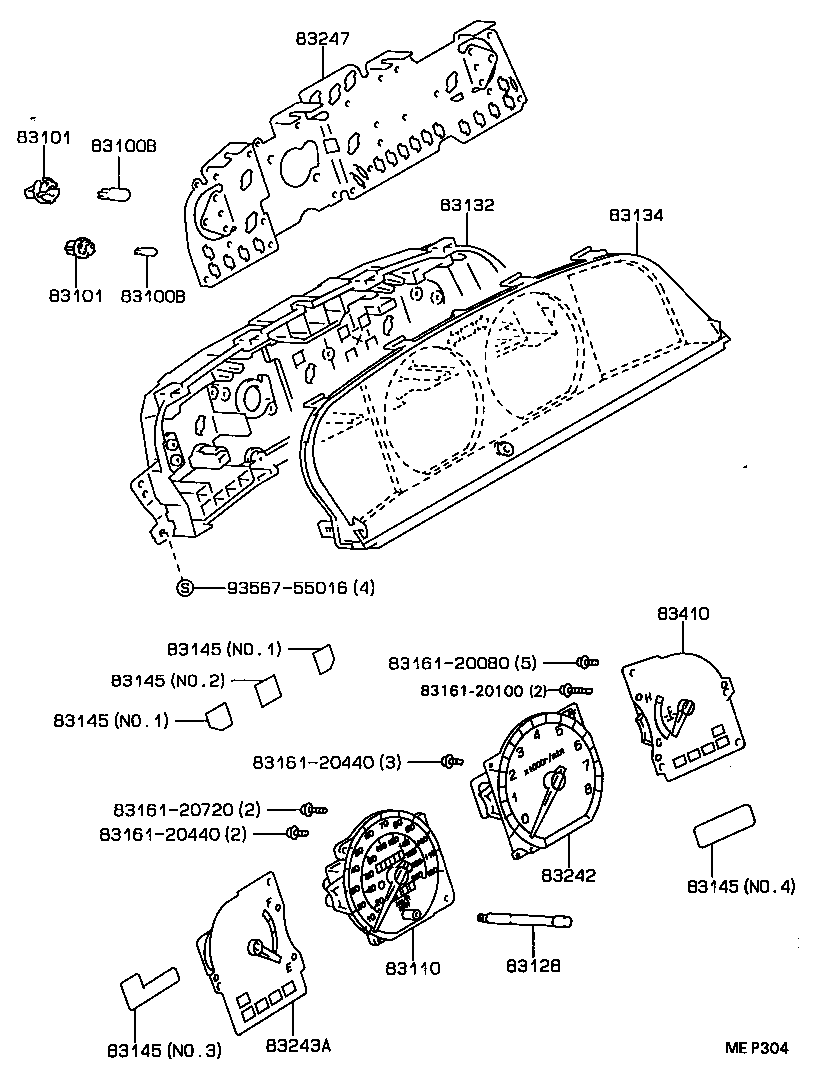

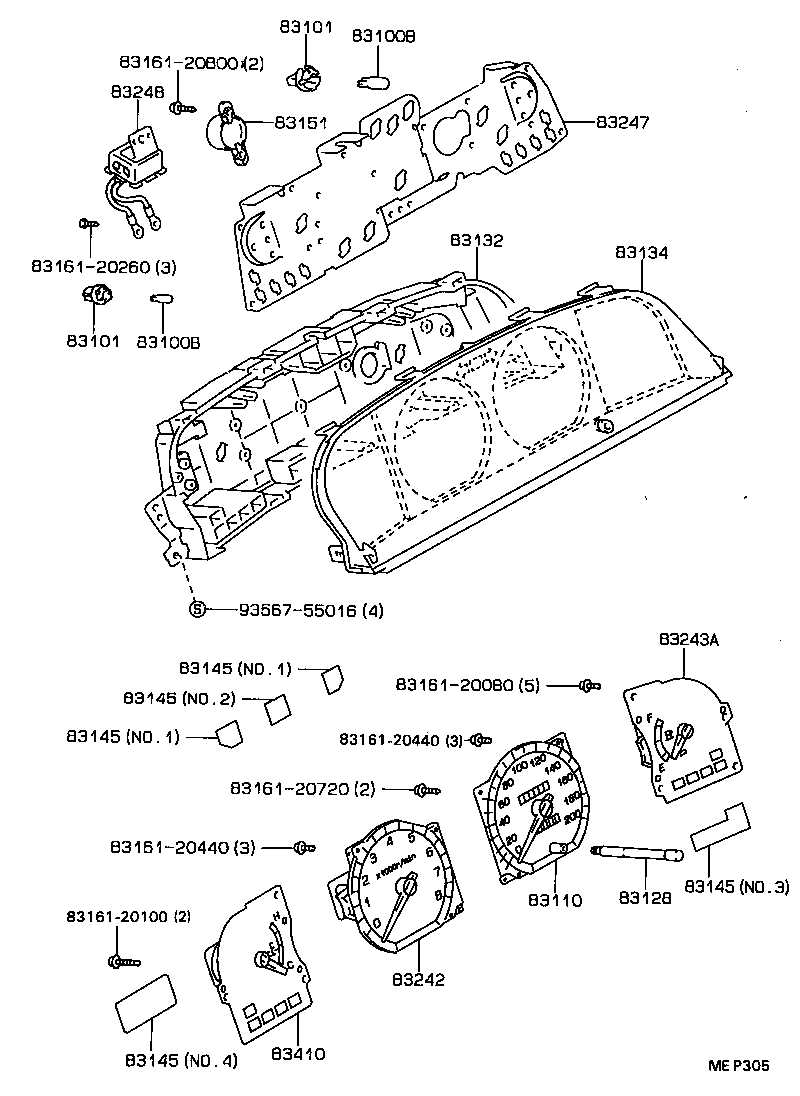

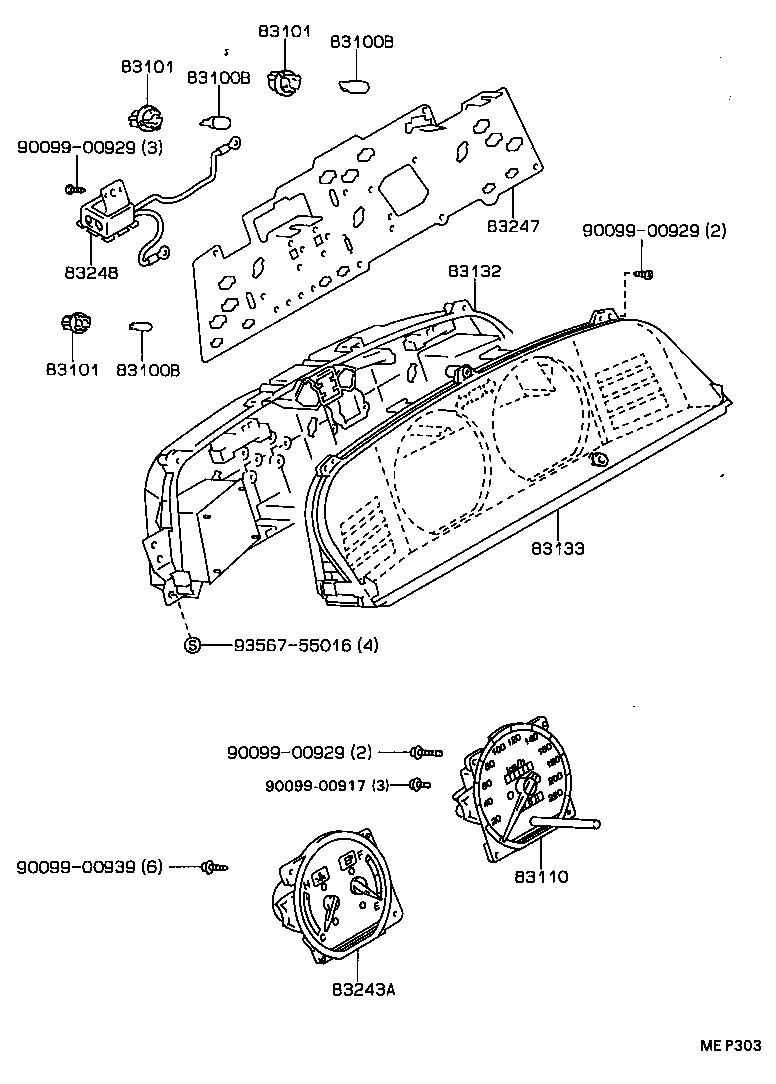

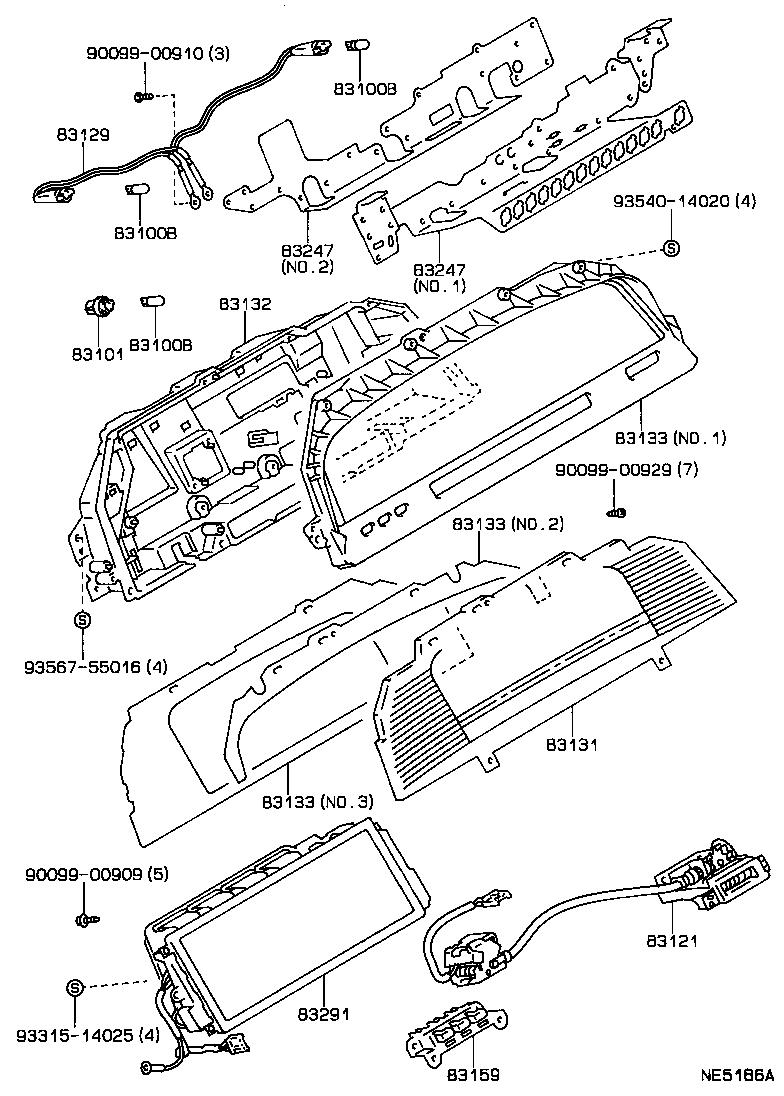

Figure NE5182 NE5182 1987-12 → — Figure MEP303 MEP303 1987-12 → — Figure MEP304 MEP304 1987-12 → — Figure MEP305 MEP305 1987-12 → — Figure NE5186A NE5186A 1987-12 → — Figure NE5189 NE5189 1987-12 → — Figure NE5191B NE5191B 1987-12 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83121 Counter, Total
83128 Knob, Trip Counter
83129 Wire, Meter
83131 Dial, Meter, NO.1
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83151 Buzzer Assy
83159 Switch, Meter, NO.1
83180 Detector Assy, Revolution
83189 Bracket, Meter
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83247 Plate, Meter Circuit
83248 Chime, Speed Warning
83291 Computer, Combination Meter
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
