Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

16 part groups · 3 illustrations

Illustrations

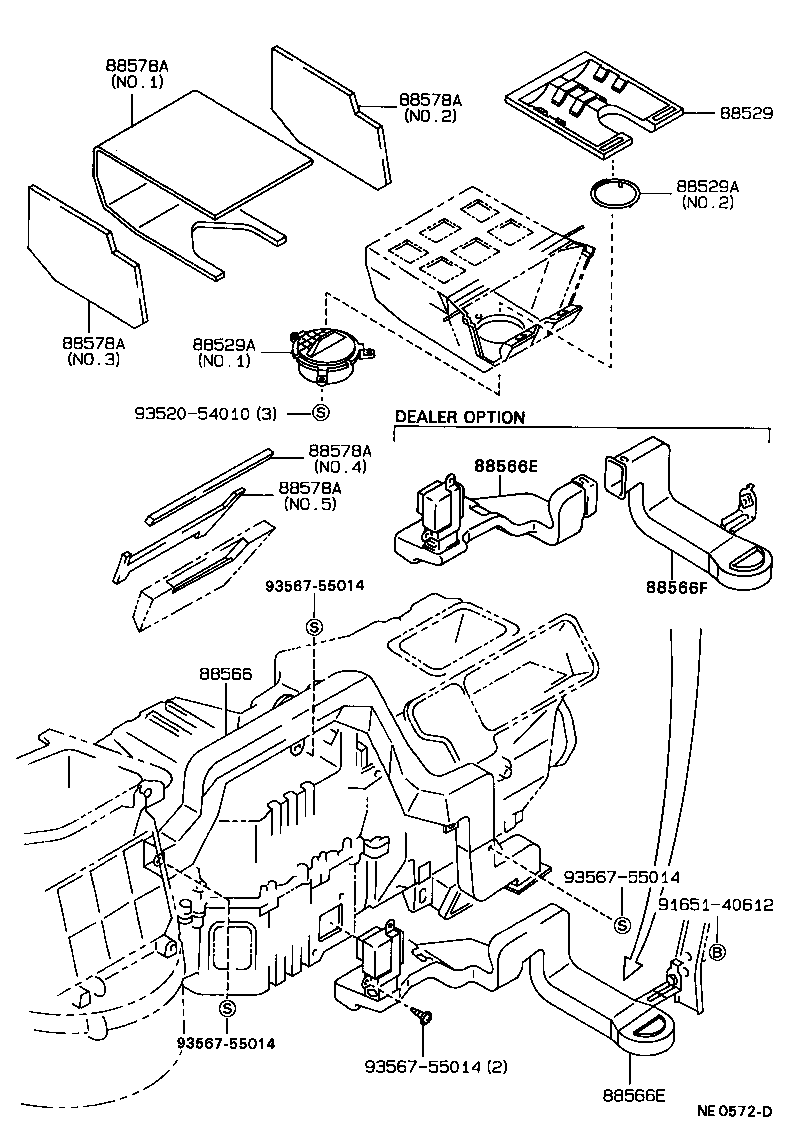

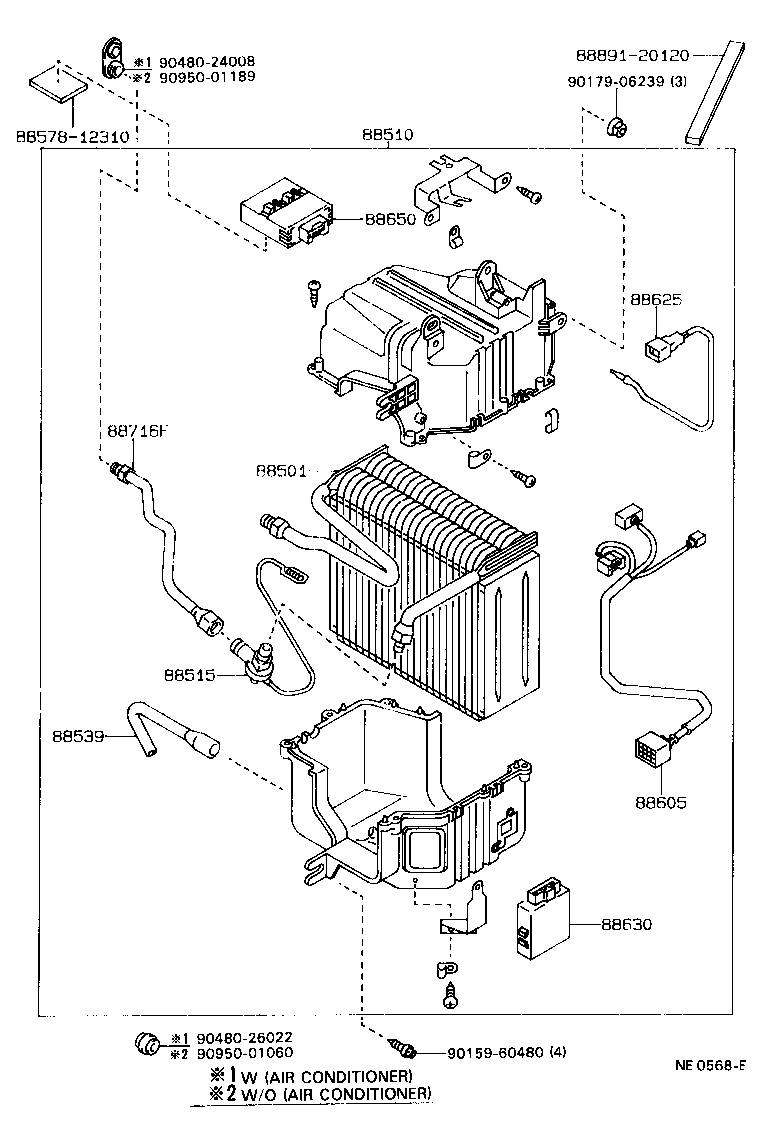

Figure MEM657A MEM657A 1987-12 → — Figure NE0568E NE0568E 1987-12 → — Figure NE0572D NE0572D 1987-12 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88529 Tray, Cooling Box
88529A Tray, Cooling Box
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88566E Duct, Cooler Air, NO.2
88566F Duct, Cooler Air, NO.3
88578A Packing, Cooler Stabilizer Amplifier
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
