Toyota Corona (SED/LB)

1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 5 illustrations

Illustrations

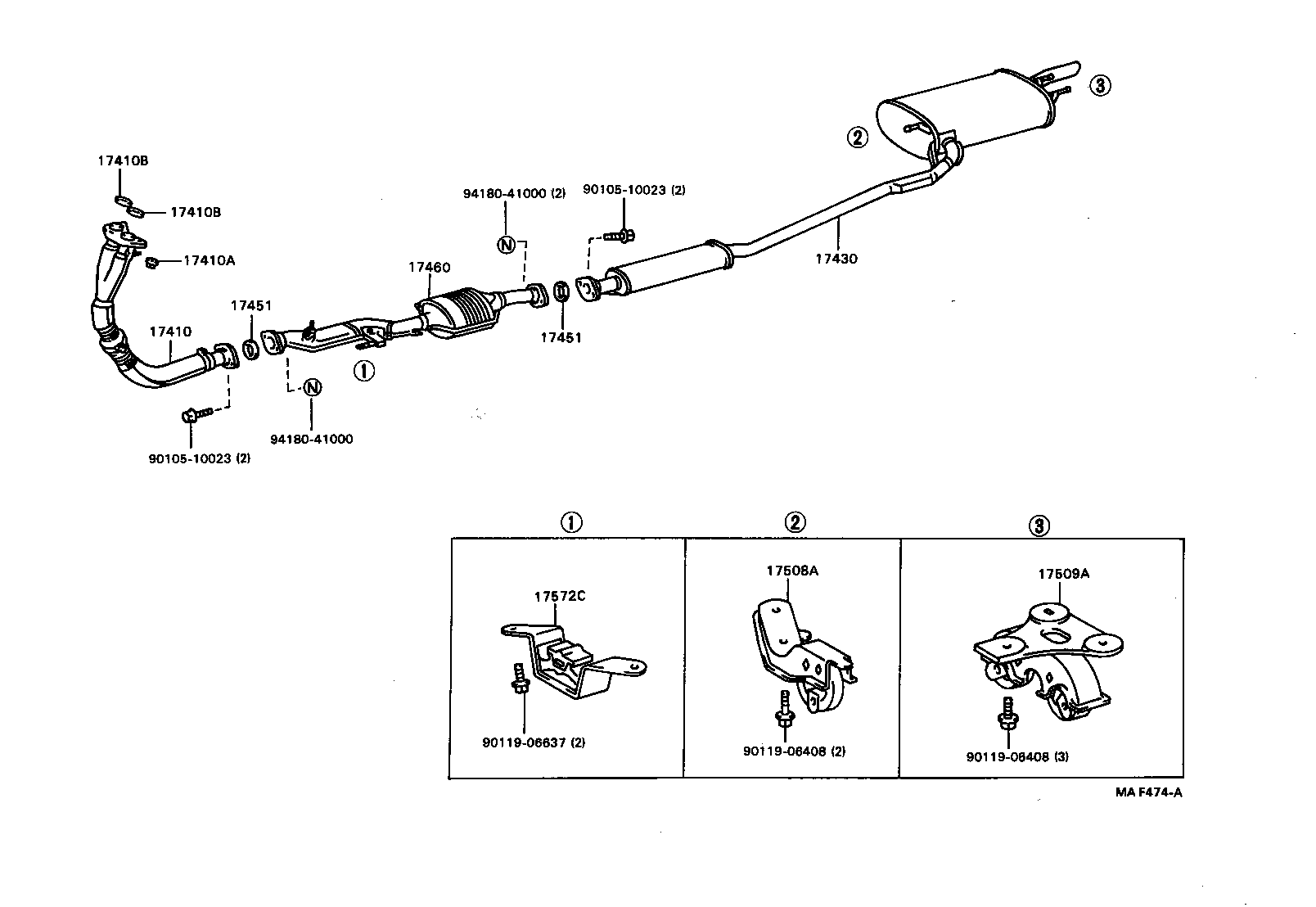

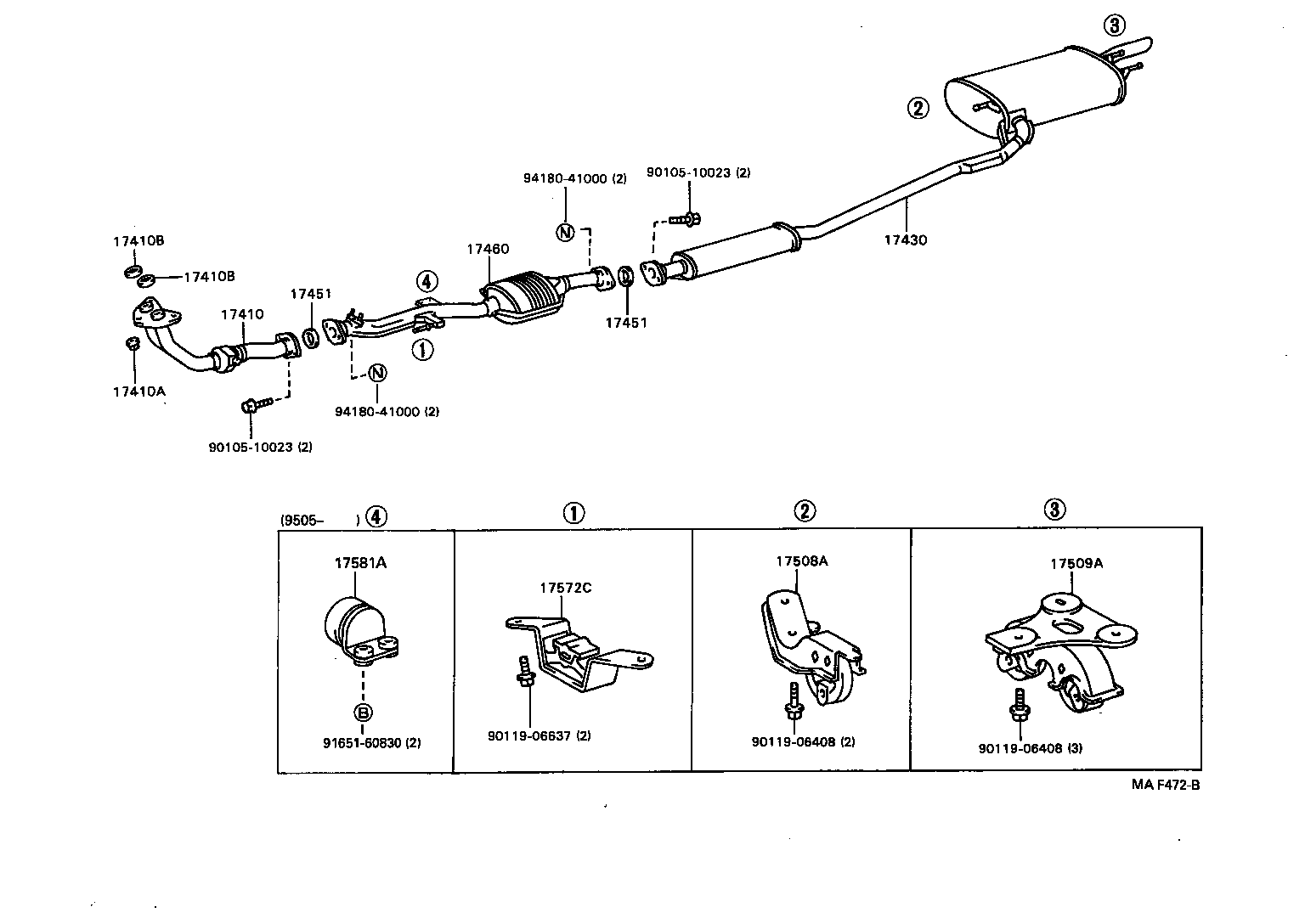

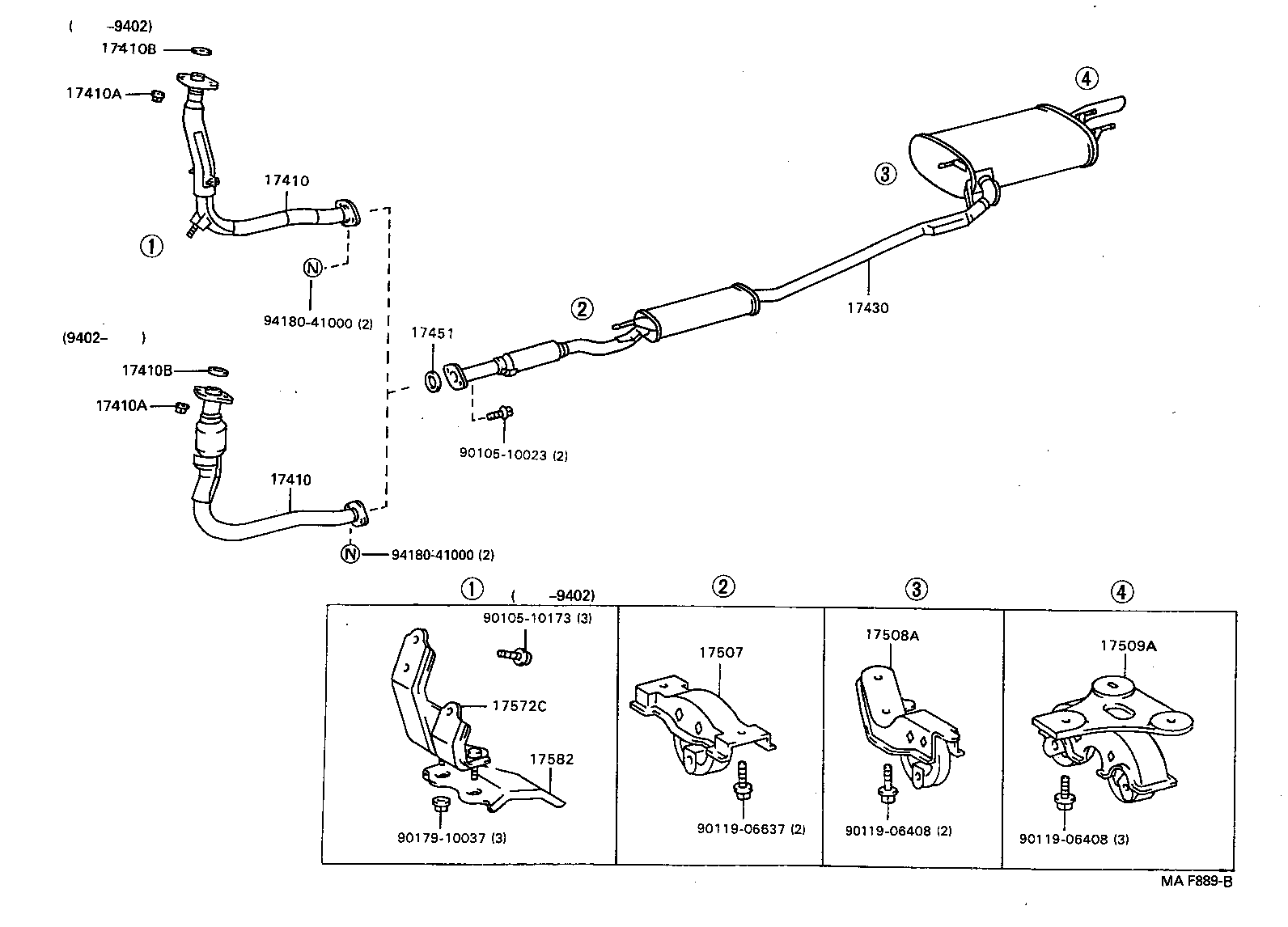

Figure MAF471A MAF471A 1992-03 → — Figure MAF472B MAF472B 1992-03 → — Figure 171584 171584 1992-03 → — Figure MAF474A MAF474A 1992-03 → — Figure MAF889B MAF889B 1992-03 → 1996-01

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17581A Damper, Exhaust Pipe
17582 Bracket, Catalytic Converter Support, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
