Toyota Corona (SED/LB)

1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 4 illustrations

Illustrations

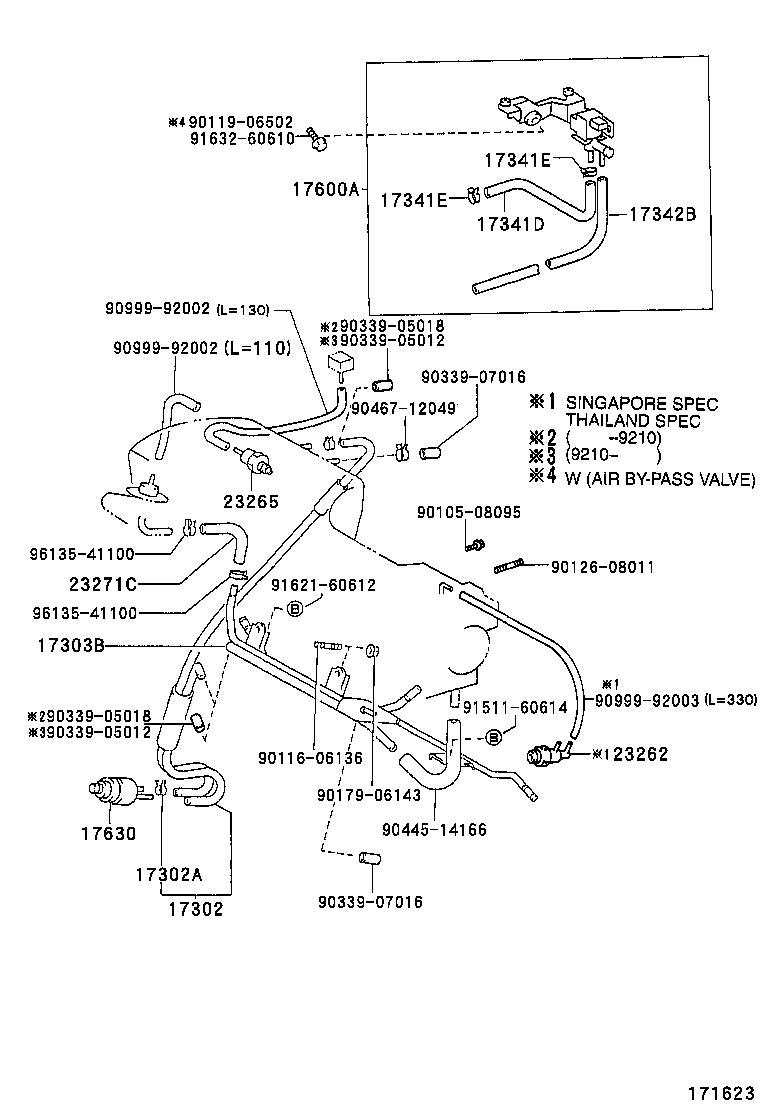

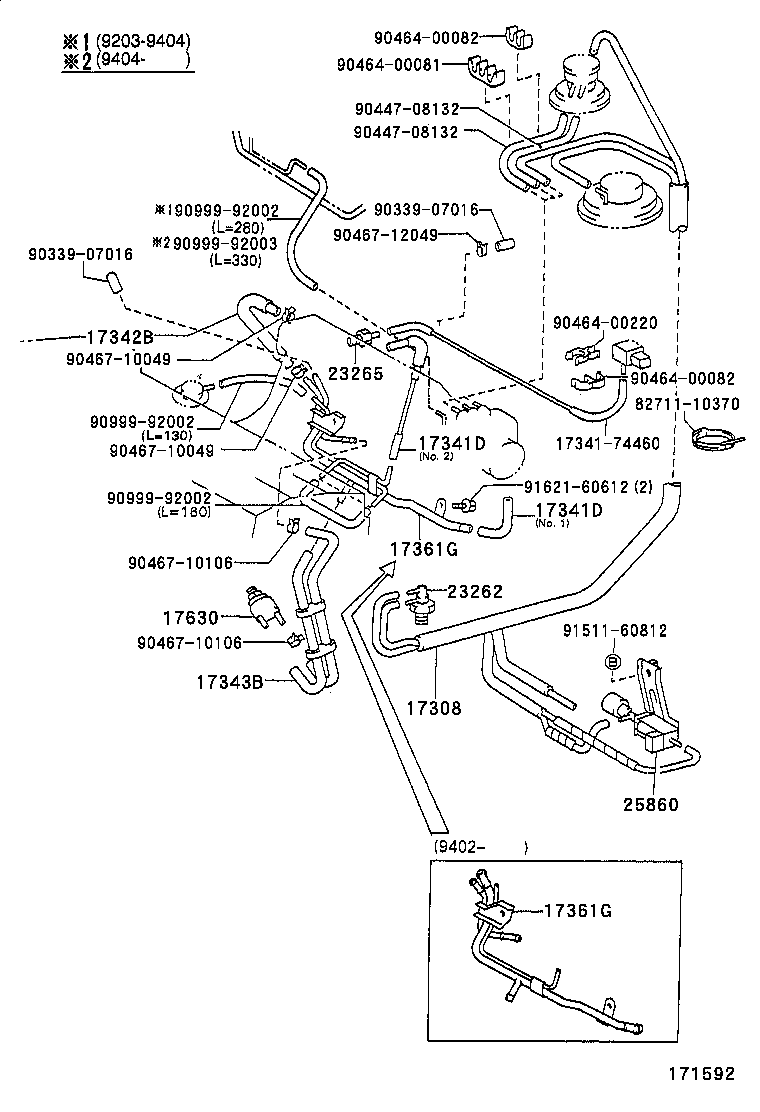

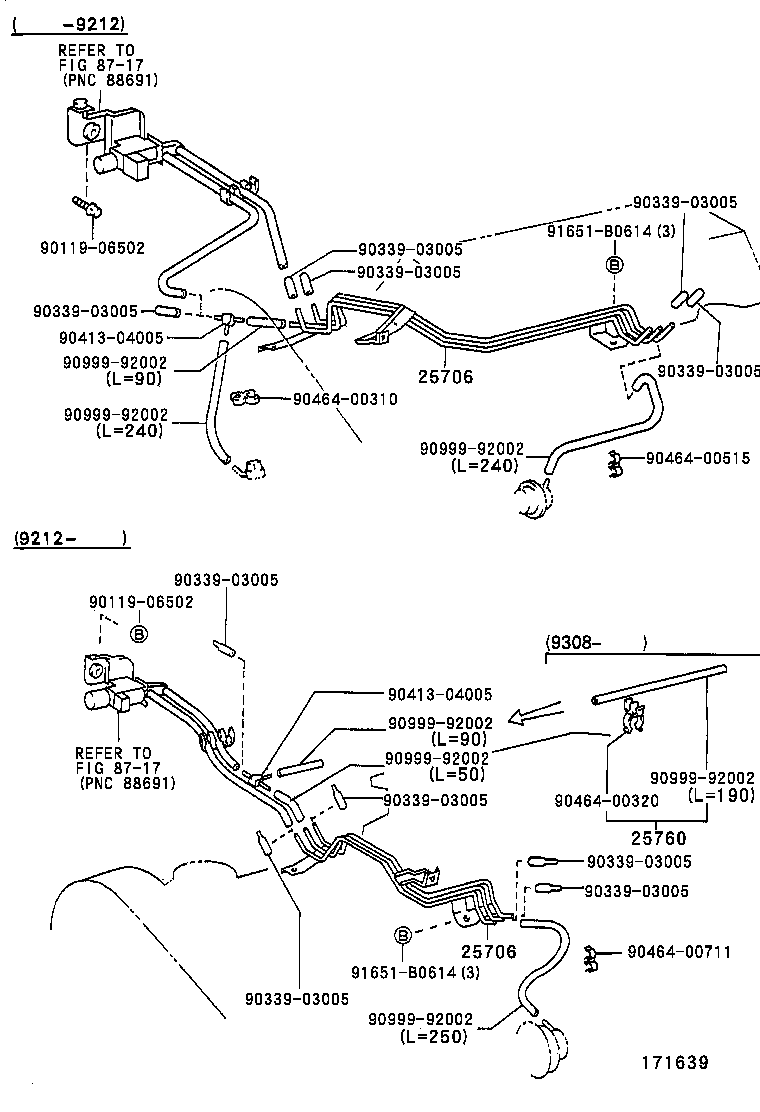

Figure 170021 170021 1992-03 → — Figure 171623 171623 1992-03 → — Figure 171639 171639 1992-03 → 1996-01 Figure 171592 171592 1992-03 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17600A Valve Assy, Air By-pass W/Hose
17630 Valve Assy, Air Control
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271C Hose, Fuel
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
