Toyota Corona (SED/LB)

1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 4 illustrations

Illustrations

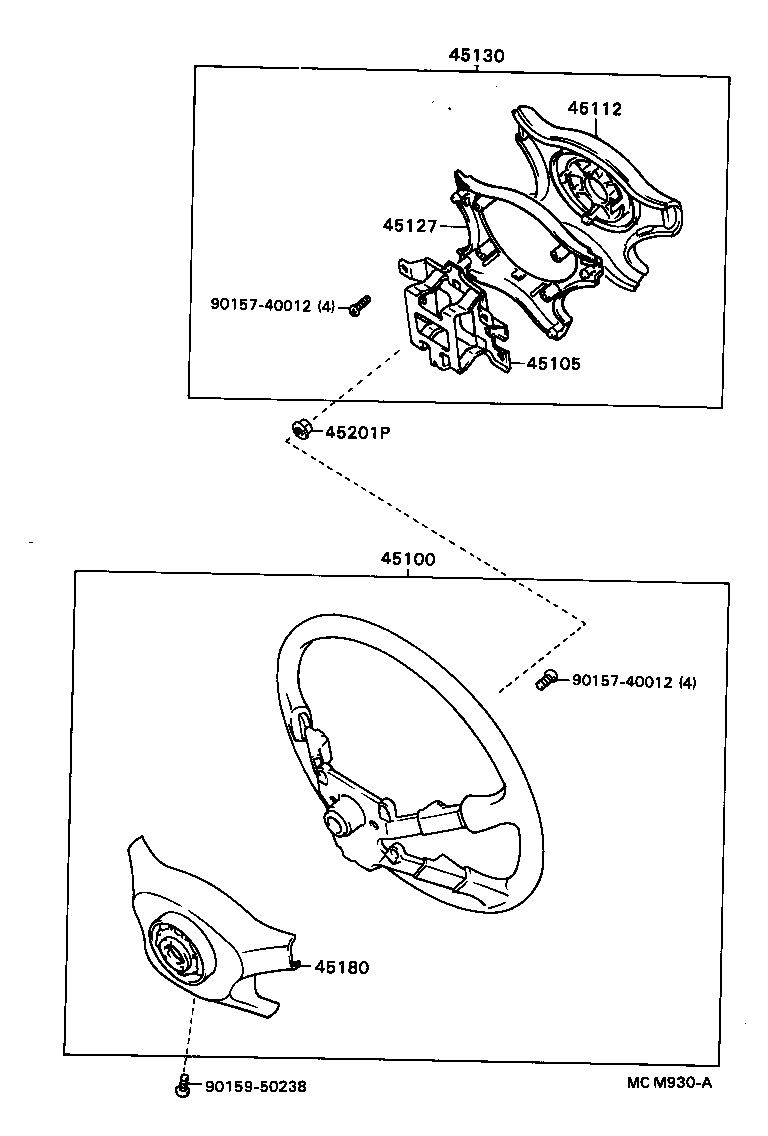

Figure MCM933B MCM933B 1992-03 → — Figure MCM929A MCM929A 1992-03 → — Figure MCM930A MCM930A 1992-03 → — Figure 451265 451265 1992-03 → —

Part groups

PNCDescription
45001 Airbag Kit, Sttering Wheel
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45108B Button Sub-assy, Horn(FOR STEERING WHEEL ASSY)
45112 Pad, Steering Wheel
45127 Insert, Horn Button, Upper NO.1
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136F Plate, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45146B Spring, Horn Button Contact, NO.1
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
