Toyota Corona (SED/LB)
1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General
Discontinued model
Data version 1999-10

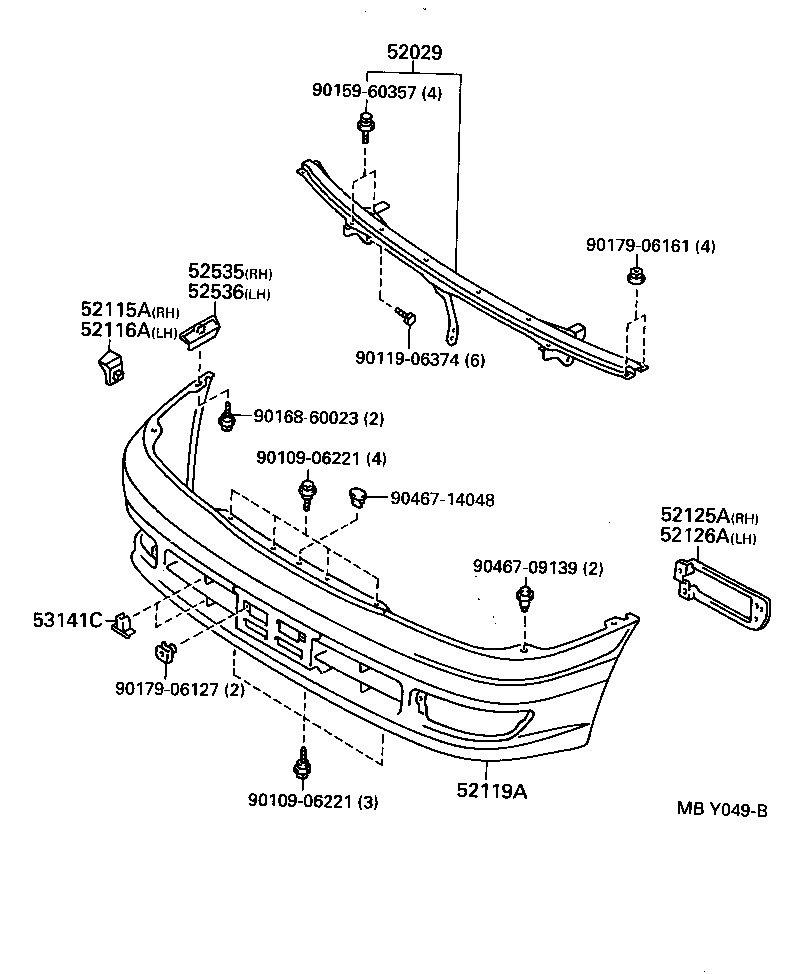

Front Bumper & Bumper Stay
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126A | Bracket, Fog Lamp Mounting, LH |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 53141C | Garnish, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
