Toyota Corona (SED/LB)

1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

5 part groups · 4 illustrations

Illustrations

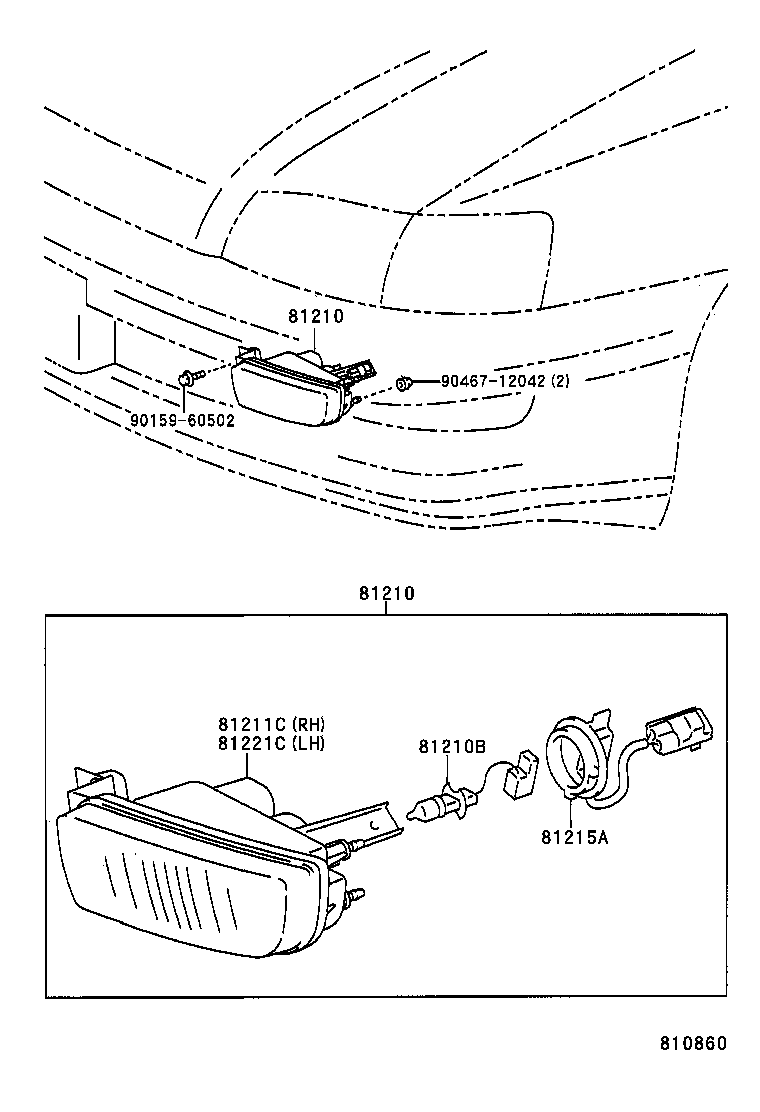

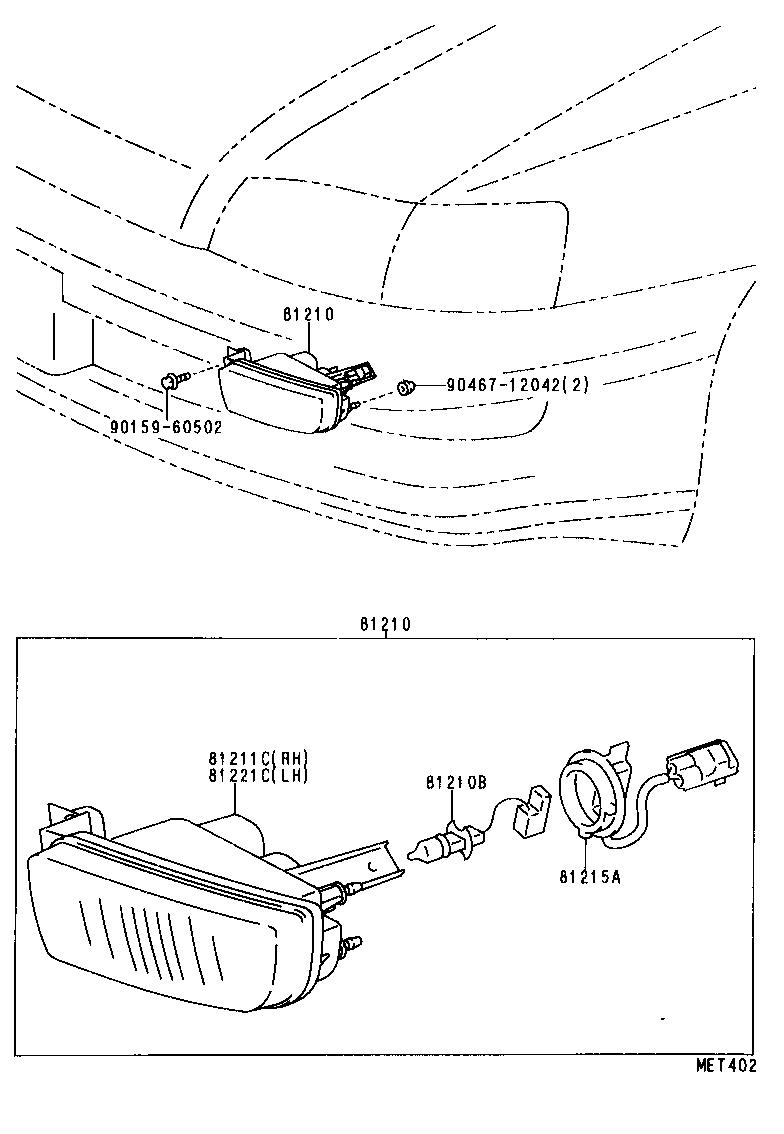

Figure MET401 MET401 1992-03 → 1994-02 Figure MET402 MET402 1992-03 → 1994-02 Figure 810860 810860 1992-03 → — Figure 810860 810860 1994-02 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81215A Socket & Wire, Fog Lamp
81221C Lamp Unit, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
