Toyota Corona (SED/LB)

1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 3 illustrations

Illustrations

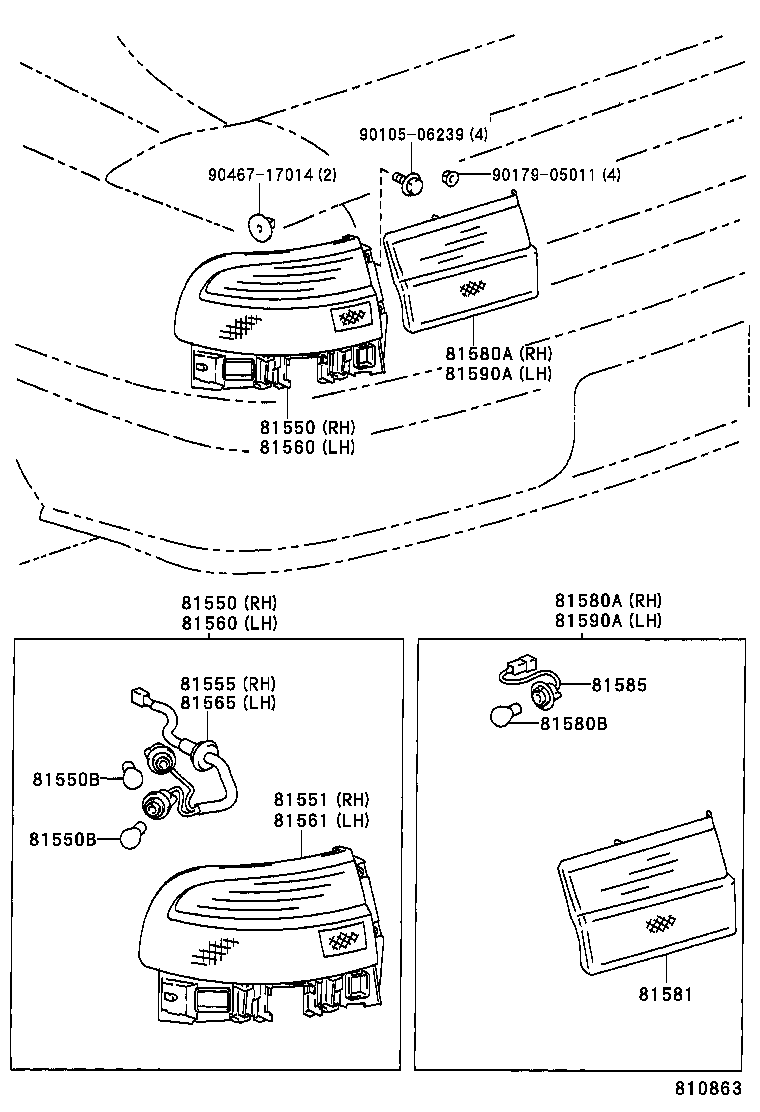

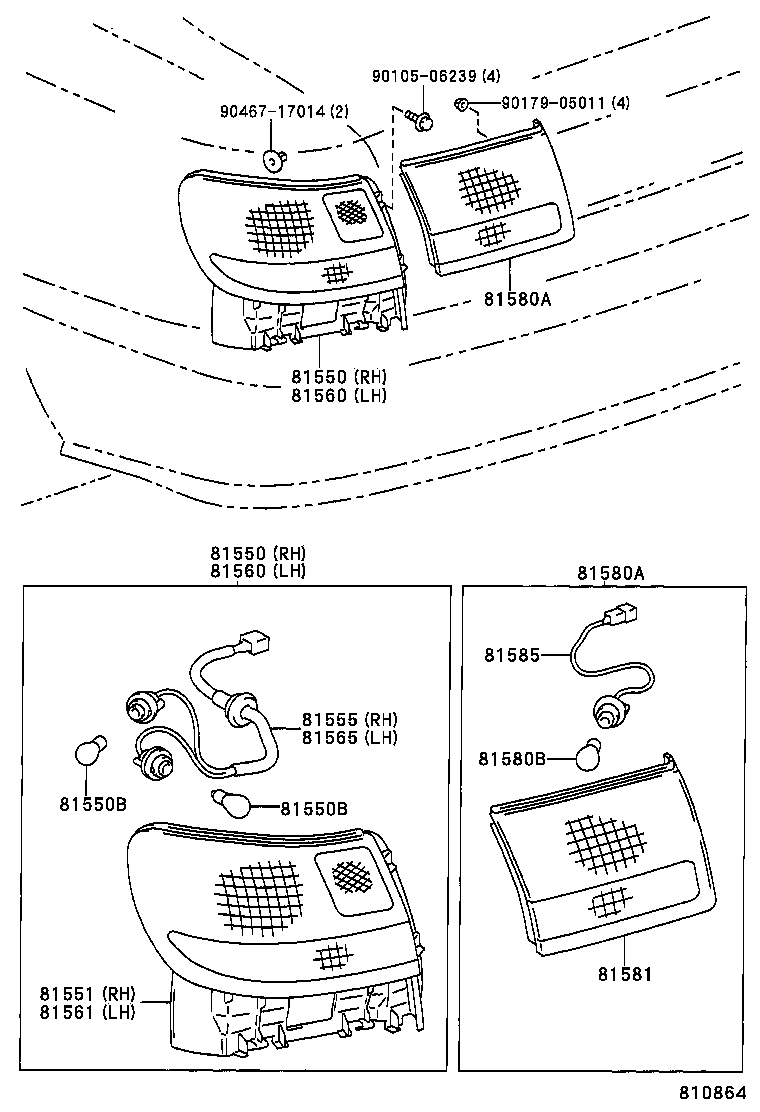

Figure 810862 810862 1992-03 → 1994-02 Figure 810863 810863 1994-02 → — Figure 810864 810864 1992-03 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580A Lamp Assy, Rear
81580B Bulb (FOR REAR LAMP)
81581 Lens, Rear Lamp
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
