Toyota Corona (SED/LB)
1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General
Discontinued model
Data version 1999-10

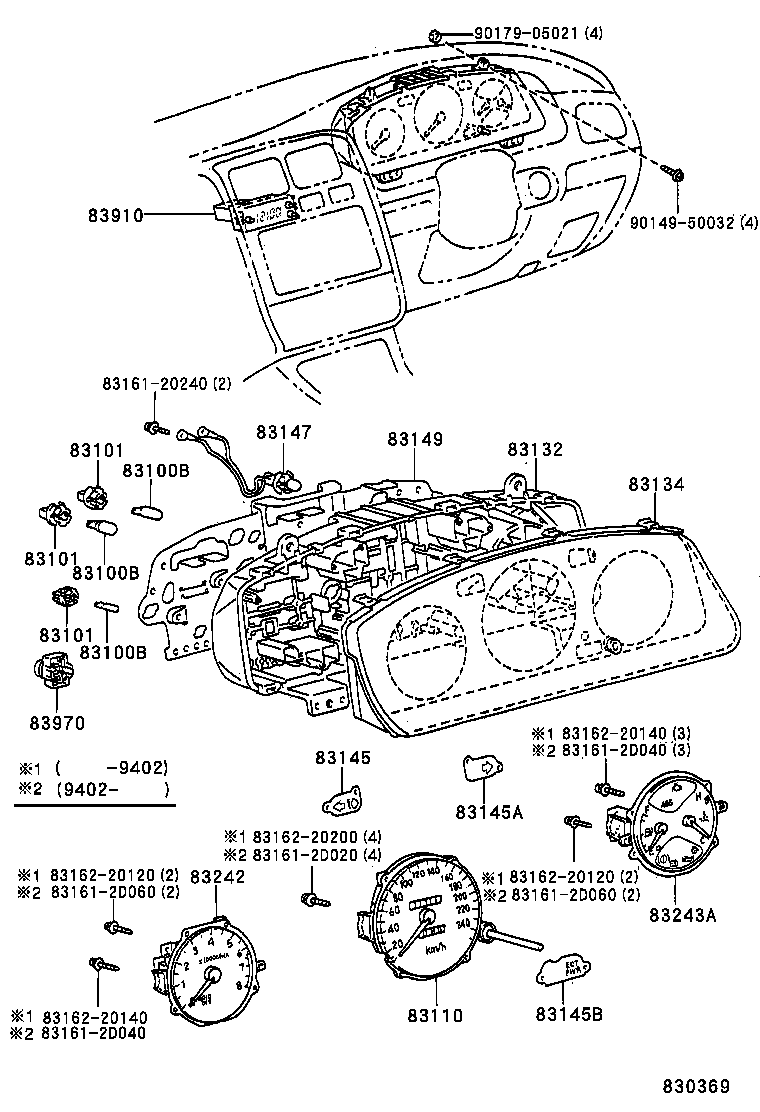

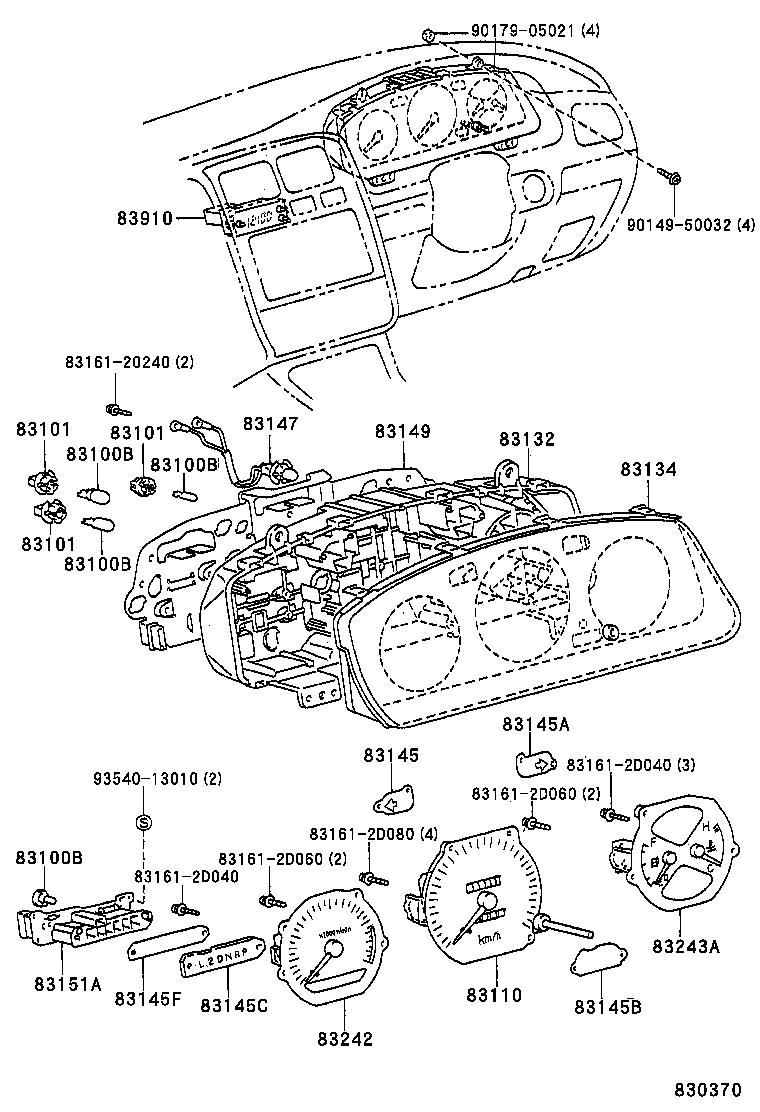

Meter
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145F | Lens, Meter, NO.7 |
| 83145U | Lens, Meter, NO.9 |
| 83145V | Lens, Meter, NO.10 |
| 83147 | Lamp, Meter NO.1 |
| 83149 | Plate, Meter Circuit |
| 83151A | Lamp Assy, Indicator |
| 83180 | Detector Assy, Revolution |
| 83181A | Sensor, Speedometer |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
