Toyota Corona (SED/LB)
1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General
Discontinued model
Data version 1999-10
Overdrive & Electronic Controlled Transmission

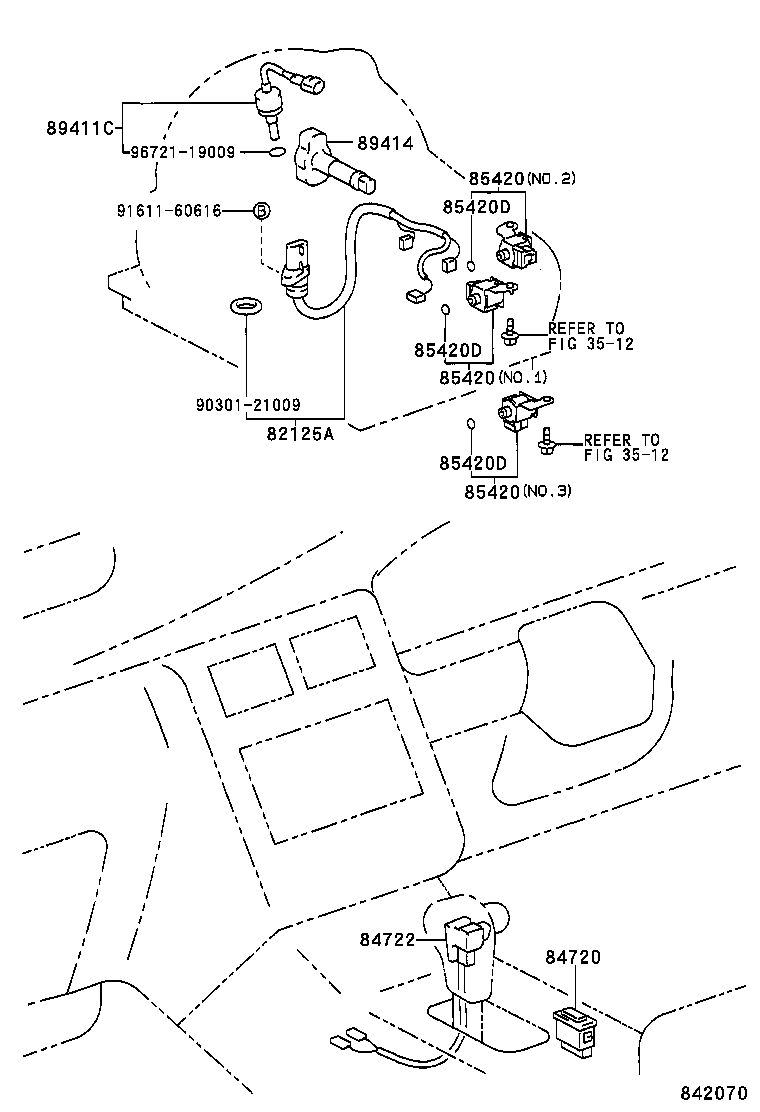

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82125D | Plate, Transmission Wire Lock |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
