Factory parts data · Europe

Toyota Corona (SED/LB)

1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General

Discontinued model Data version 1999-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

860688 1992-03 → —

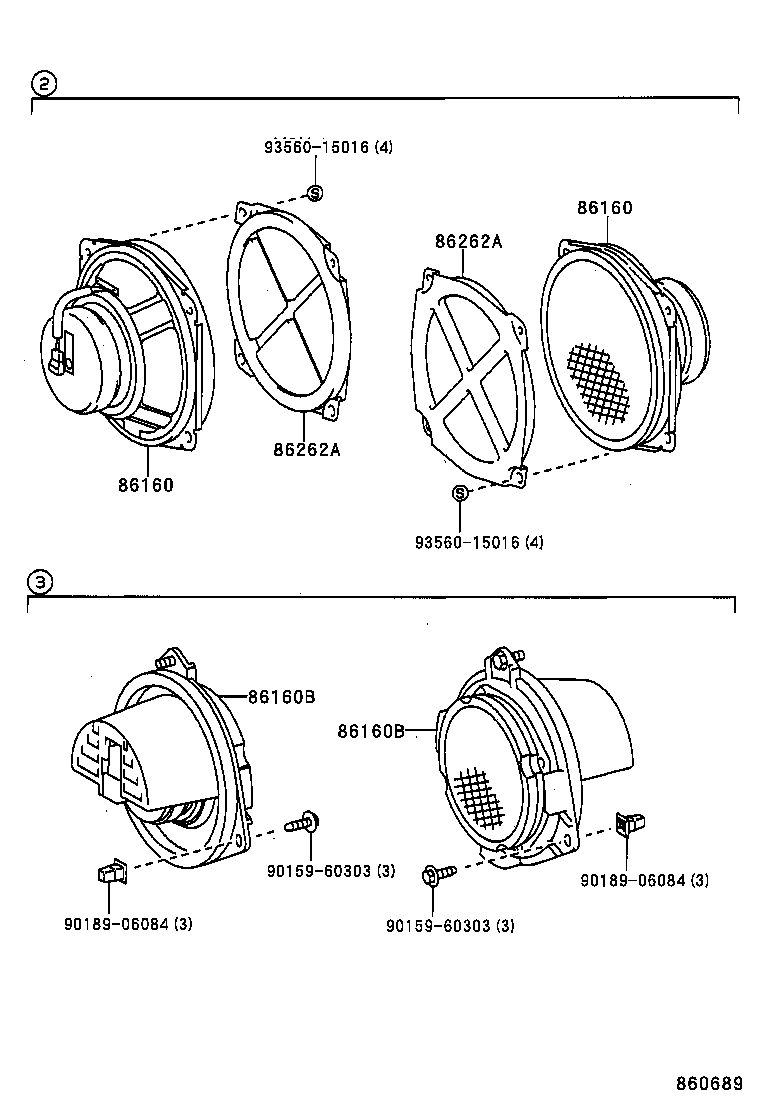

860689 1992-03 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2
86262A	Cover, Speaker, Front

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
