Toyota Corona (SED/LB)
1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General
Discontinued model
Data version 1999-10

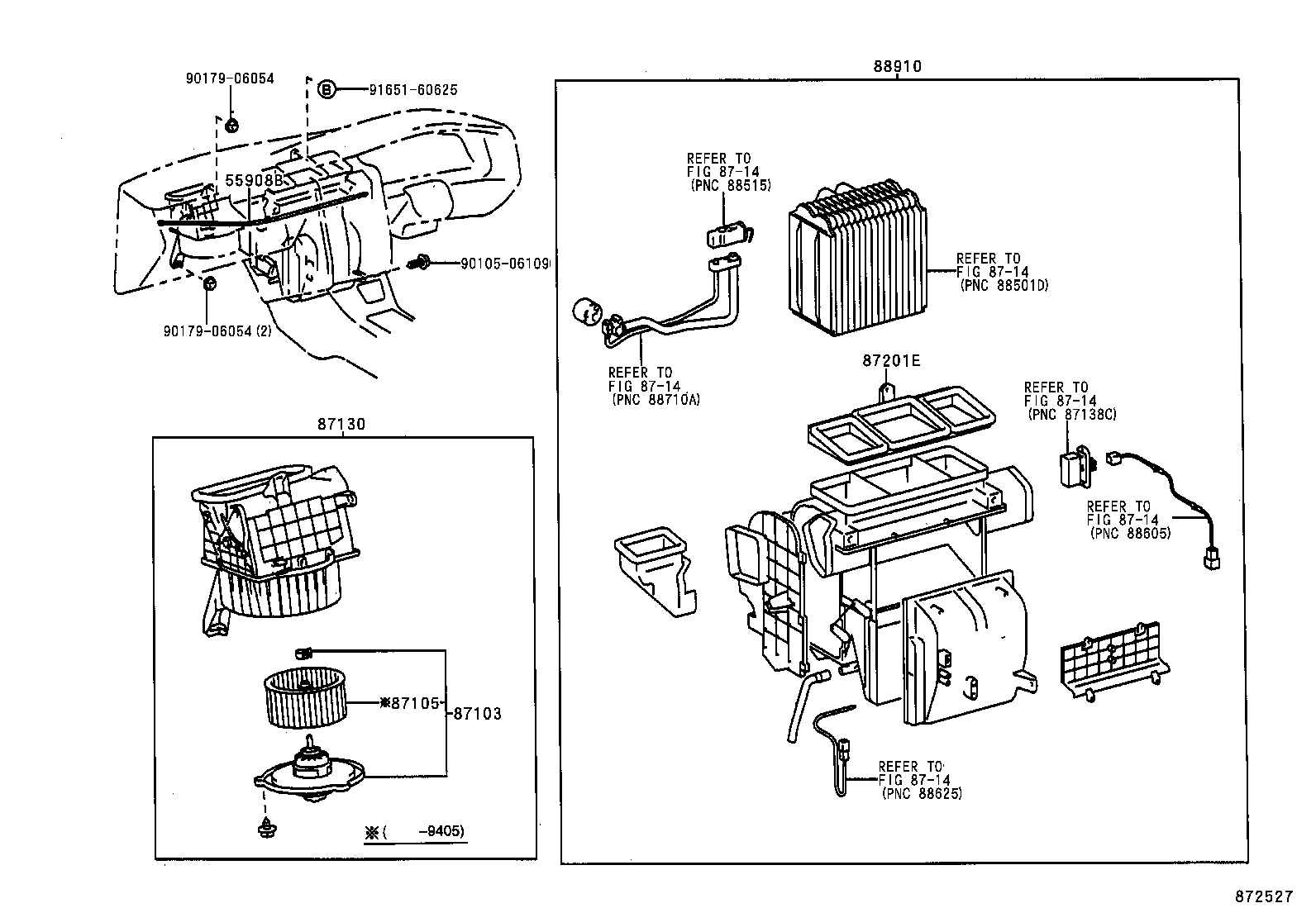

Heating & Air Conditioning - Heater Unit & Blower
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 55907E | Cable Sub-assy, Water Valve Control, NO.2 |
| 55908B | Cable Sub-assy, Air Inlet Damper Control |
| 87050A | Radiator Assy, Air Conditioner |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87105 | Fan Sub-assy, Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87130 | Blower Assy, Heater, Front |
| 87161 | Amplifier, Heater Servo Motor |
| 87201D | Duct Sub-assy, Air |
| 87201E | Duct Sub-assy, Air, NO.2 |
| 88630M | Relay Assy, Cooler |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
