Toyota Corona (SED/LB)
1992-03 → 1998-05 · chassis AT190,ST191,CT190 · catalogue 271330 · General
Discontinued model
Data version 1999-10

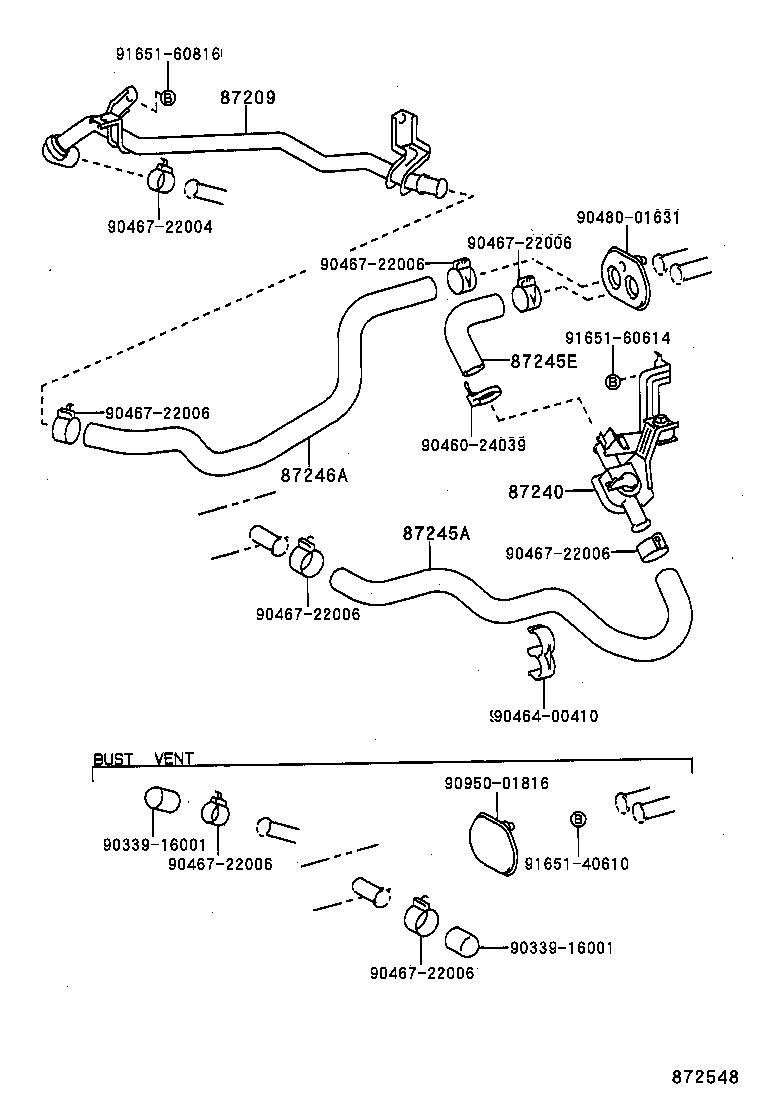

Heating & Air Conditioning - Water Piping
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87209 | Hose Sub-assy, Water |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
