Toyota Corona

1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 2 illustrations

Illustrations

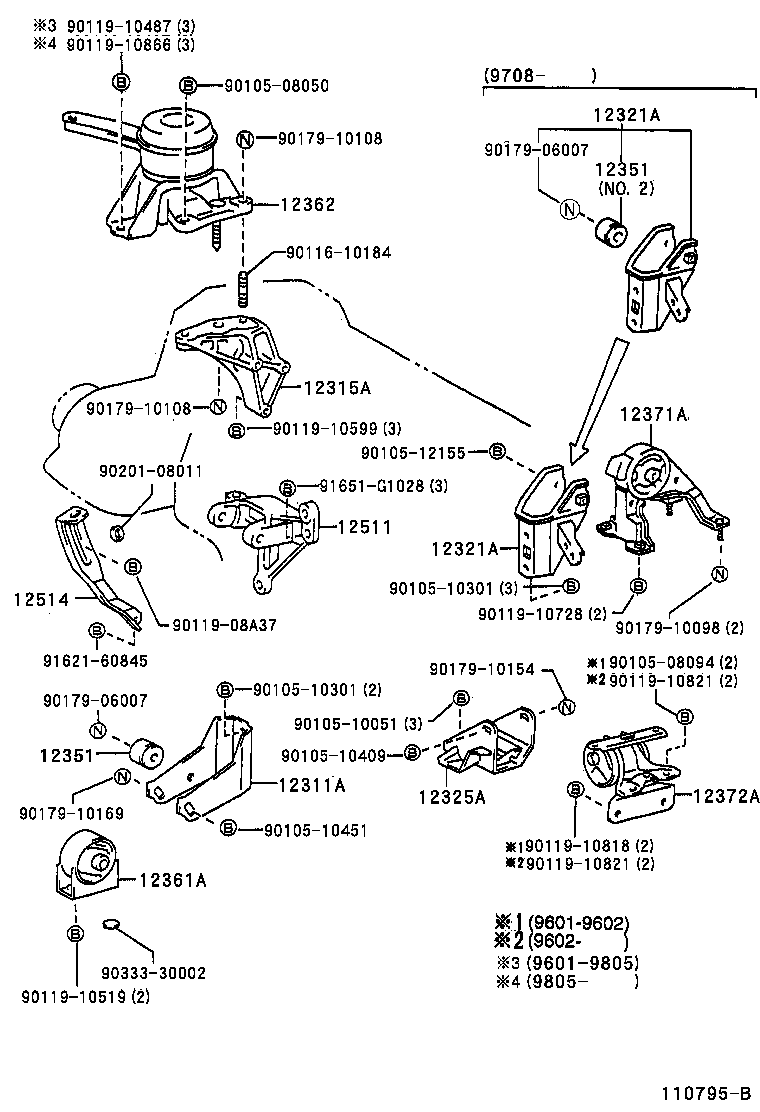

Figure 110465C 110465C 1996-01 → — Figure 110795B 110795B 1996-01 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12514 Bar, Alternator Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
