Toyota Corona

1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 5 illustrations

Illustrations

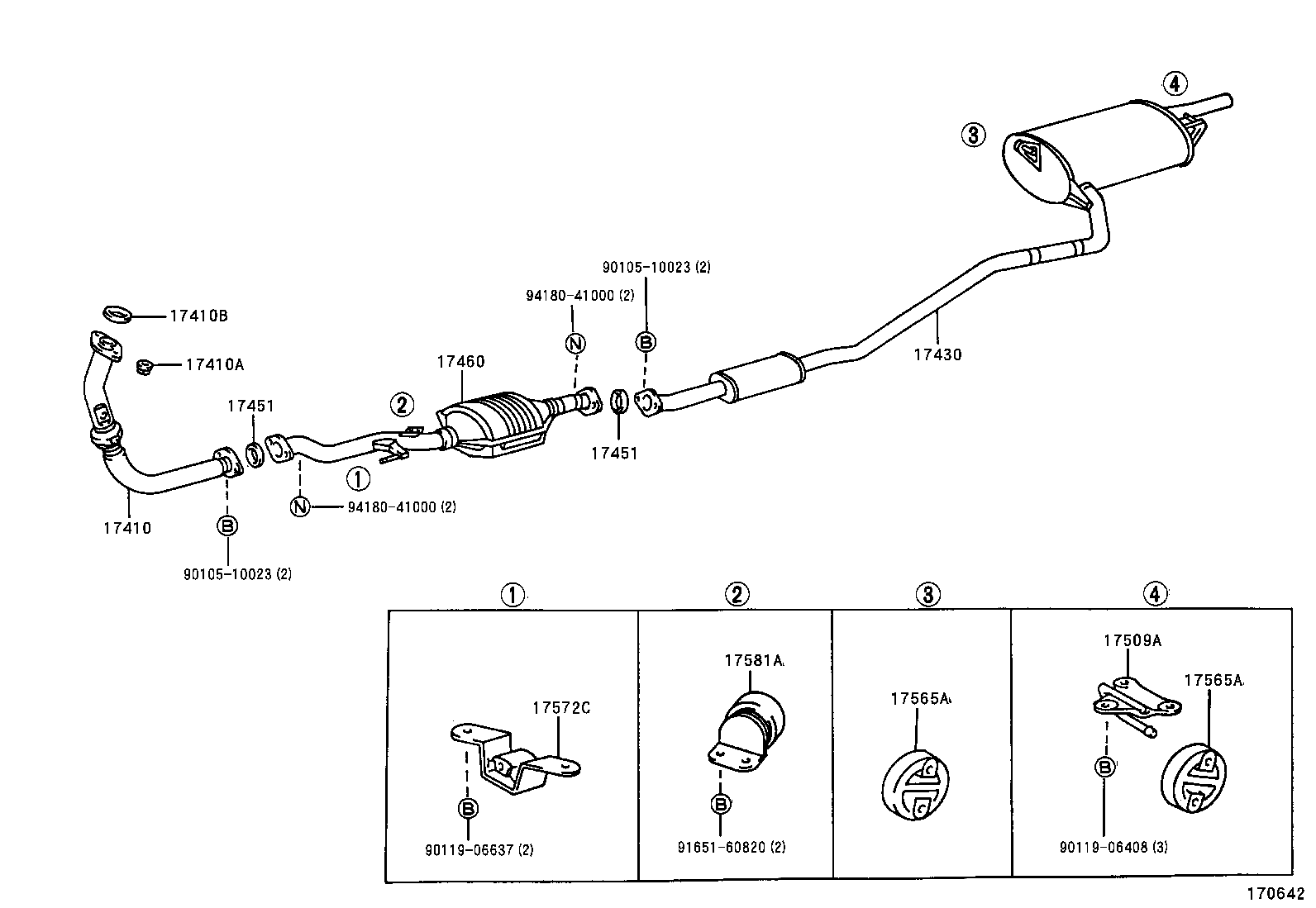

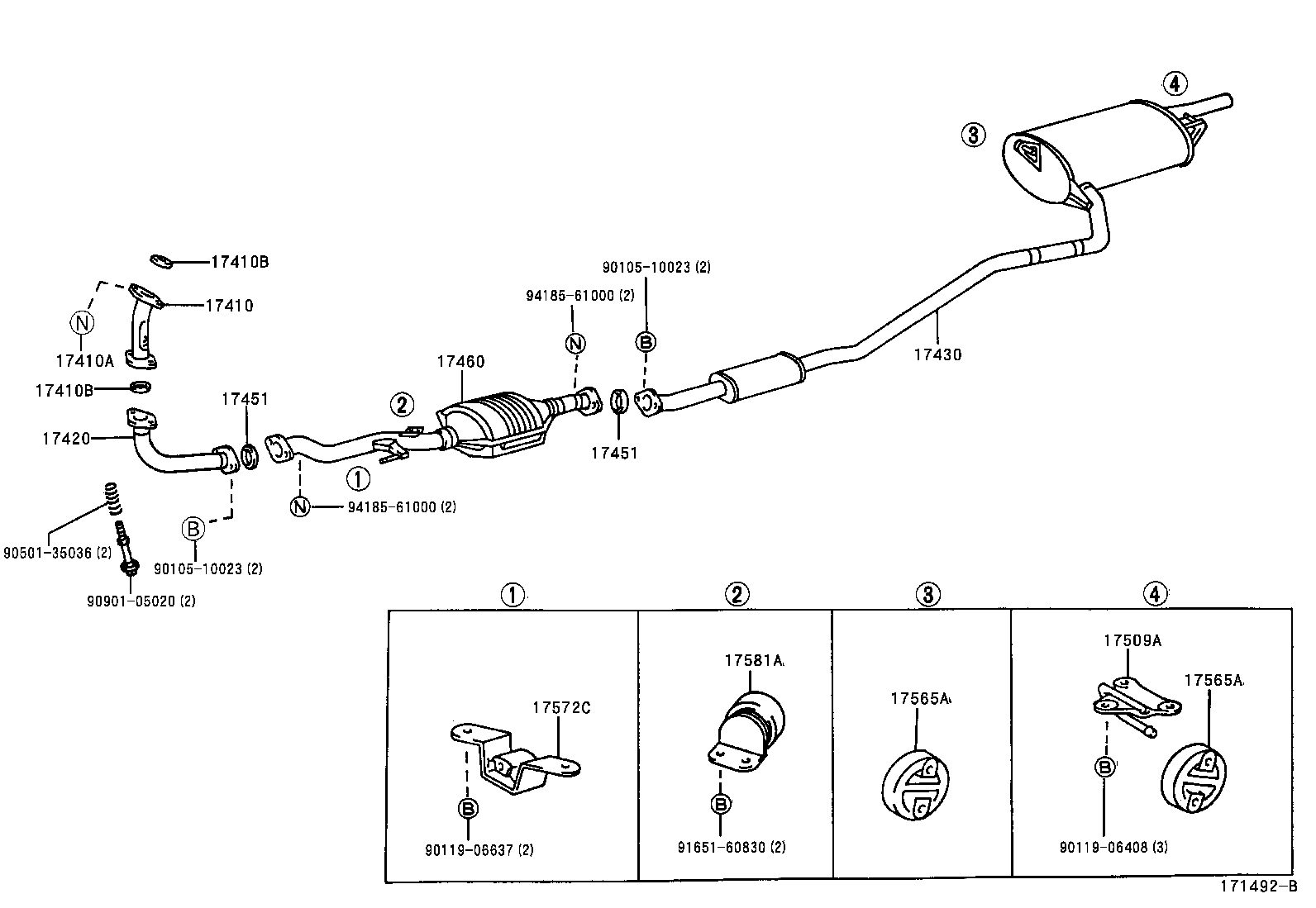

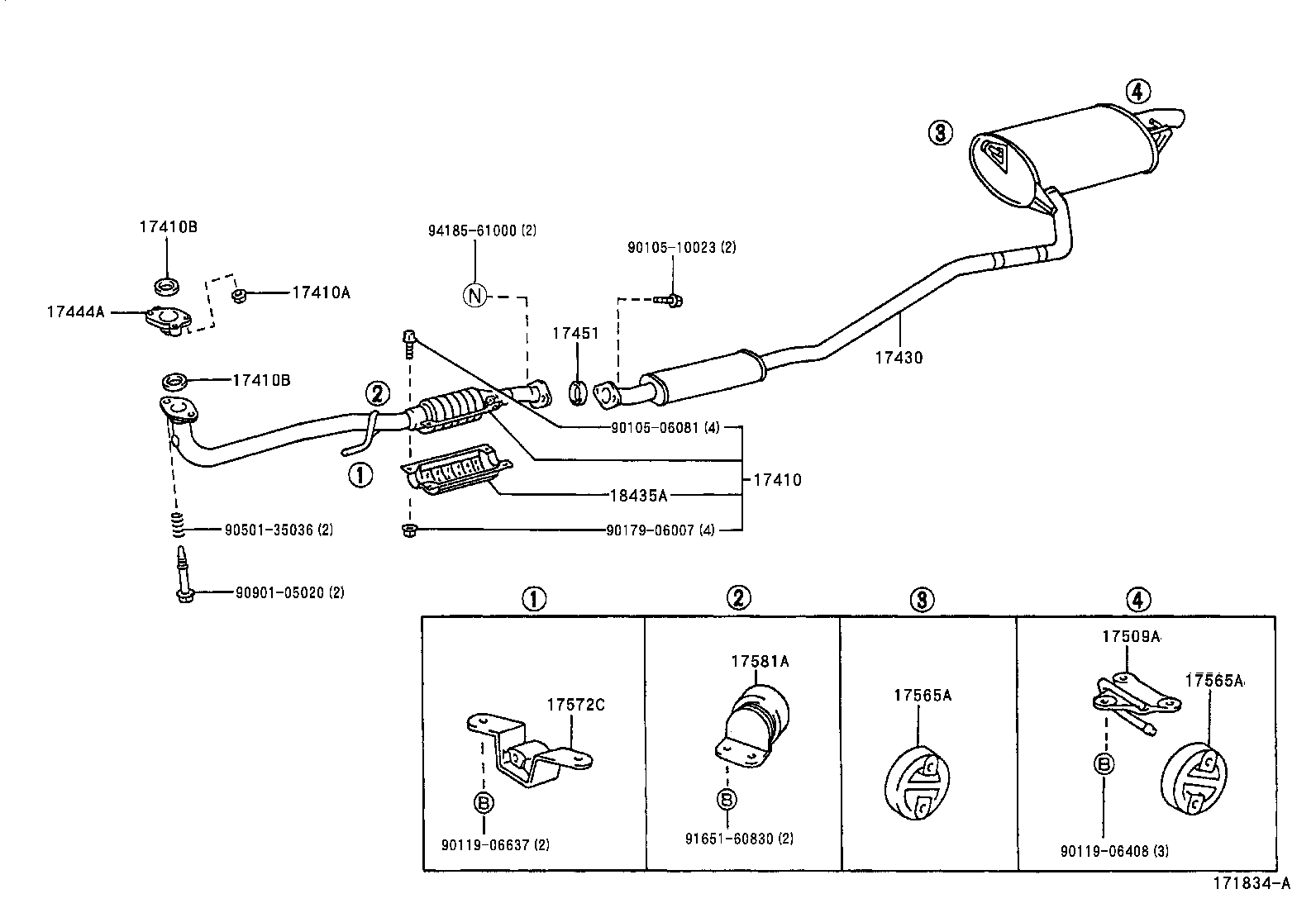

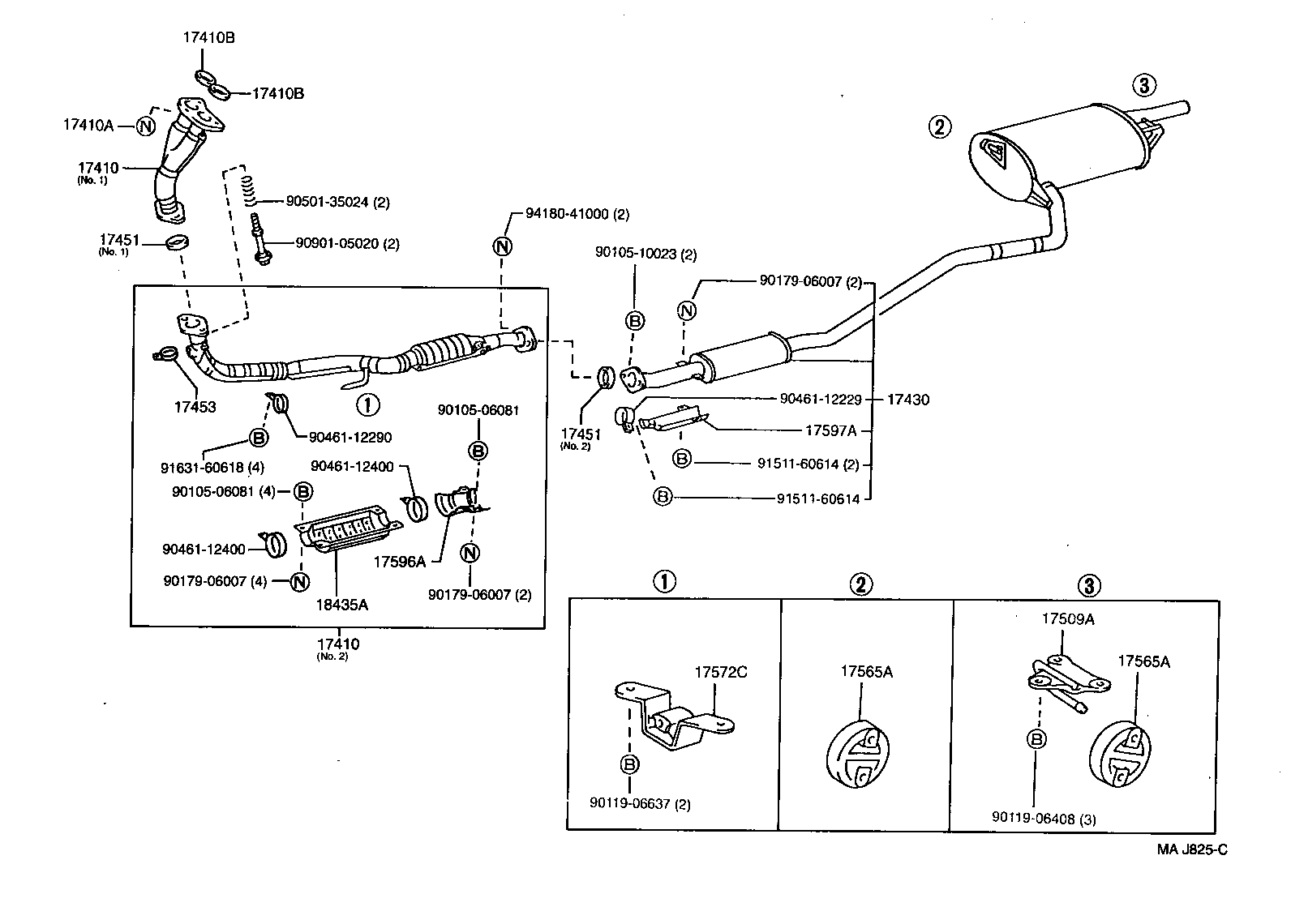

Figure 170638A 170638A 1996-01 → 1998-10 Figure 171834A 171834A 1998-10 → — Figure MAJ825C MAJ825C 1996-01 → 1997-12 Figure 170642 170642 1996-01 → 1997-12 Figure 171492B 171492B 1997-12 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17444A Spacer, Exhaust Front Pipe
17451 Gasket, Exhaust Pipe
17453 Clamp, Exhaust Pipe, NO.2
17460 Converter Assy, Catalytic W/Pipe
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17565A Support, Exhaust Pipe, NO.4
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17581A Damper, Exhaust Pipe
17596A Protector, Exhaust Pipe, Lower NO.4
17597A Protector, Exhaust Pipe, Lower NO.5
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
