Toyota Corona

1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 2 illustrations

Illustrations

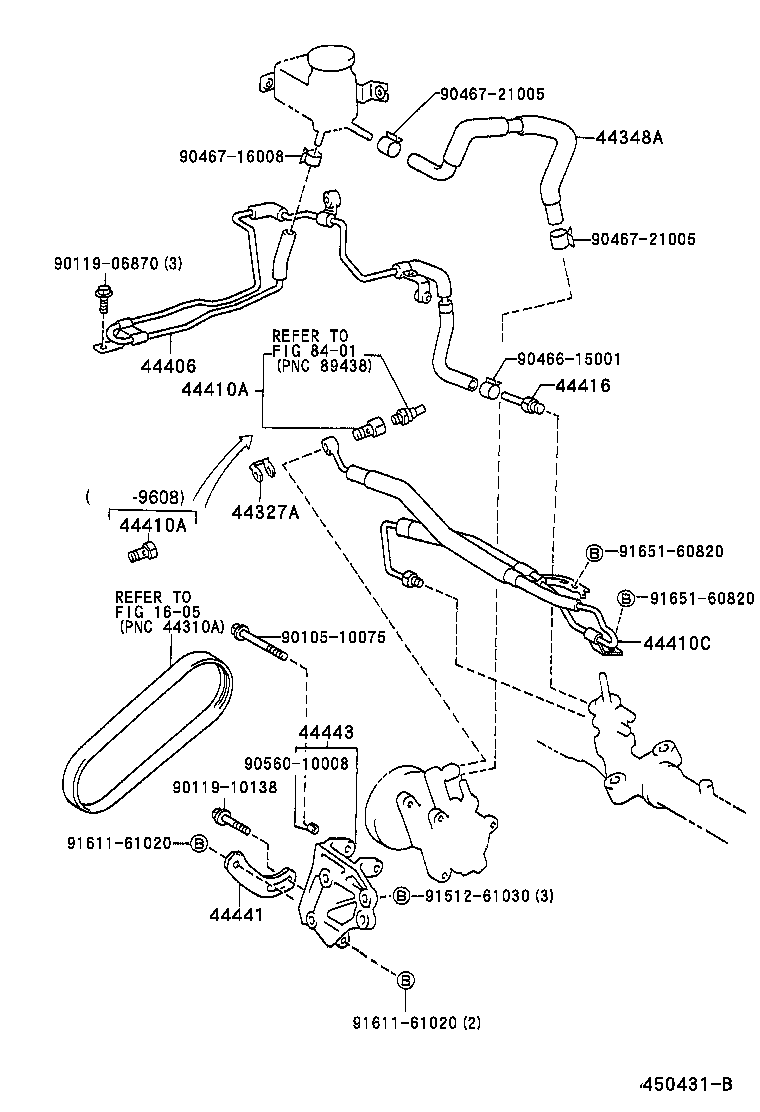

Figure 450085A 450085A 1996-01 → — Figure 450431B 450431B 1996-01 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410C Tube Assy, Pressure Feed, NO.1
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
