Toyota Corona
1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General
Discontinued model
Data version 2002-04

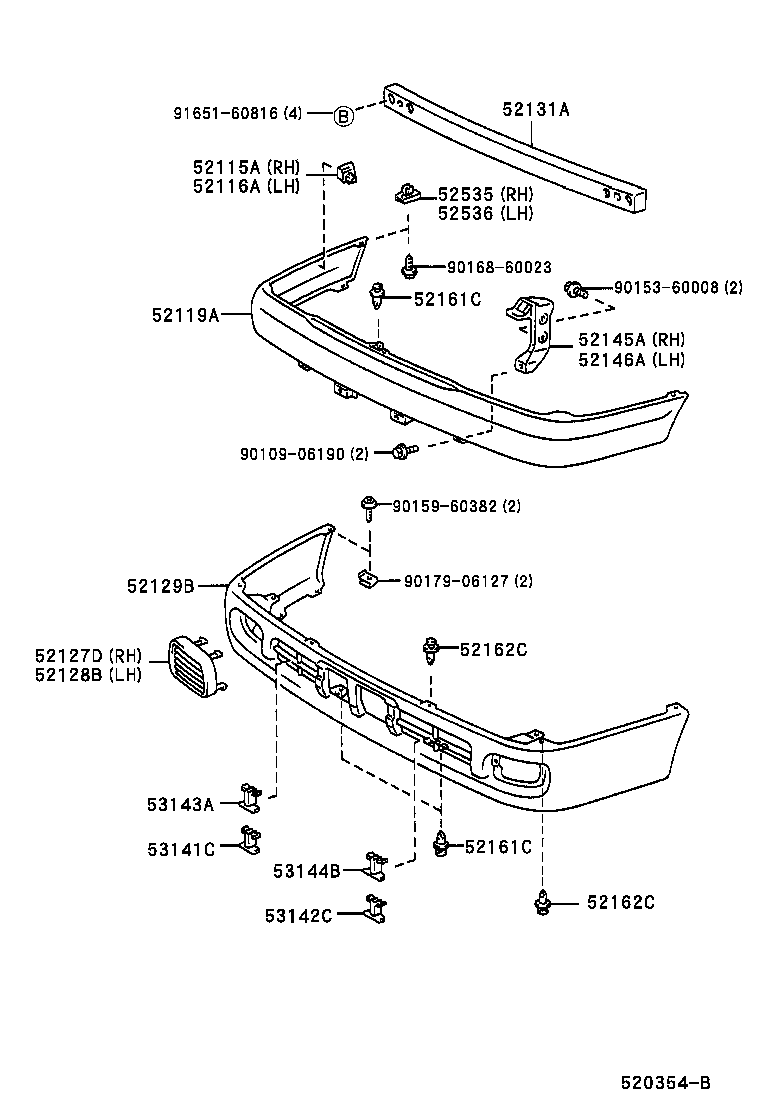

Front Bumper & Bumper Stay
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52123B | Plate, Front Bumper Reinforcement, RH |
| 52124B | Plate, Front Bumper Reinforcement, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52145A | Stay, Front Bumper, NO.2 RH |
| 52146A | Stay, Front Bumper, NO.2 LH |
| 52161C | Piece, Front Bumper |
| 52162C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 53141C | Garnish, Radiator Grille |
| 53142C | Garnish, Radiator Grille, NO.2 |
| 53143A | Garnish, Radiator Grille, NO.3 |
| 53144B | Garnish, Radiator Grille, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
