Toyota Corona

1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

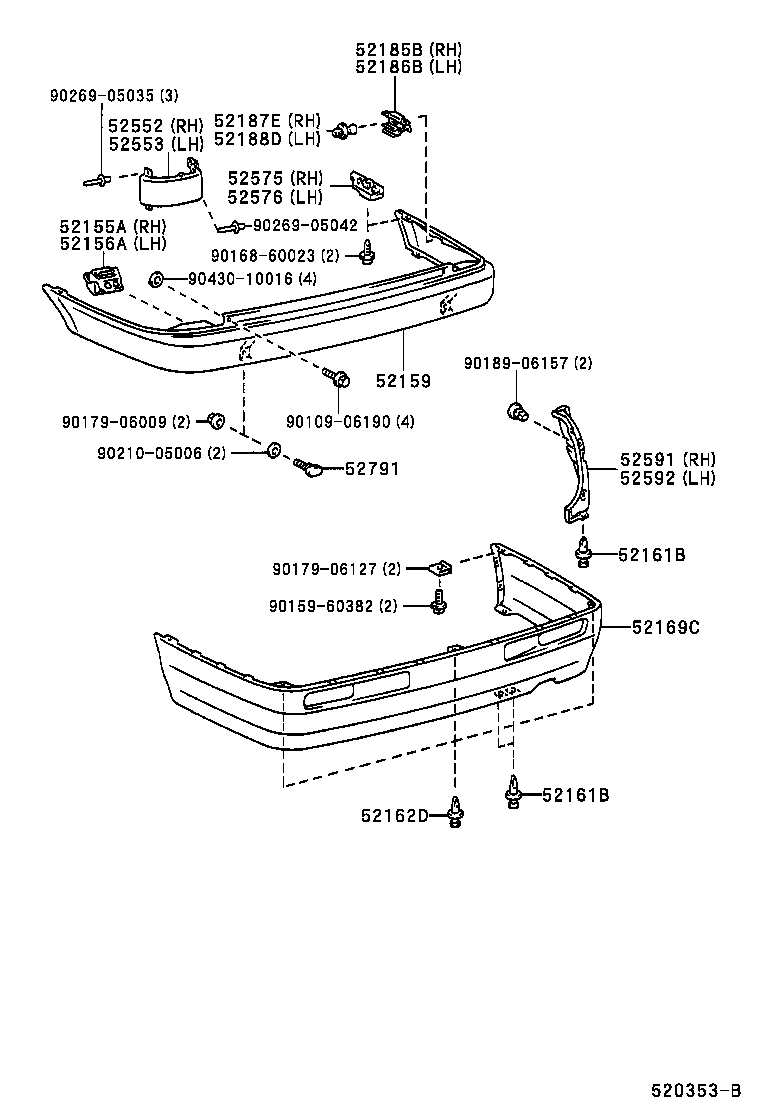

Figure NB1523 NB1523 1996-01 → 1997-12 Figure 520353B 520353B 1997-12 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162D Piece, Rear Bumper
52169C Cover, Rear Bumper, Lower
52185B Bracket, Rear Bumper Side Mounting, RH
52186B Bracket, Rear Bumper Side Mounting, LH
52187E Guide, Rear Bumper Location, RH
52188D Guide, Rear Bumper Location, LH
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52791 Bolt, Bumper Moulding Set, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
