Toyota Corona
1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General
Discontinued model
Data version 2002-04

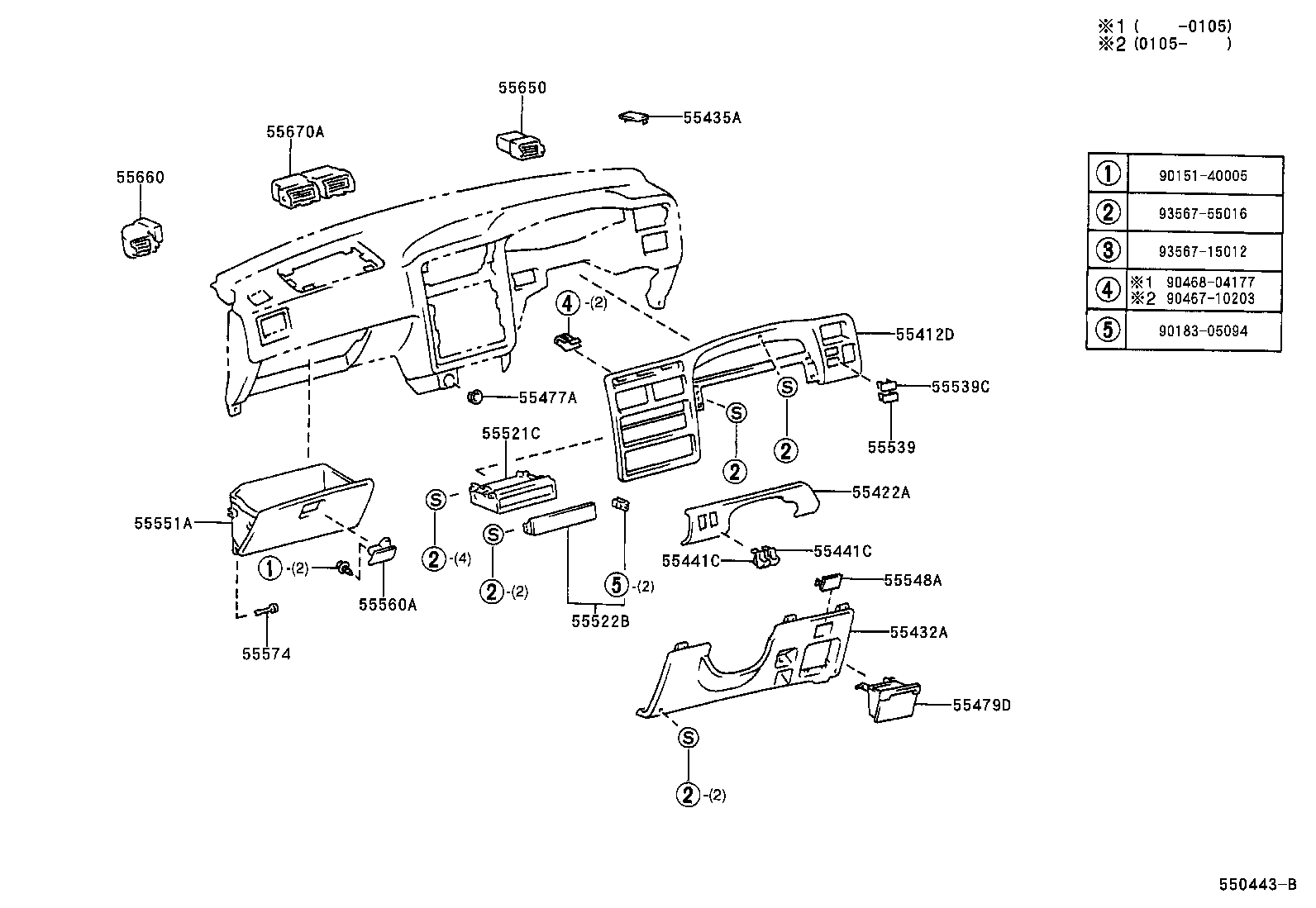

Instrument Panel & Glove Compartment
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55441C | Box, Instrument Panel Coin |
| 55466A | Retainer, Instrument Panel Safety Pad |
| 55467A | Retainer, Instrument Panel Safety Pad, NO.2 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55551A | Door, Glove Compartment, Outer |
| 55560A | Lock Assy, Glove Compartment Door |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55950A | Nozzle Assy, Defroster |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
