Toyota Corona

1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

9 part groups · 2 illustrations

Illustrations

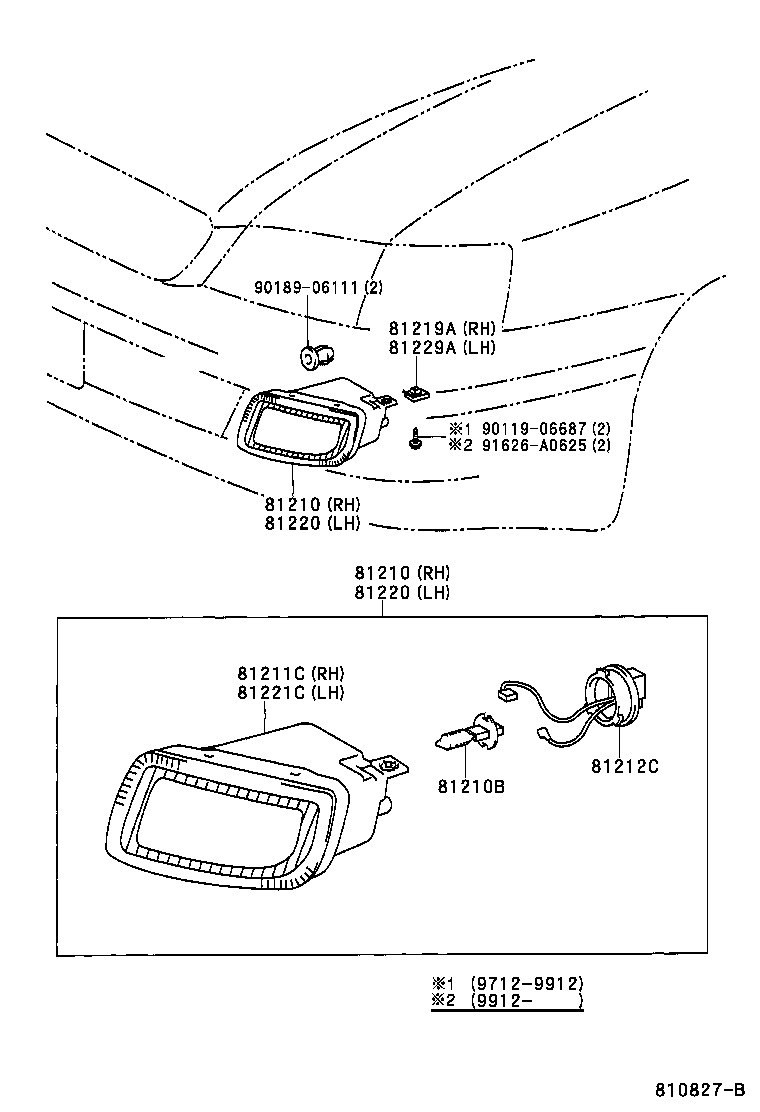

Figure 810386 810386 1996-01 → 1997-12 Figure 810827B 810827B 1997-12 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81212C Cover, Fog Lamp
81215A Socket & Wire, Fog Lamp
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
