Toyota Corona

1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

23 part groups · 9 illustrations

Illustrations

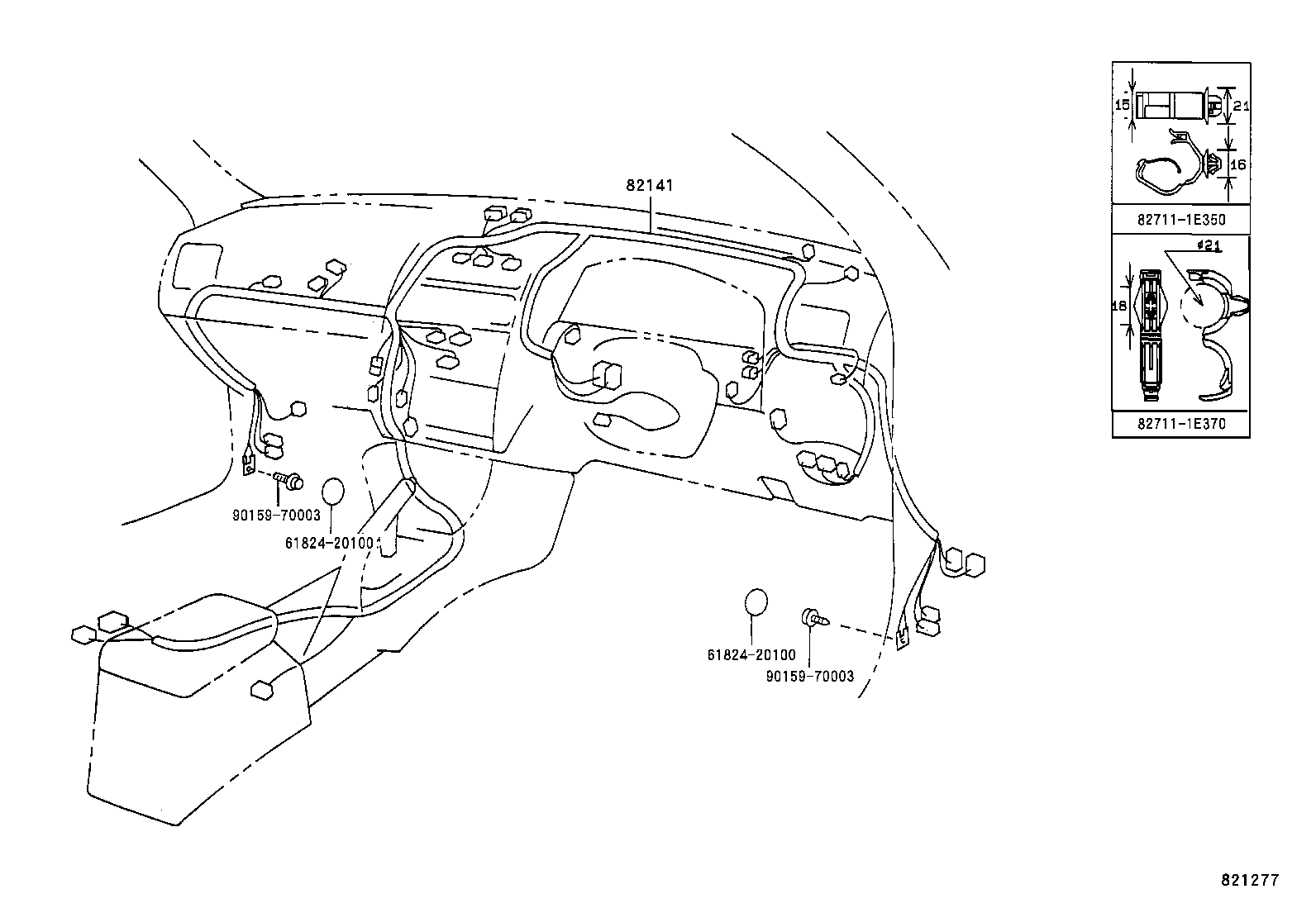

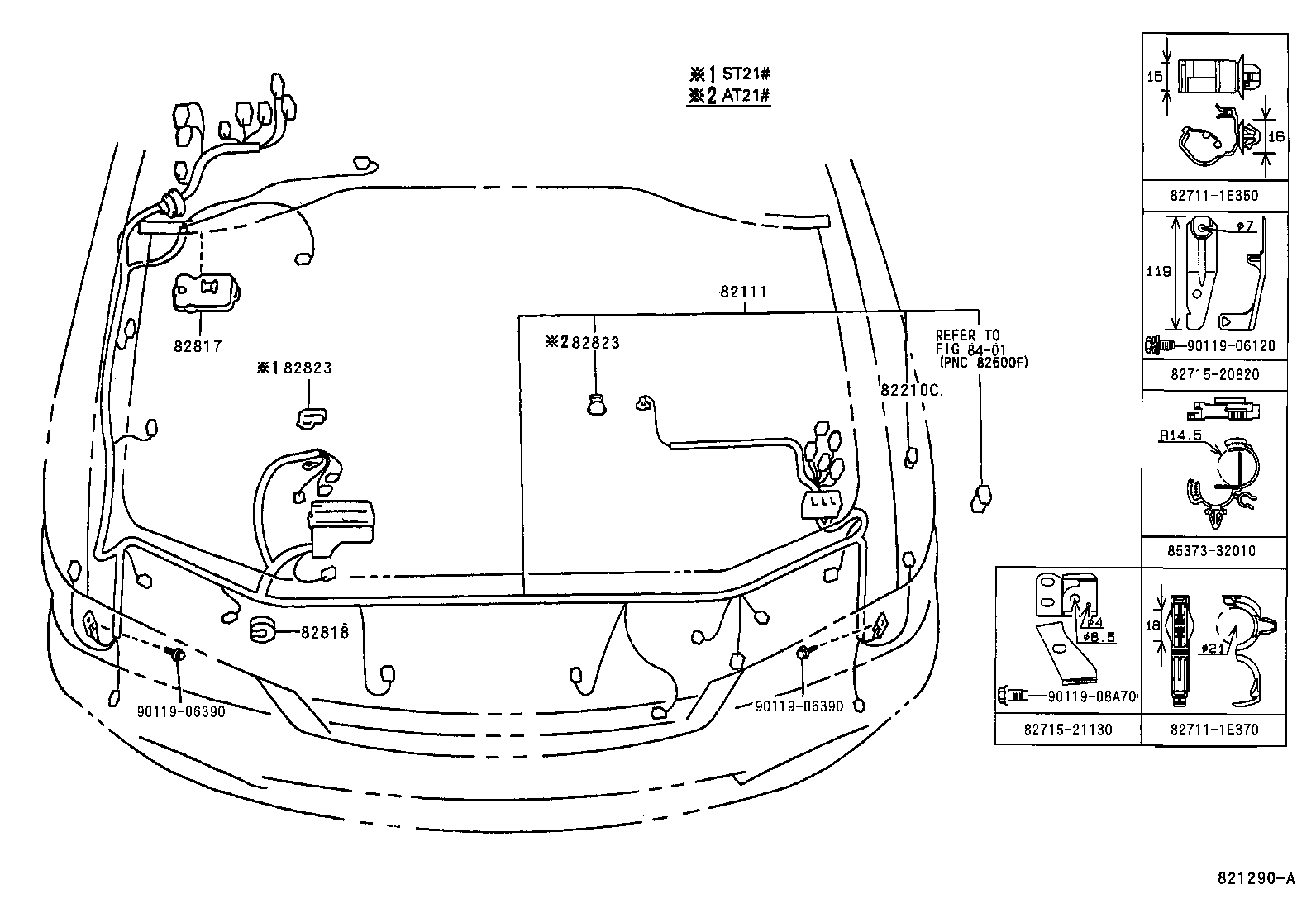

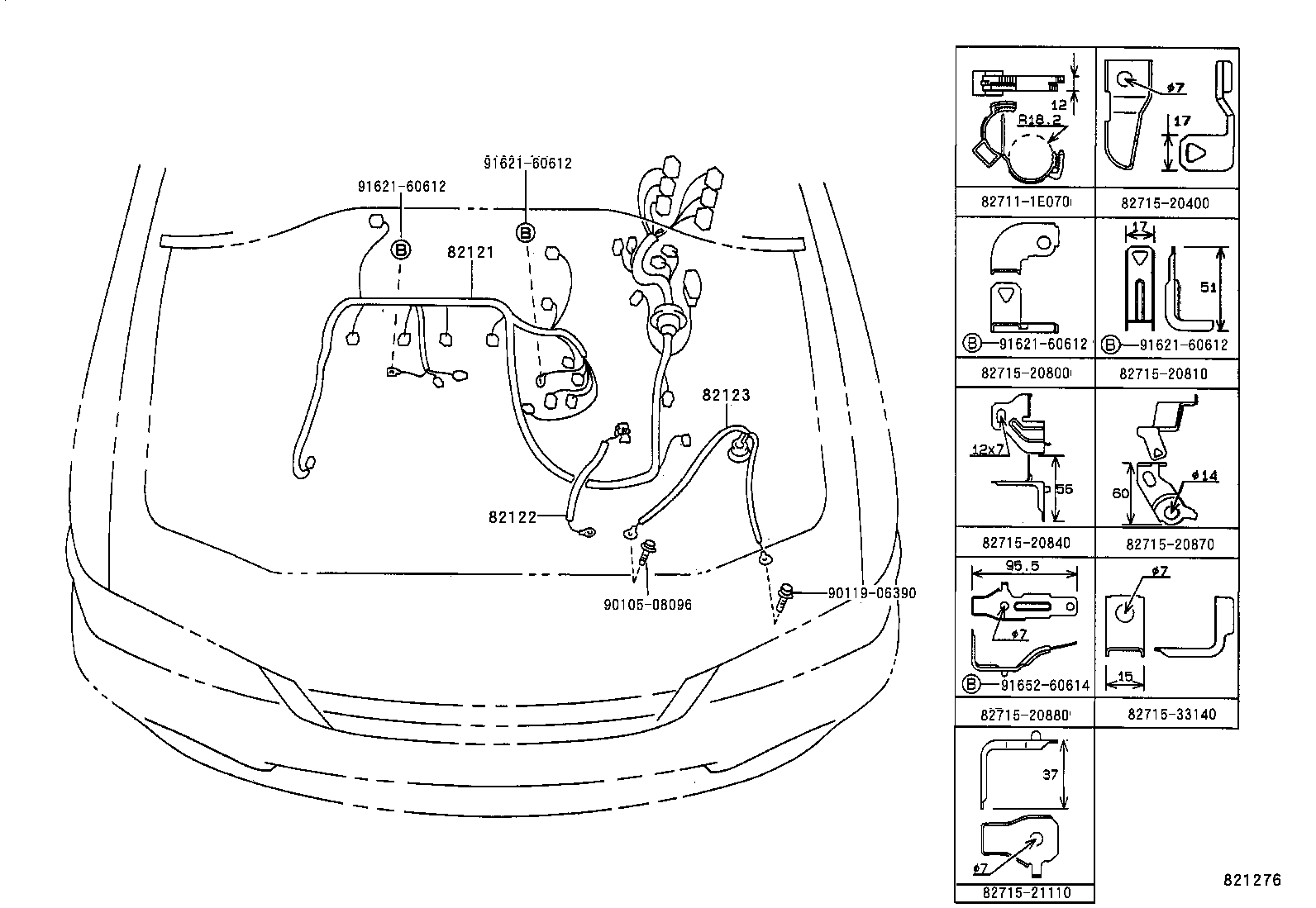

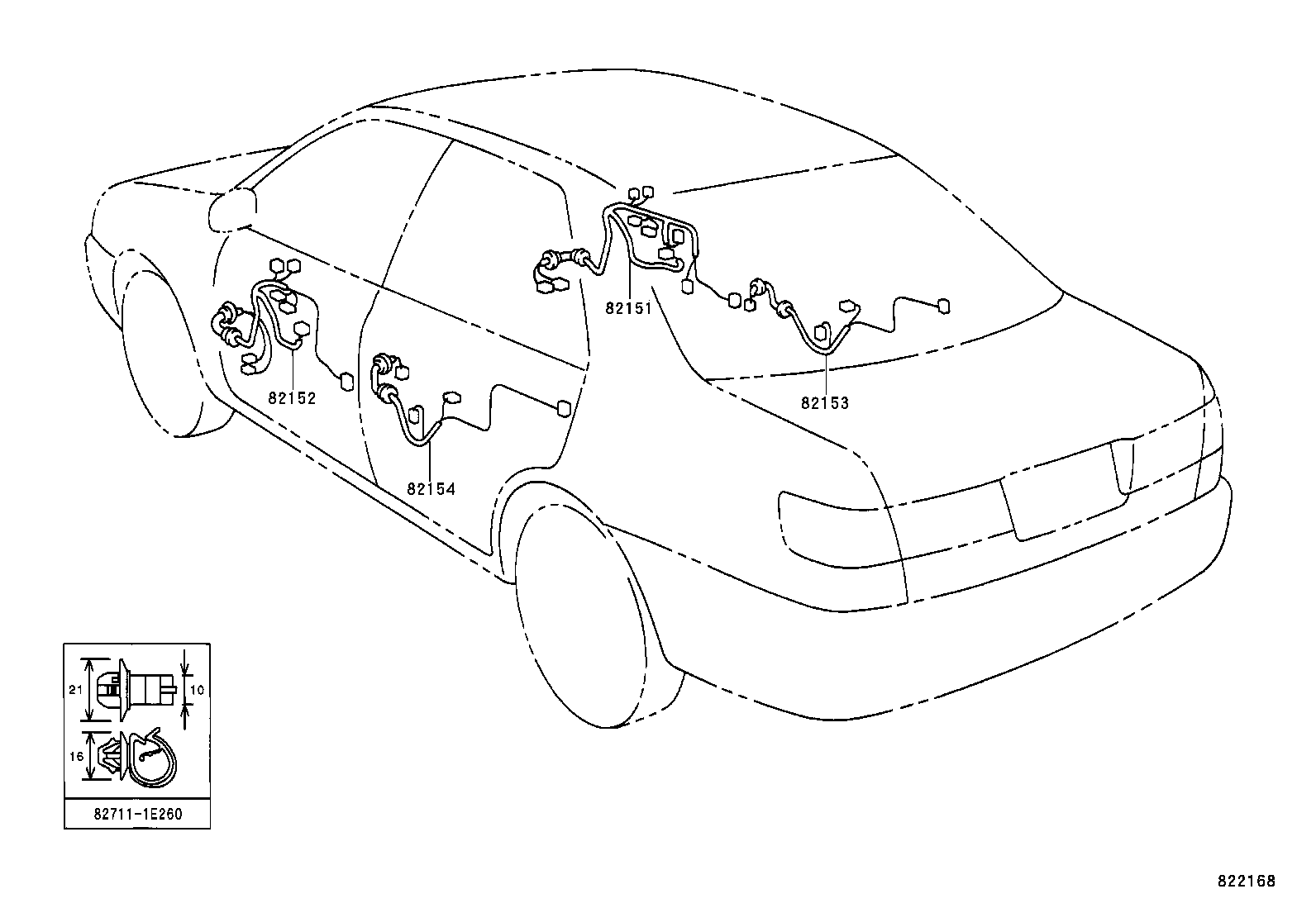

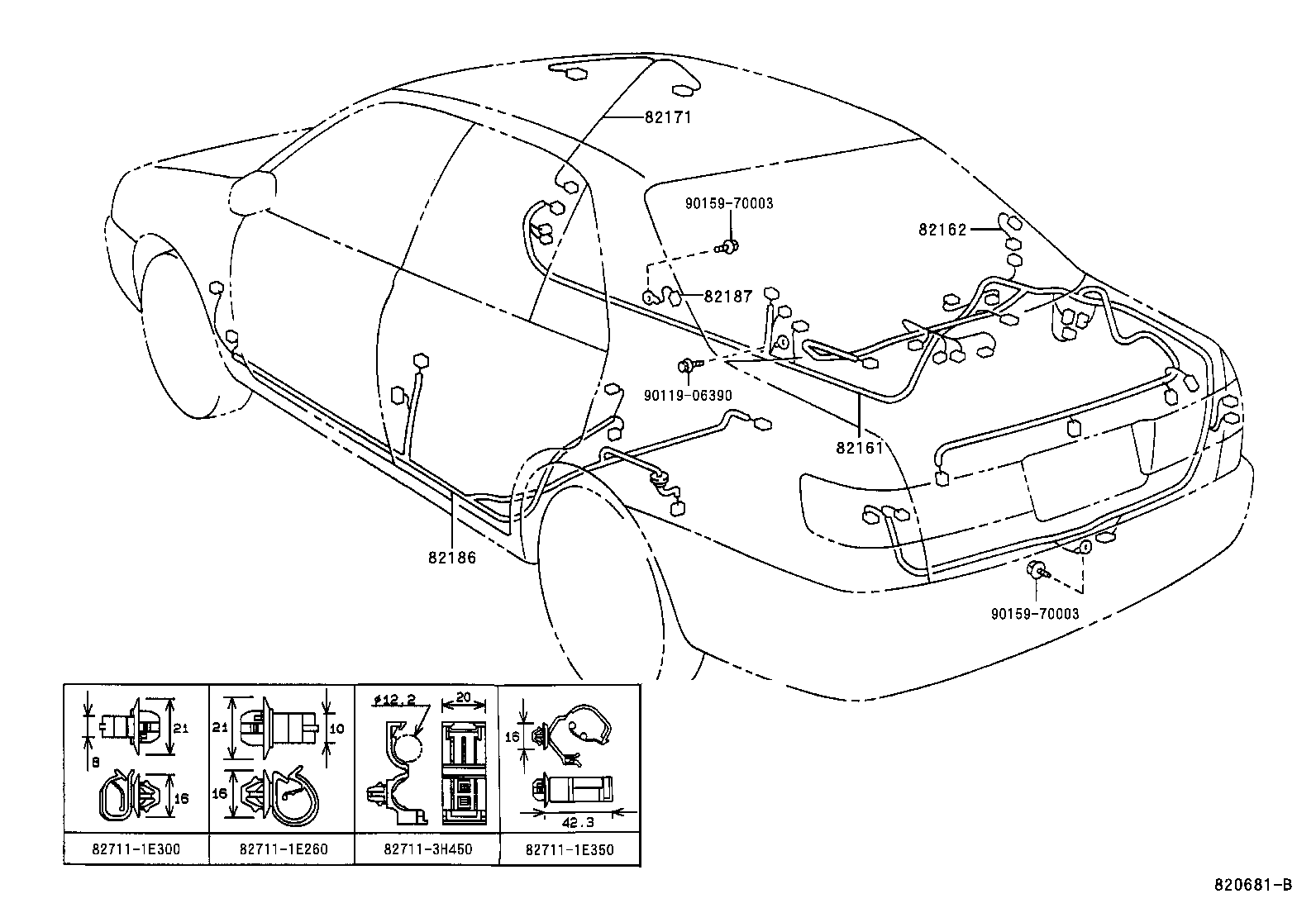

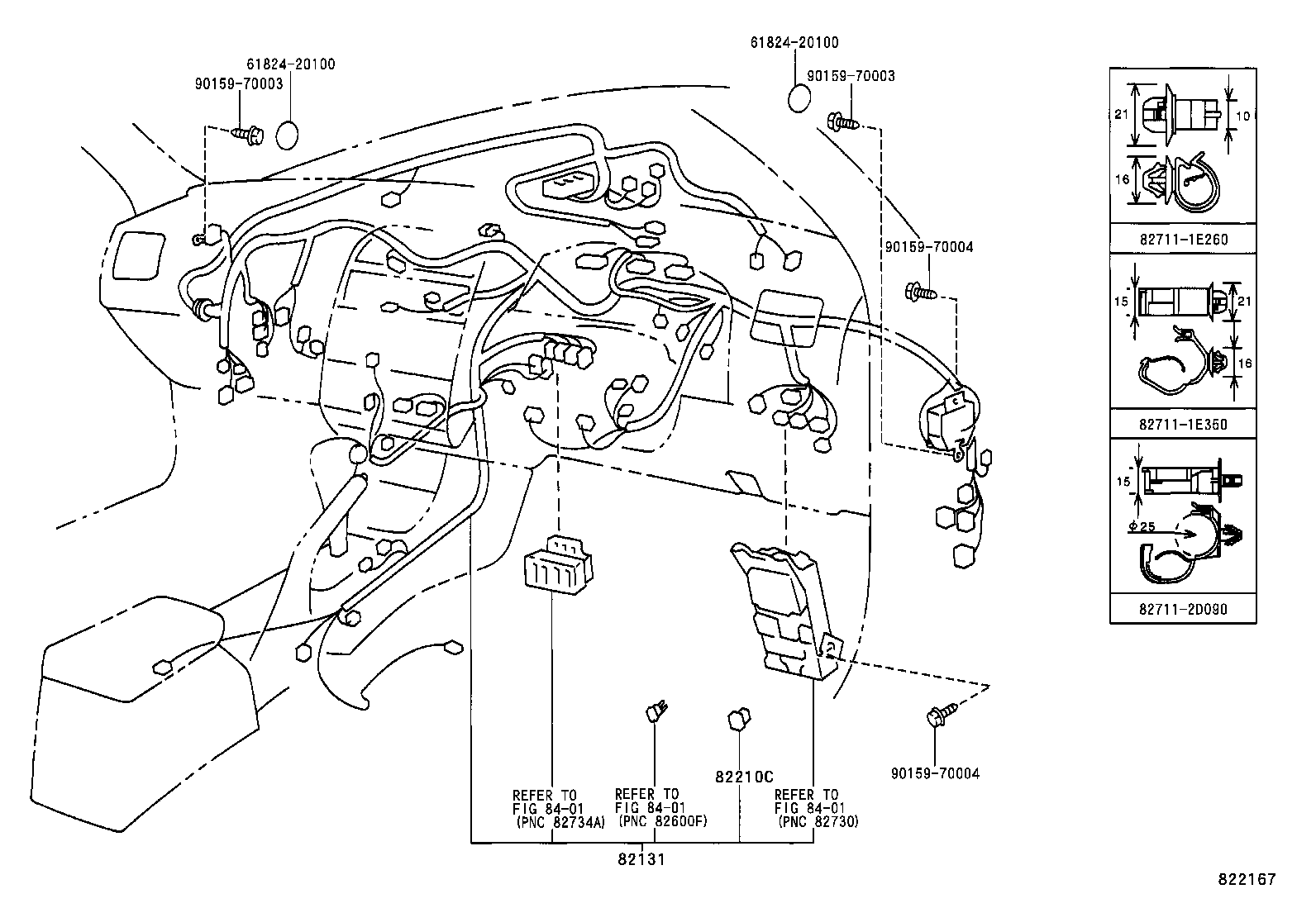

Figure 821275C 821275C 1996-01 → — Figure 821276 821276 1996-01 → — Figure 821290A 821290A 1996-01 → — Figure 822167 822167 1996-01 → — Figure 821277 821277 1996-01 → — Figure 822168 822168 1996-01 → — Figure 820681B 820681B 1996-01 → — Figure 822166 822166 1996-01 → — Figure 820668 820668 1996-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82219 Wire, Thermo Sensor
82221 Wire, Oil Pressure Switch
82817 Protector, Wiring Harness, NO.1
82818 Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
