Toyota Corona
1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General
Discontinued model
Data version 2002-04
Meter
20 part groups · 3 illustrations
Part groups

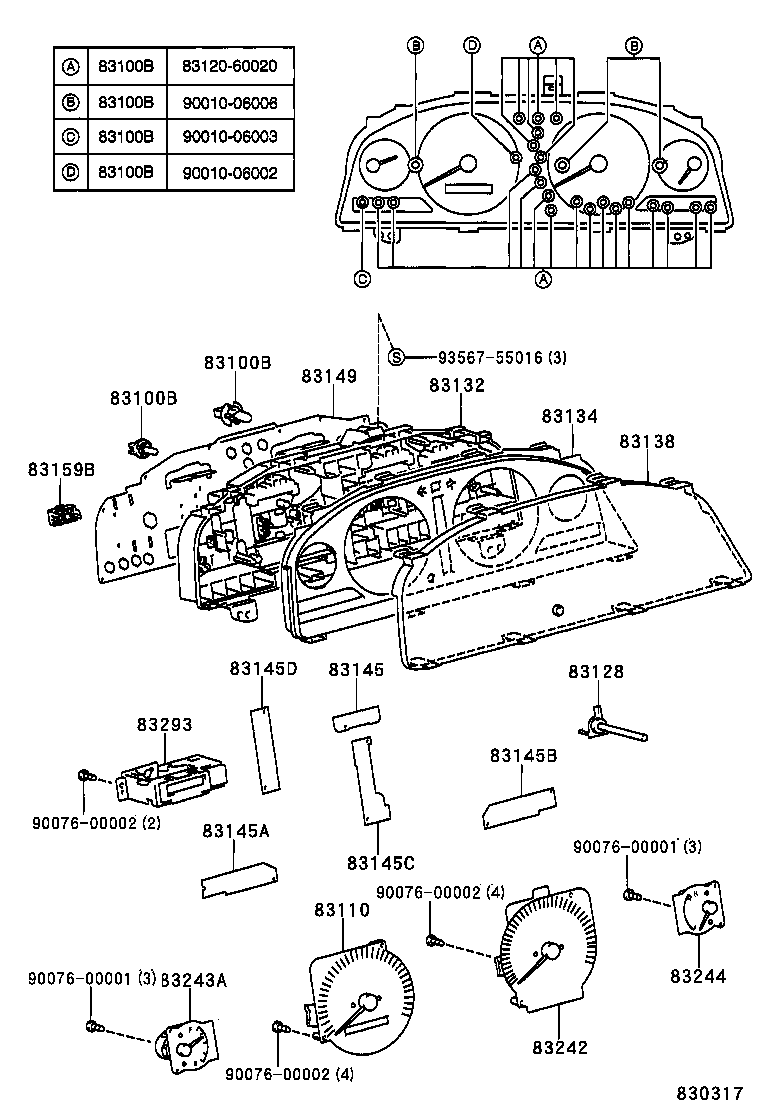

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83149 | Plate, Meter Circuit |
| 83159B | Relay Assy, Meter |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83293 | Computer, Total Counter Module |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
