Toyota Corona

1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 2 illustrations

Illustrations

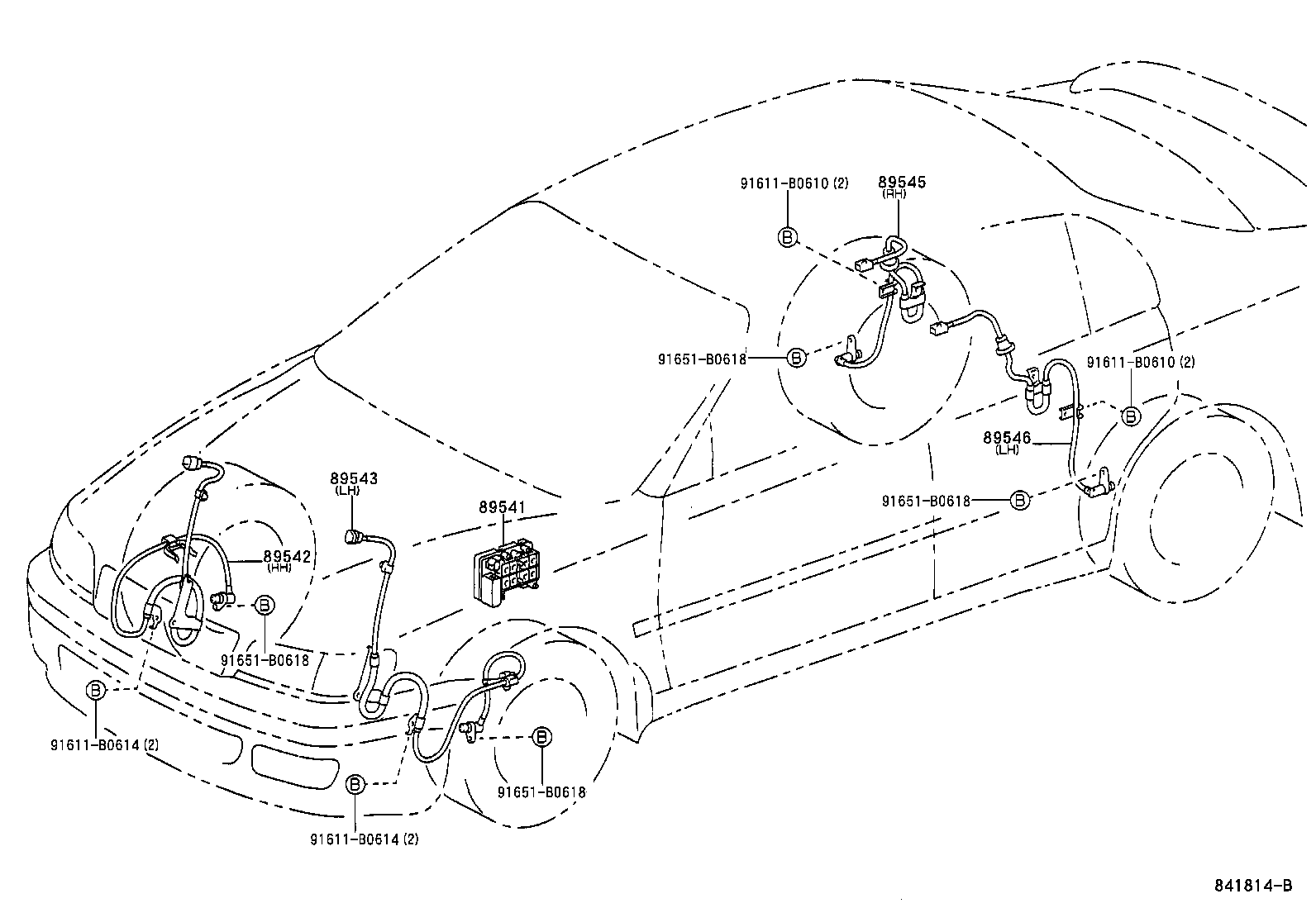

Figure 843302 843302 1996-01 → 1997-12 Figure 841814B 841814B 1997-12 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
89540 Computer Assy, Skid Control
89541 Computer, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
