Toyota Corona

1996-01 → 2001-12 · chassis AT210,ST210 · catalogue 271340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 4 illustrations

Illustrations

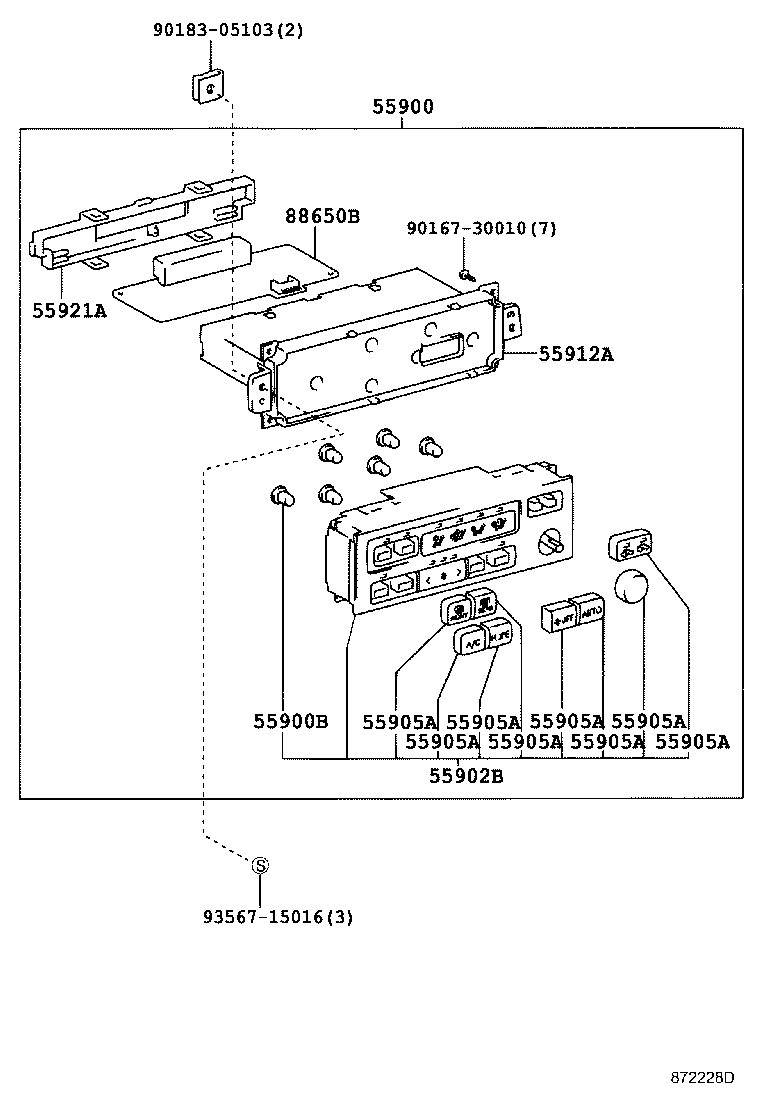

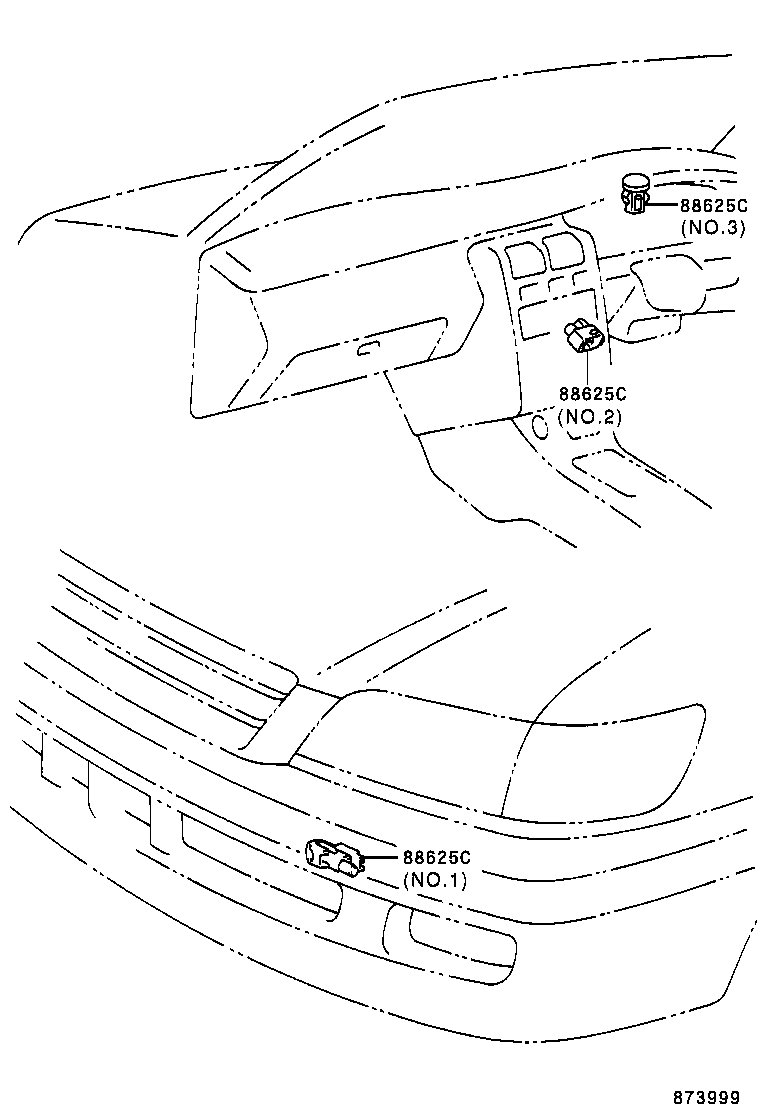

Figure 873456 873456 1996-01 → 1997-12 Figure 872228D 872228D 1997-12 → — Figure 874001 874001 1996-01 → — Figure 873999 873999 1996-01 → —

Part groups

PNCDescription
55832A Connector, Instrument Panel Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905D Knob Sub-assy, Control
55912A Housing, Heater Control
55921A Retainer, Heater Control
81942A Sheet, Heater Control Name, NO.1
88625C Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
