Toyota Corona Sed (UKP)

1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 3 illustrations

Illustrations

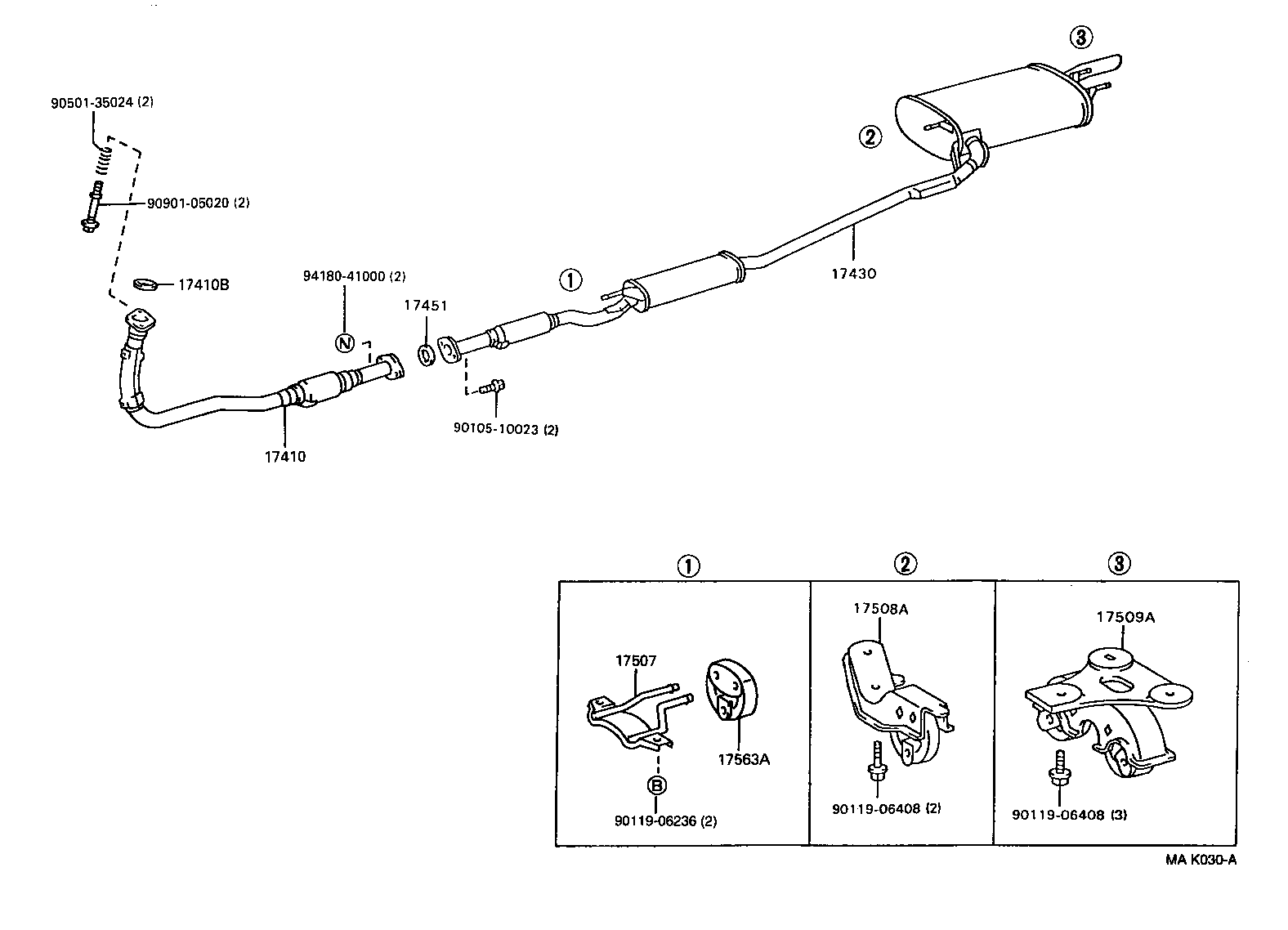

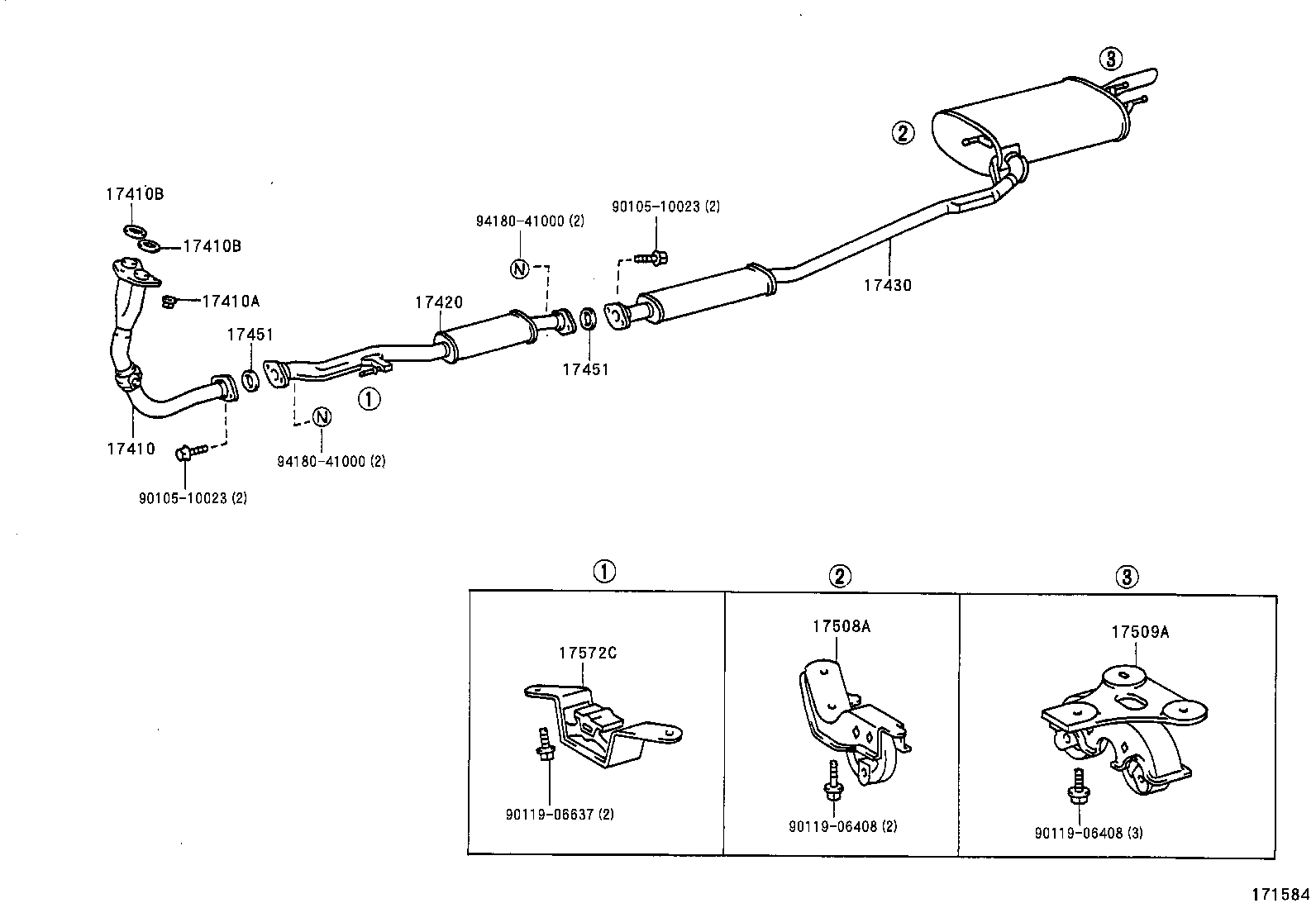

Figure MAF471A MAF471A 1996-01 → 1997-10 Figure 171584 171584 1996-01 → 1997-10 Figure MAK030A MAK030A 1996-01 → 1997-10

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17563A Support, Exhaust Pipe, NO.3
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
