Toyota Corona Sed (UKP)

1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 3 illustrations

Illustrations

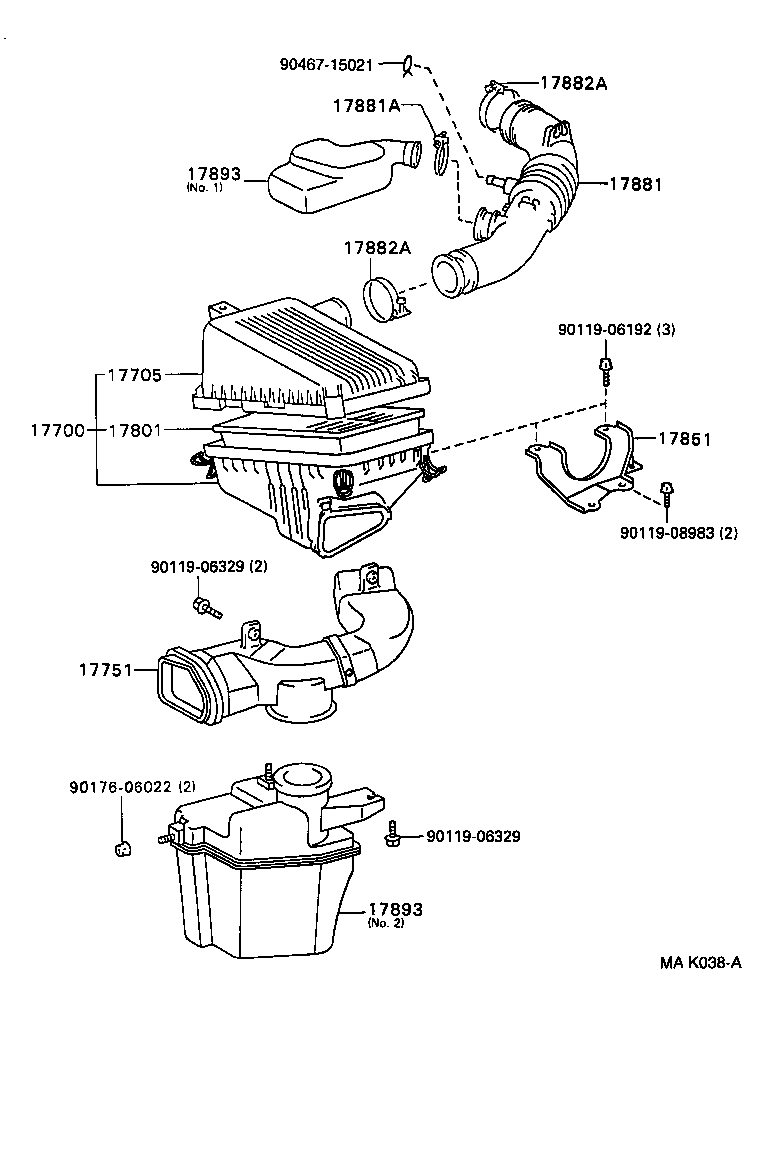

Figure 171606 171606 1996-01 → 1997-10 Figure MAK065C MAK065C 1996-01 → 1997-10 Figure MAK038A MAK038A 1996-01 → 1997-10

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17761 Cap, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
