Toyota Corona Sed (UKP)

1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 4 illustrations

Illustrations

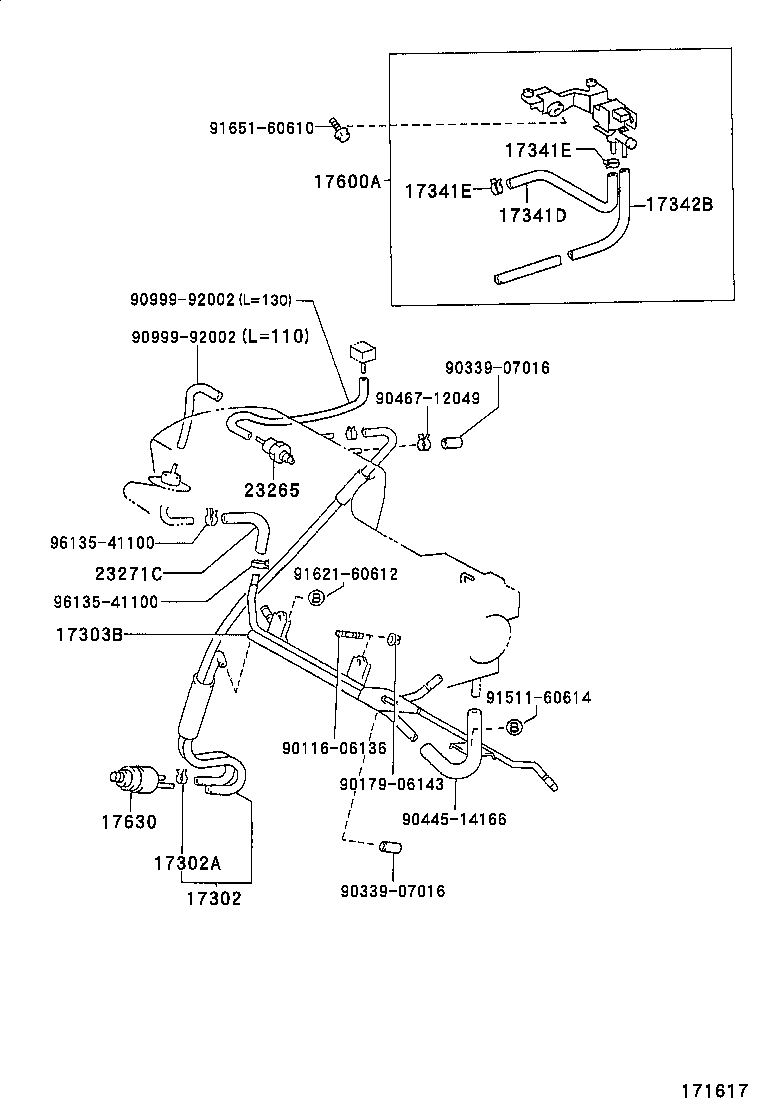

Figure 170021 170021 1996-01 → 1997-10 Figure 171617 171617 1996-01 → 1997-10 Figure 171376A 171376A 1996-01 → 1997-10 Figure 171604 171604 1996-01 → 1997-10

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17600A Valve Assy, Air By-pass W/Hose
17630 Valve Assy, Air Control
17650E Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23271C Hose, Fuel
25693A Damper, Egr Vacuum Modulator
25770 Hose Assy, Vacuum Transmitting, NO.2
25819 Valve Assy, Vacuum Regulating
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
