Toyota Corona Sed (UKP)

1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

13 part groups · 3 illustrations

Illustrations

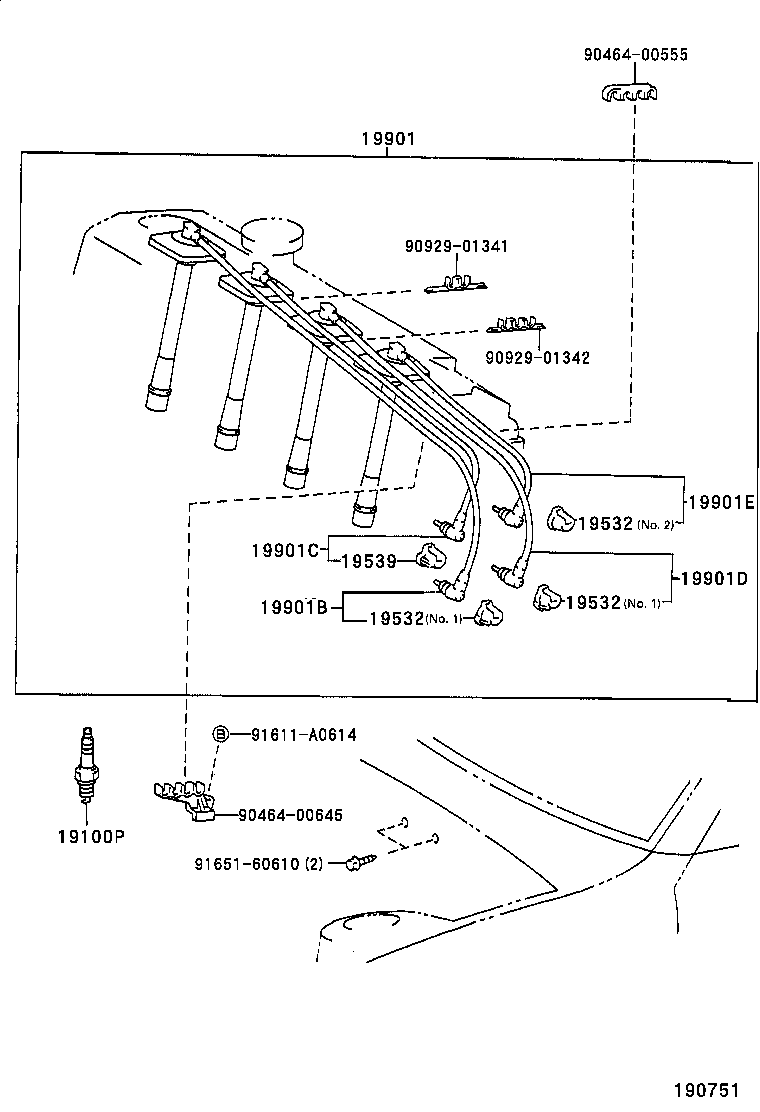

Figure 190961 190961 1996-01 → 1997-10 Figure NA0020 NA0020 1996-01 → 1997-10 Figure 190751 190751 1996-01 → 1997-10

Part groups

PNCDescription
19100P Plug, Spark
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
