Toyota Corona Sed (UKP)

1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

17 part groups · 5 illustrations

Illustrations

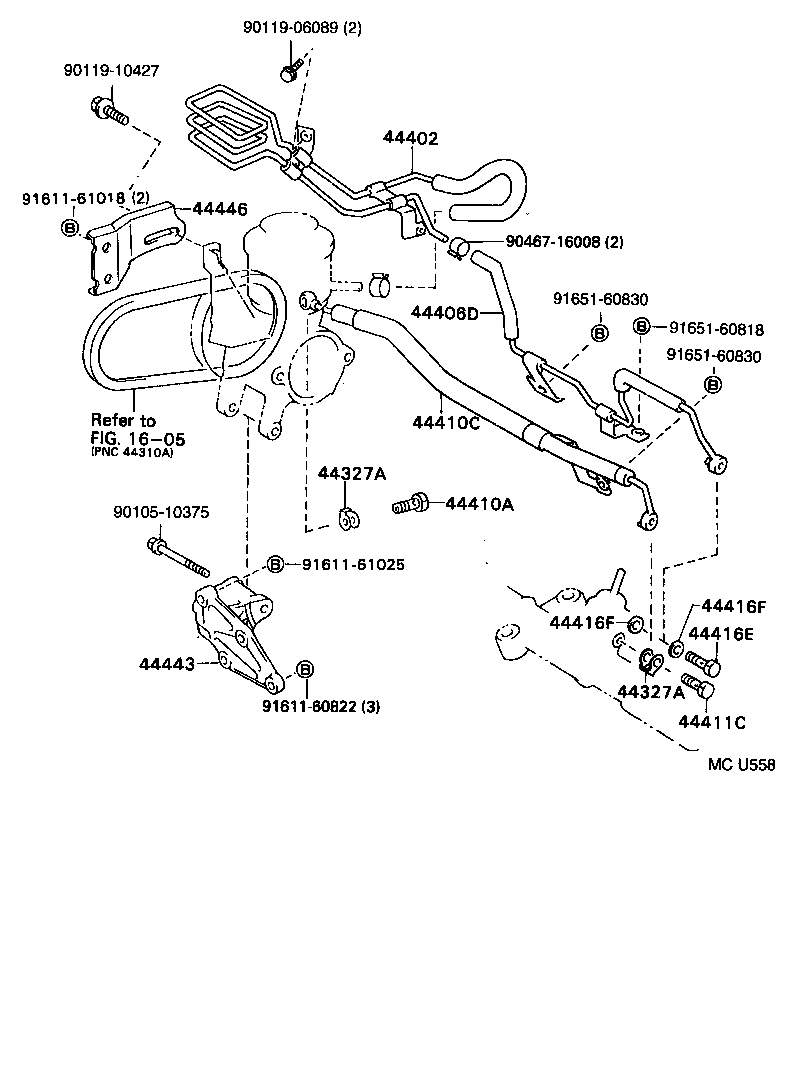

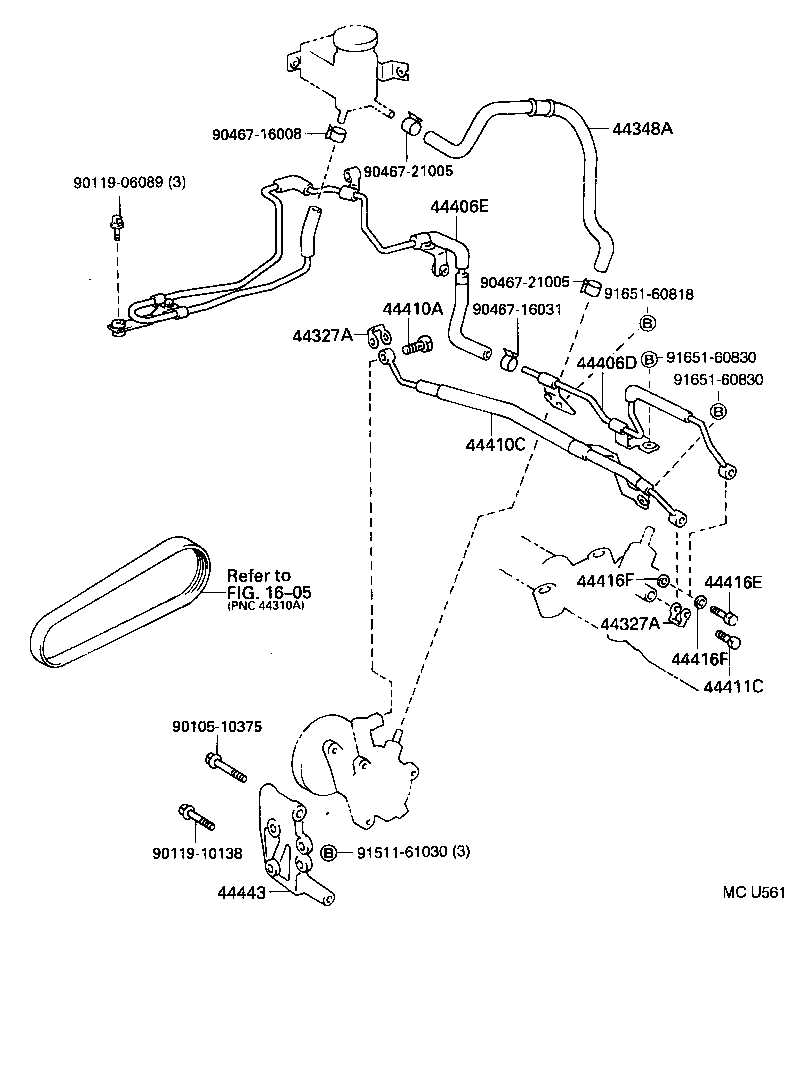

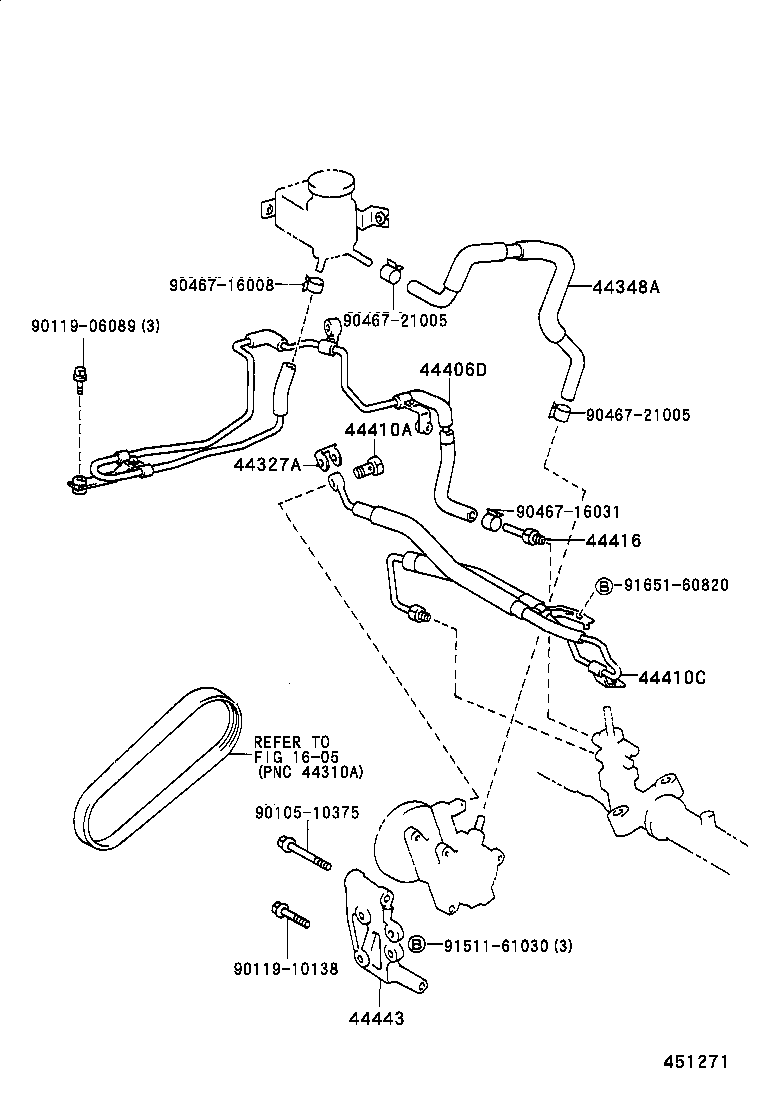

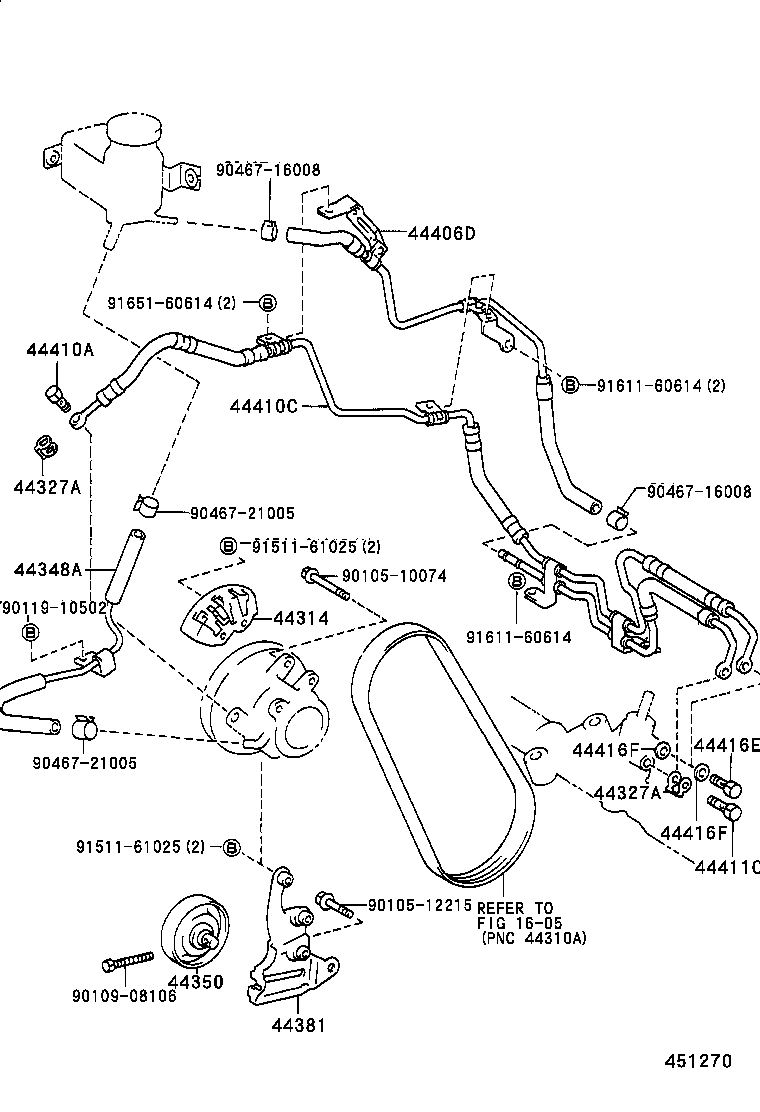

Figure 451269 451269 1996-01 → — Figure MCU558 MCU558 1996-01 → — Figure 451270 451270 1996-01 → — Figure 451271 451271 1996-01 → — Figure MCU561 MCU561 1996-01 → —

Part groups

PNCDescription
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410C Tube Assy, Pressure Feed, NO.1
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416E Bolt, Union(FOR RETURN TUBE)
44416F Gasket(FOR RETURN TUBE)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
