Toyota Corona Sed (UKP)
1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General
Discontinued model
Data version 1999-10

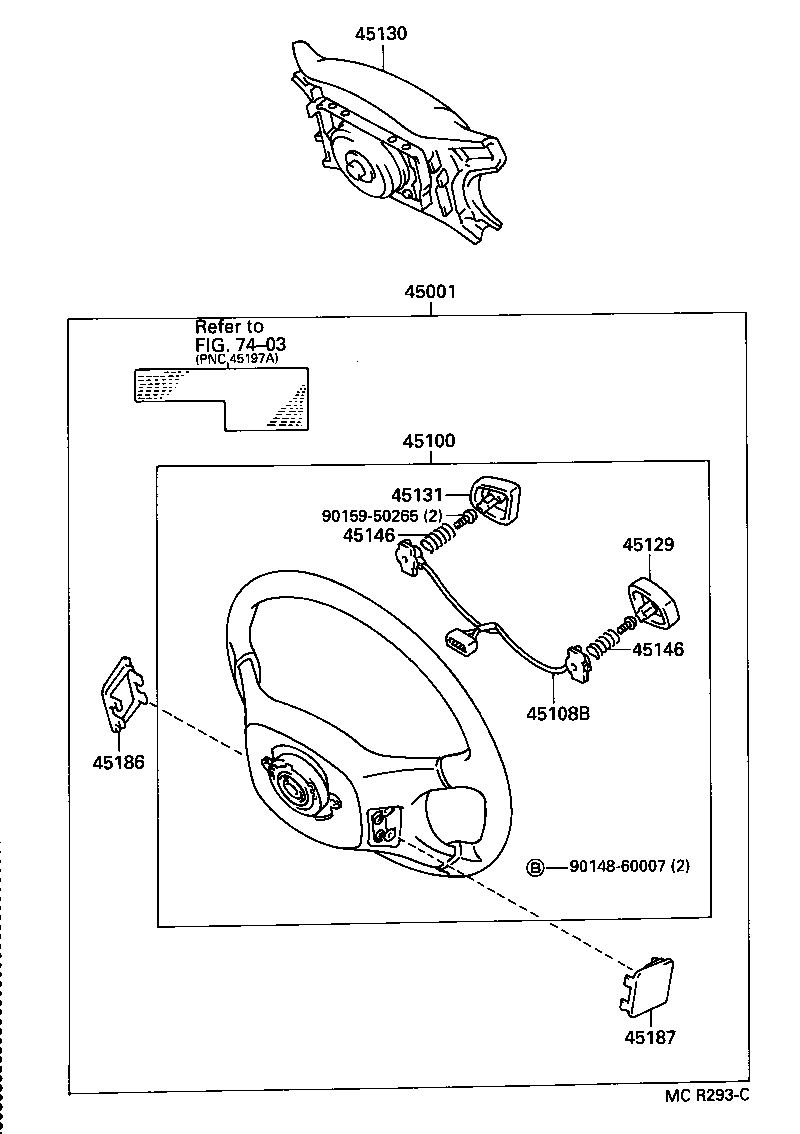

Steering Wheel
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45001 | Airbag Kit, Sttering Wheel |
| 45100 | Wheel Assy, Steering |
| 45108B | Button Sub-assy, Horn(FOR STEERING WHEEL ASSY) |
| 45129 | Button, Horn, NO.2 |
| 45130 | Button Assy, Horn |
| 45131 | Button, Horn, NO.1 |
| 45146 | Spring, Horn Button Contact |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45201P | Nut, Steering Wheel Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
