Toyota Corona Sed (UKP)
1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General
Discontinued model
Data version 1999-10

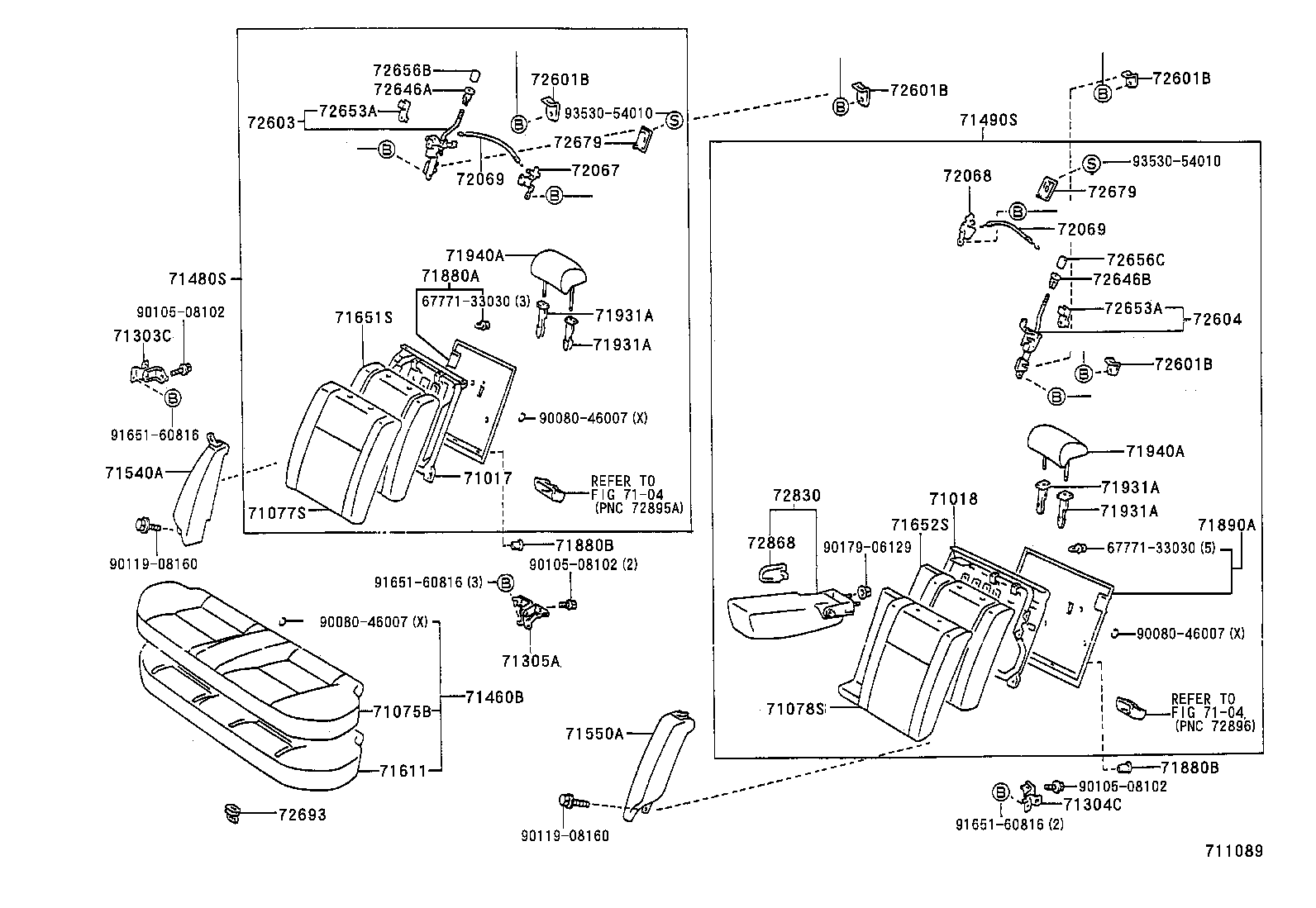

Rear Seat & Seat Track
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71017A | Frame Sub-assy, Rear Seatback |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71398A | Holder, Rear Seatback |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71540A | Back Assy, Rear Side Seat, RH |
| 71550A | Back Assy, Rear Side Seat, LH |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71880A | Carpet Assy, Rear Seatback Board, RH |
| 71880B | Clip(FOR REAR SEATBACK CARPET) |
| 71890A | Carpet Assy, Rear Seatback Board, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 72067 | Lever Sub-assy, Rear Back Lock Control, RH |
| 72068 | Lever Sub-assy, Rear Back Lock Control, LH |
| 72069 | Cable Sub-assy, Rear Seatback Lock Control |
| 72601B | Striker Sub-assy, Rear Seatback Lock |
| 72603 | Lock Sub-assy, Rear Seatback, RH |
| 72604 | Lock Sub-assy, Rear Seatback, LH |
| 72646A | Grommet, Rear Seatback Stop Button |
| 72646B | Grommet, Rear Seatback Stop Button |
| 72653A | Snap, Rear Seatback Lock Rod |
| 72656B | Button, Rear Seatback Stop Release |
| 72656C | Button, Rear Seatback Stop Release |
| 72679 | Bezel, Rear Seatback Lock Control |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72868 | Cover, Center Armrest Hinge, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
