Toyota Corona Sed (UKP)

1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General

Discontinued model Data version 1999-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 2 illustrations

Illustrations

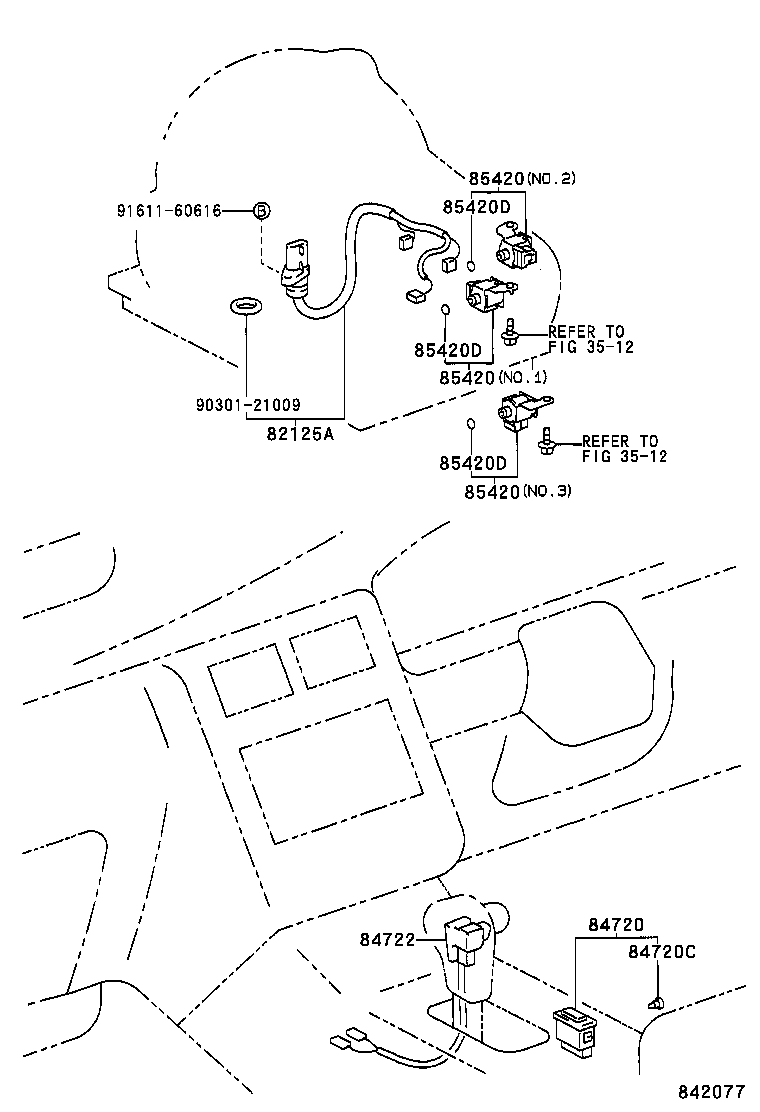

Figure 842076 842076 1996-01 → — Figure 842077 842077 1996-01 → —

Part groups

PNCDescription
82125A Wire, Transmission
82125D Plate, Transmission Wire Lock
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
