Toyota Corona Sed (UKP)
1996-01 → 1997-10 · chassis AT190,CT190,ST191 · catalogue 273330 · General
Discontinued model
Data version 1999-10

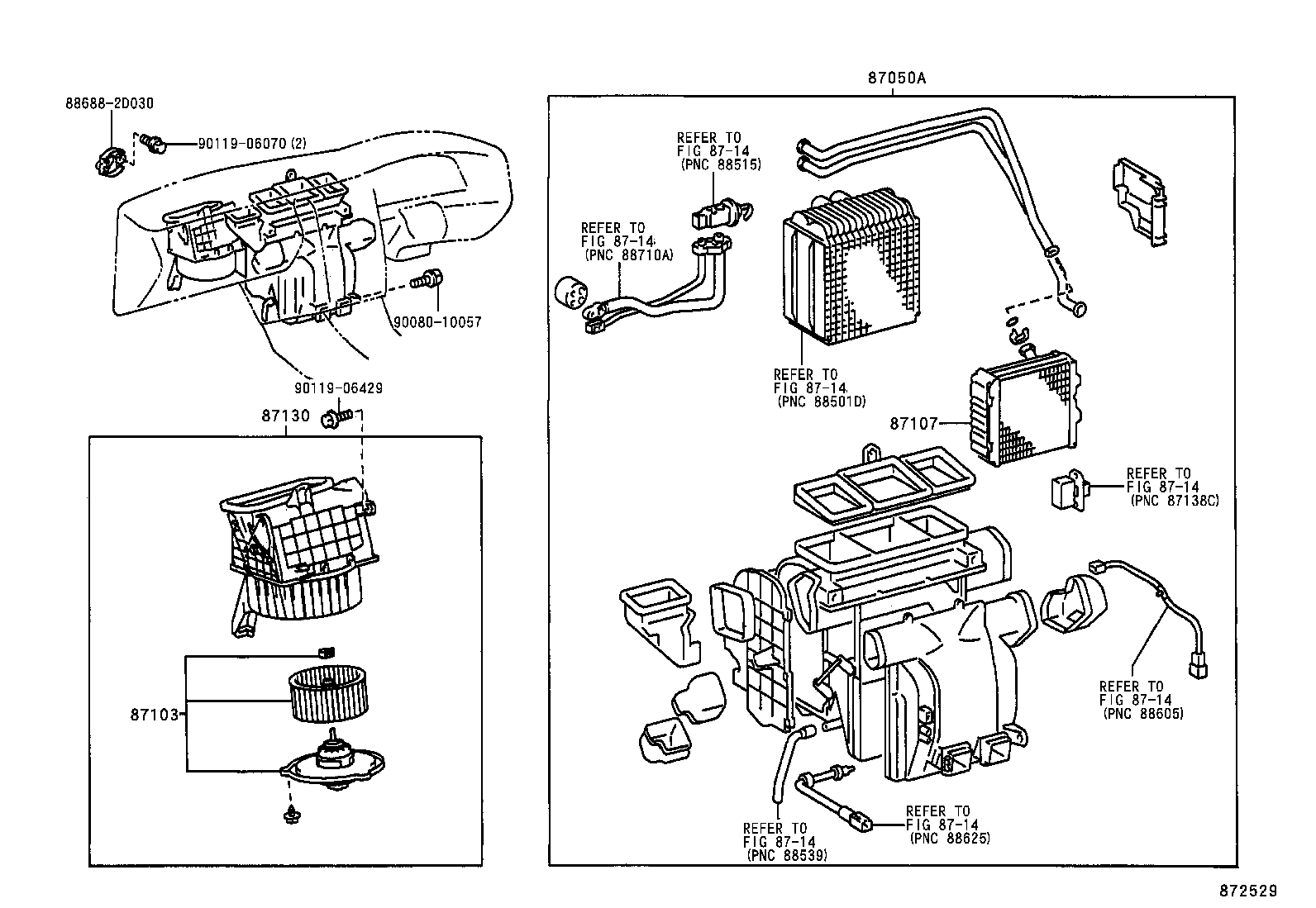

Heating & Air Conditioning - Heater Unit & Blower
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55908B | Cable Sub-assy, Air Inlet Damper Control |
| 87050A | Radiator Assy, Air Conditioner |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87130 | Blower Assy, Heater, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
