Toyota Corona
1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General
Discontinued model
Data version 2003-10

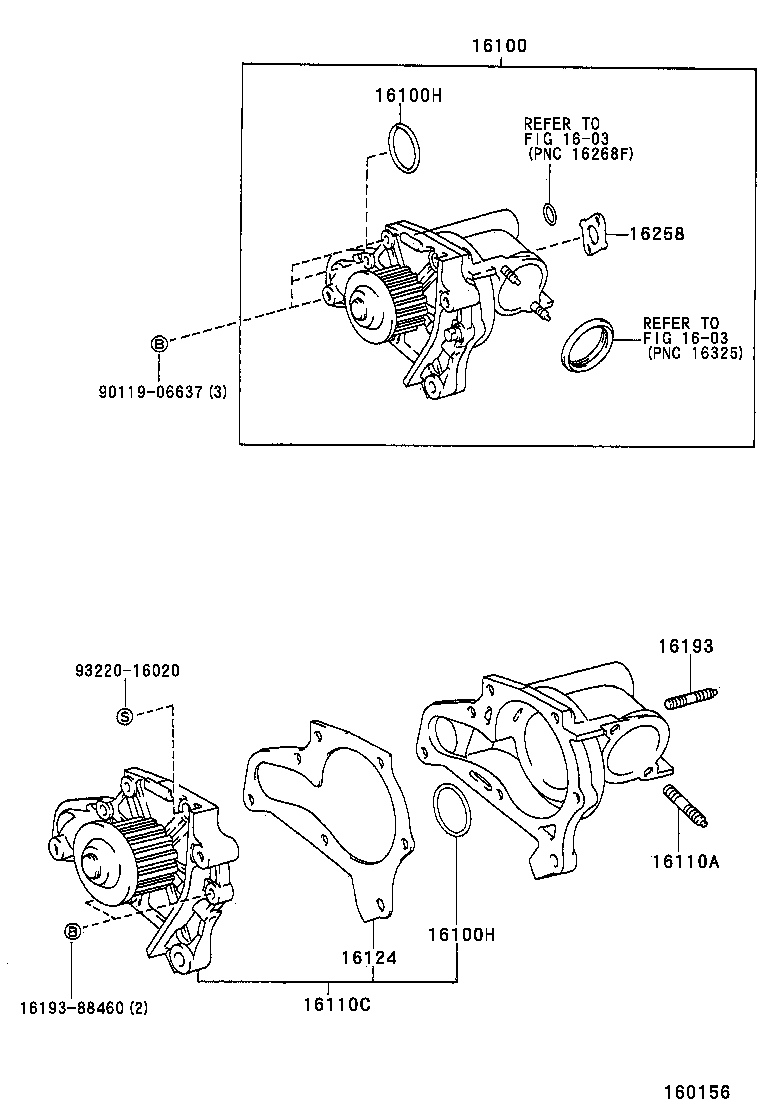

Water Pump
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16110 | Pump Assy, Water, W/O Coupling |
| 16110A | Bolt, Stud(FOR WATER OUTLET SETTING) |
| 16110C | Pump Assy, Water, W/O Cover |
| 16124 | Gasket, Water Pump Cover |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16258 | Gasket(FOR HEATER RETURN) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
