Toyota Corona

1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 3 illustrations

Illustrations

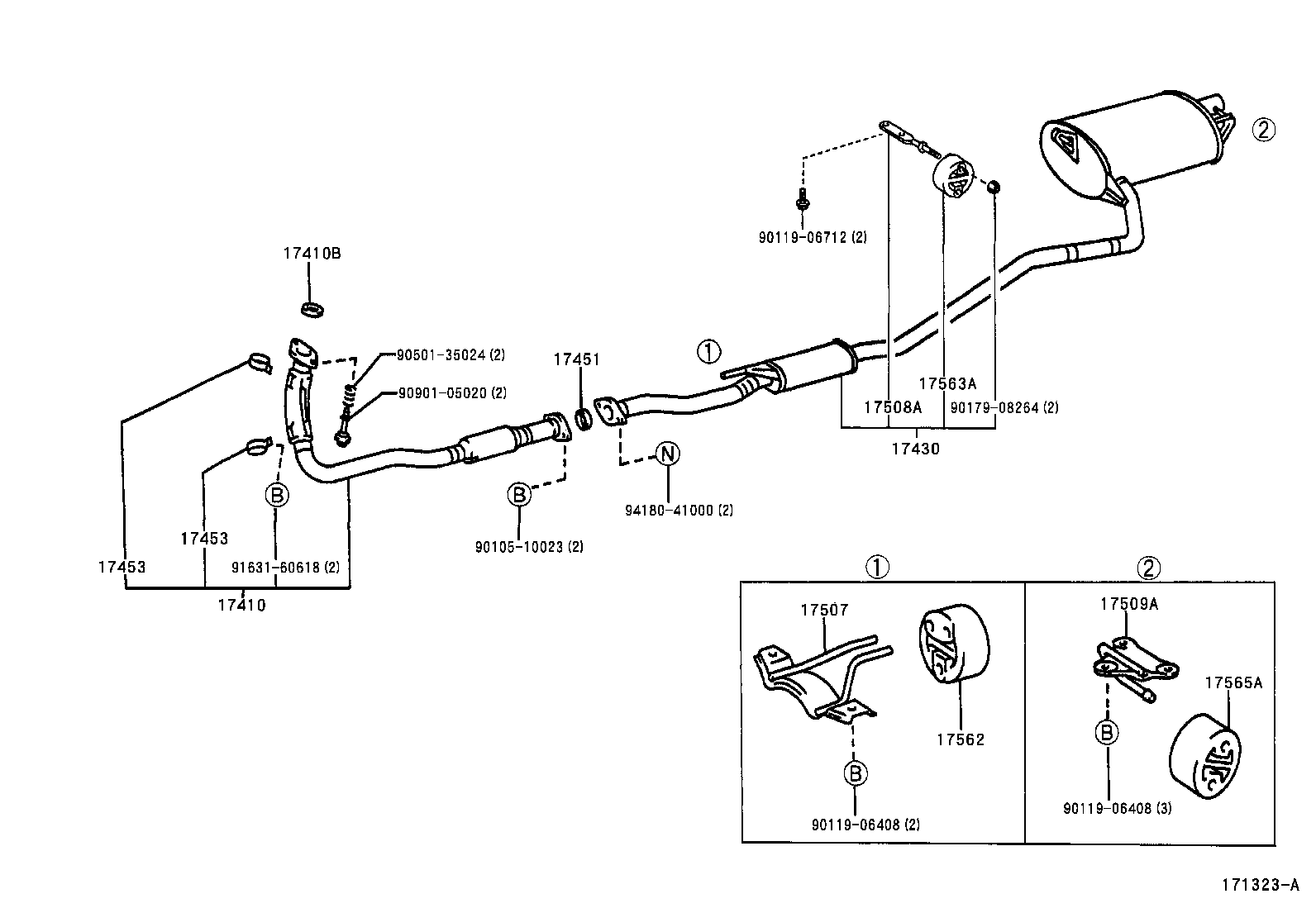

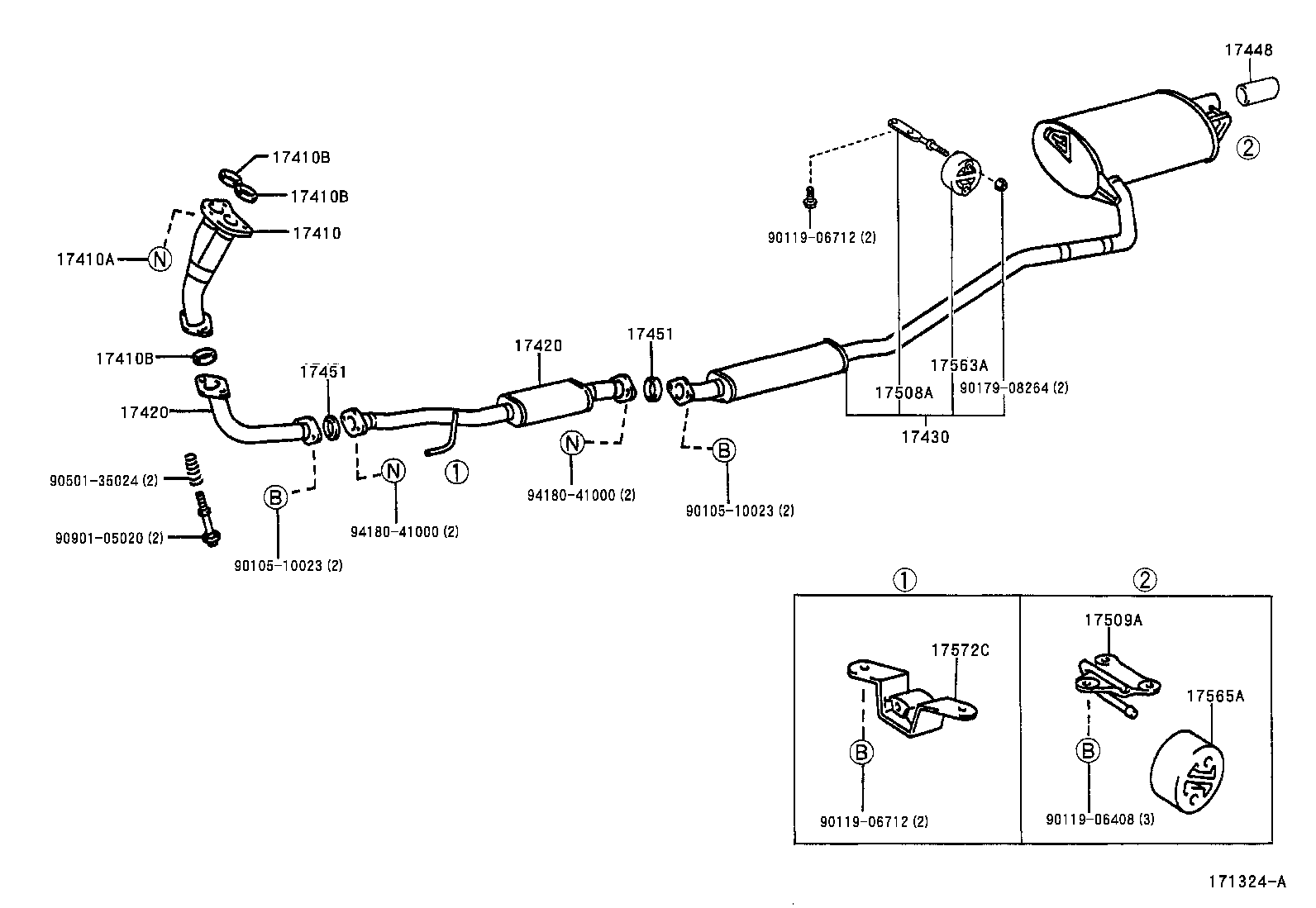

Figure 171322A 171322A 1997-10 → 2000-07 Figure 171323A 171323A 1997-10 → 2000-07 Figure 171324A 171324A 1997-10 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17453 Clamp, Exhaust Pipe, NO.2
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
