Toyota Corona

1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 3 illustrations

Illustrations

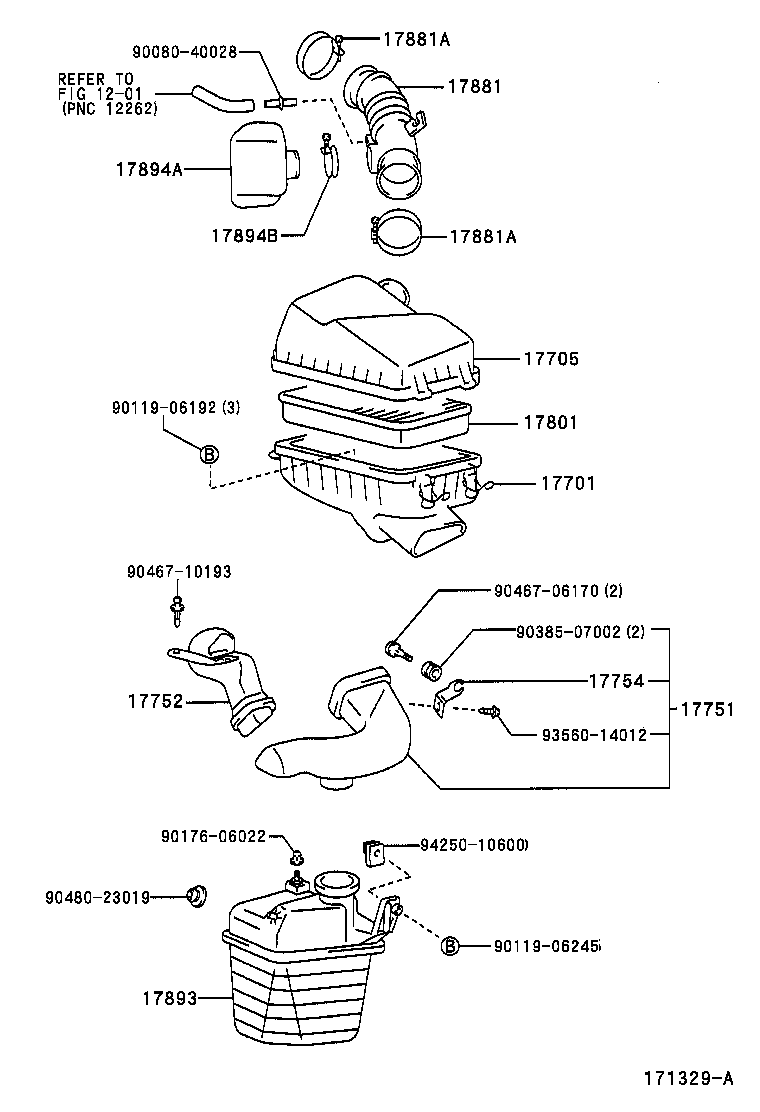

Figure 171307 171307 1997-10 → 2000-07 Figure 171351 171351 1997-10 → 2000-07 Figure 171329A 171329A 1997-10 → —

Part groups

PNCDescription
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17754 Stay, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
