Toyota Corona
1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General
Discontinued model
Data version 2003-10

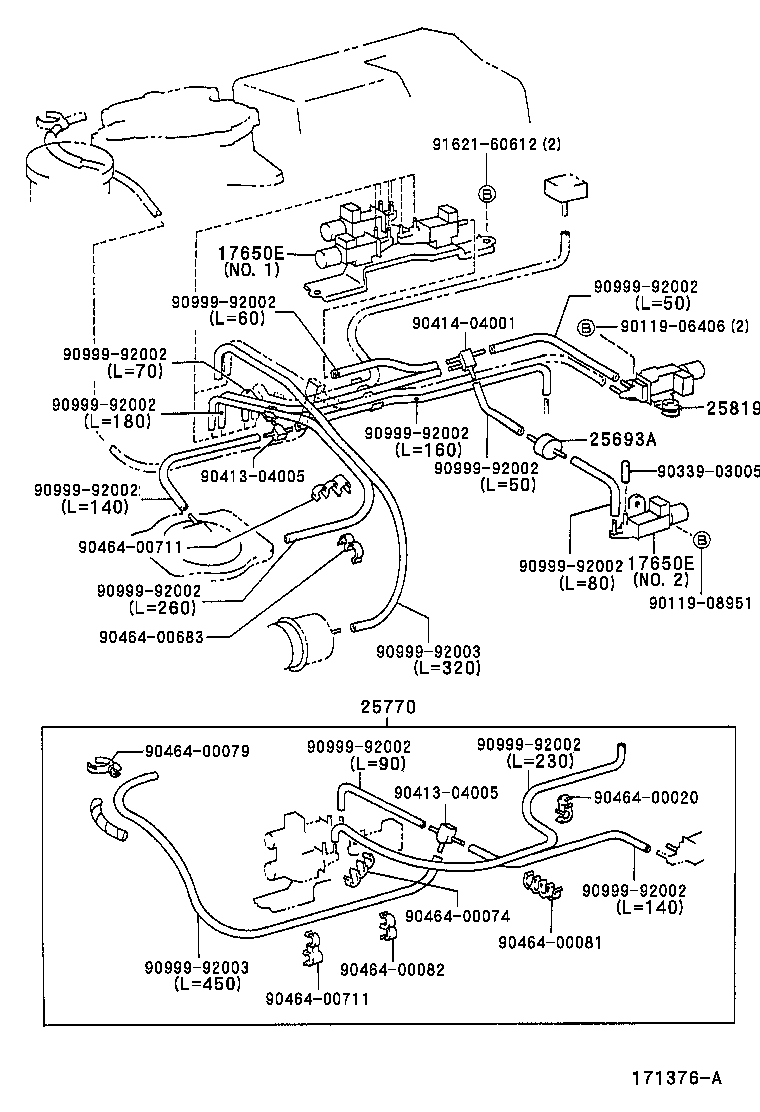

Vacuum Piping
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17302A | Clip, Hose |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17341P | Hose, Air |
| 17630 | Valve Assy, Air Control |
| 17650E | Valve, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23271C | Hose, Fuel |
| 25693A | Damper, Egr Vacuum Modulator |
| 25770 | Hose Assy, Vacuum Transmitting, NO.2 |
| 25819 | Valve Assy, Vacuum Regulating |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
