Toyota Corona

1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

14 part groups · 2 illustrations

Illustrations

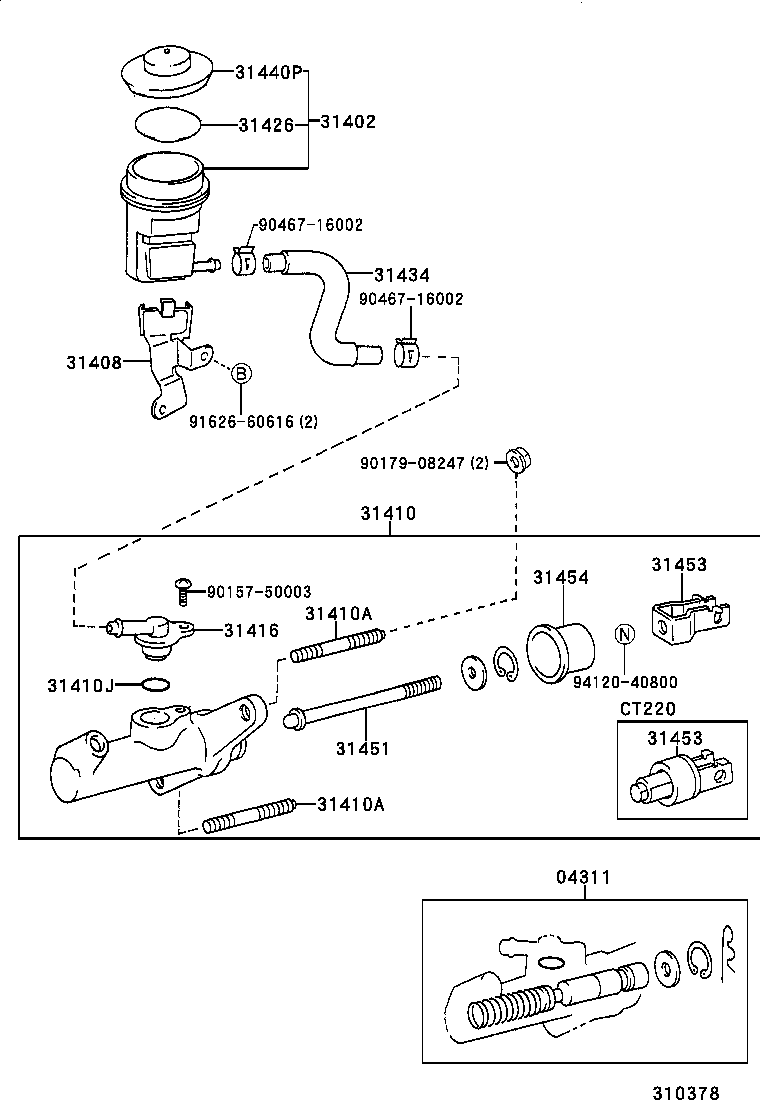

Figure 310377 310377 1997-10 → — Figure 310378 310378 1997-10 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31402 Reservoir Sub-assy, Clutch Master Cylinder
31408 Holder Sub-assy, Clutch Reservoir
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31410J Ring, O(FOR CLUTCH MASTER CYLINDER UNION)
31416 Union, Clutch Master Cylinder Inlet
31417 Grommet, Clutch Reservoir
31426 Float, Clutch Master Cylinder Reservoir
31434 Tube, Clutch Reservoir
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
