Toyota Corona
1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General
Discontinued model
Data version 2003-10

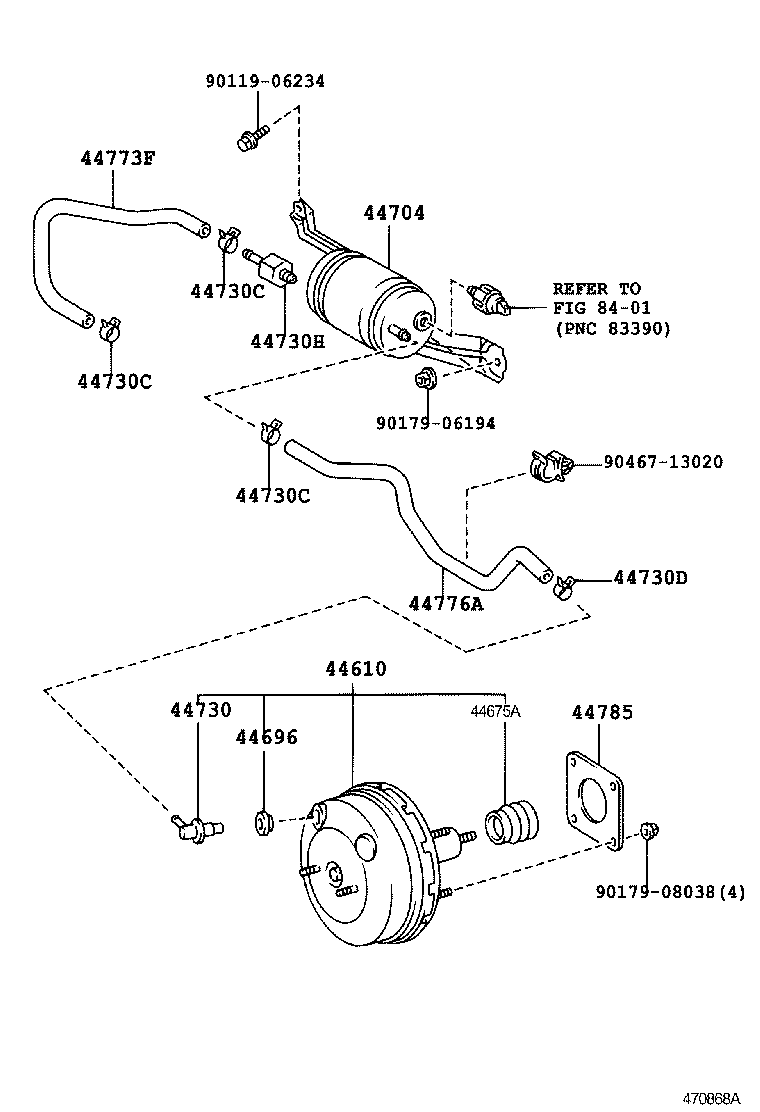

Brake Booster & Vacuum Tube
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44675A | Boot, Brake Booster |
| 44696 | Grommet, Check Valve |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44730D | Clip(FOR VACUUM HOSE, NO.1) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730H | Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR) |
| 44773F | Hose, Union TO Check Valve |
| 44774 | Hose, Union TO Connector Tube |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44778 | Hose, Connector TO Check Valve |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
