Toyota Corona
1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General
Discontinued model
Data version 2003-10

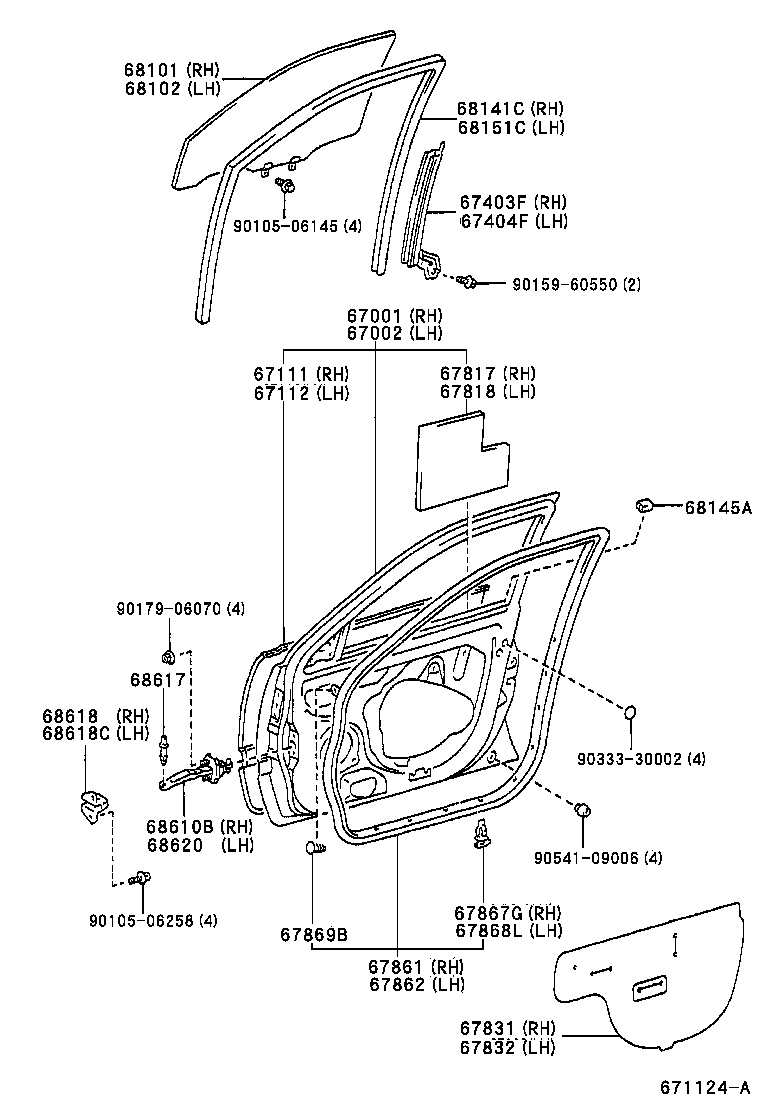

Front Door Panel & Glass
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491B | Garnish, Front Door Window Upper Bracket, RH |
| 67491F | Clip(FOR DOOR TRIM) |
| 67492B | Garnish, Front Door Window Upper Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67602A | Retainer, Door Trim, LH |
| 67627A | Bracket, Door Trim, NO.3 |
| 67637 | Plate, Front Door Trim |
| 67772A | Cap, Front Door Trim Retainer |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67817 | Packing, Front Door Protector, RH |
| 67818 | Packing, Front Door Protector, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68145A | Cushion, Front Door Window |
| 68151C | Run, Front Door Glass, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610B | Check Assy, Front Door, RH |
| 68617 | Pin, Front Door Check |
| 68618 | Bracket, Front Door Check Arm, RH |
| 68618C | Bracket, Front Door Check Arm, LH |
| 68620 | Check Assy, Front Door, LH |
| 74237C | Cap, Front Door Armrest Base |
| 74293 | Plate, Front Door Armrest, NO.1 |
| 74294A | Plate, Front Door Armrest, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
