Toyota Corona

1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

11 part groups · 3 illustrations

Illustrations

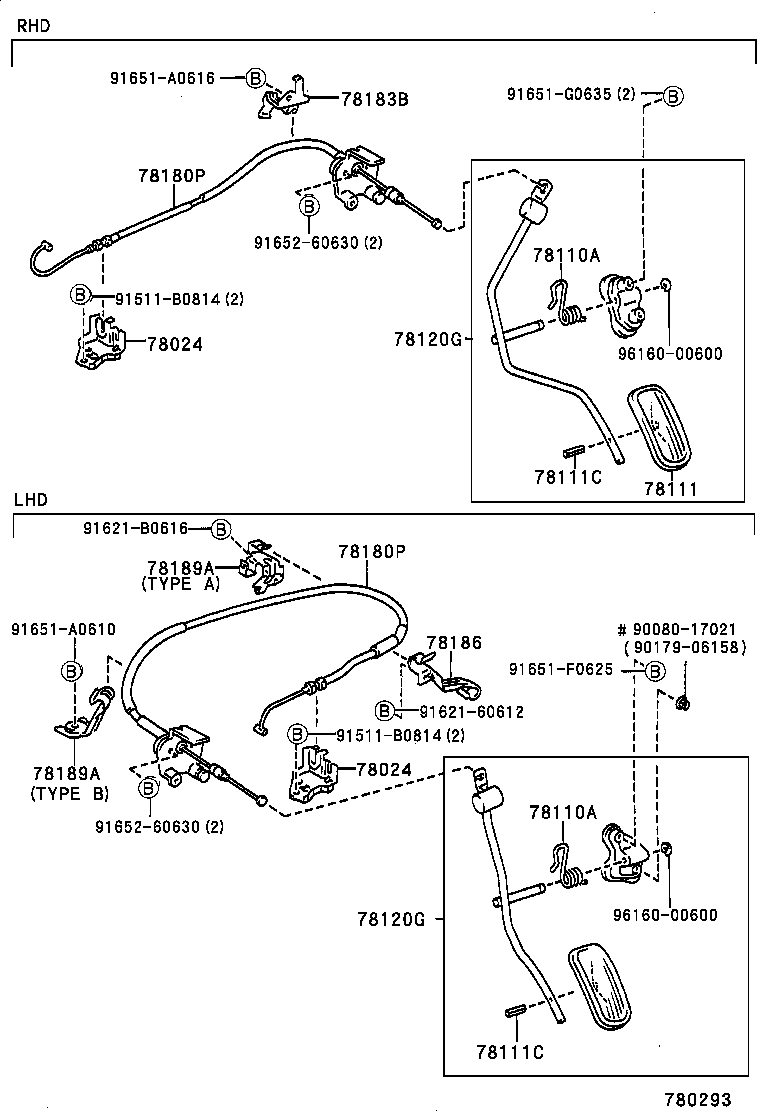

Figure 780287 780287 1997-10 → — Figure 780297 780297 1997-10 → — Figure 780293 780293 1997-10 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78189A Support, Accelerator Control Cable, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
